8. AL2-GSM-CAB
8.1 Introduction
The AL2-GSM-CAB can be used to connect
α
2 Series Controllers to a normal or GSM
modem. The AL2-GSM-CAB can transfer Short Message Service (SMS) data to a GSM
modem for transmission to mobile phones and mail addresses or can facilitate remote
monitoring functions and program transfers via normal modems. RS-232C communication to a
personal computer can also be accomplished if an adaptor or cable is used.
Further information can be found in the
α
2 Programming Manual and
α
Software Manual.
Note:
• This cable cannot be used for any other applications.
• This cable does not attach to the
α
Series Controller (Model: AL-**M*-*).
• Simultaneous communication through both ports of the
α
2 Series Controllers may result
in a damaged program or a malfunction in the controller.

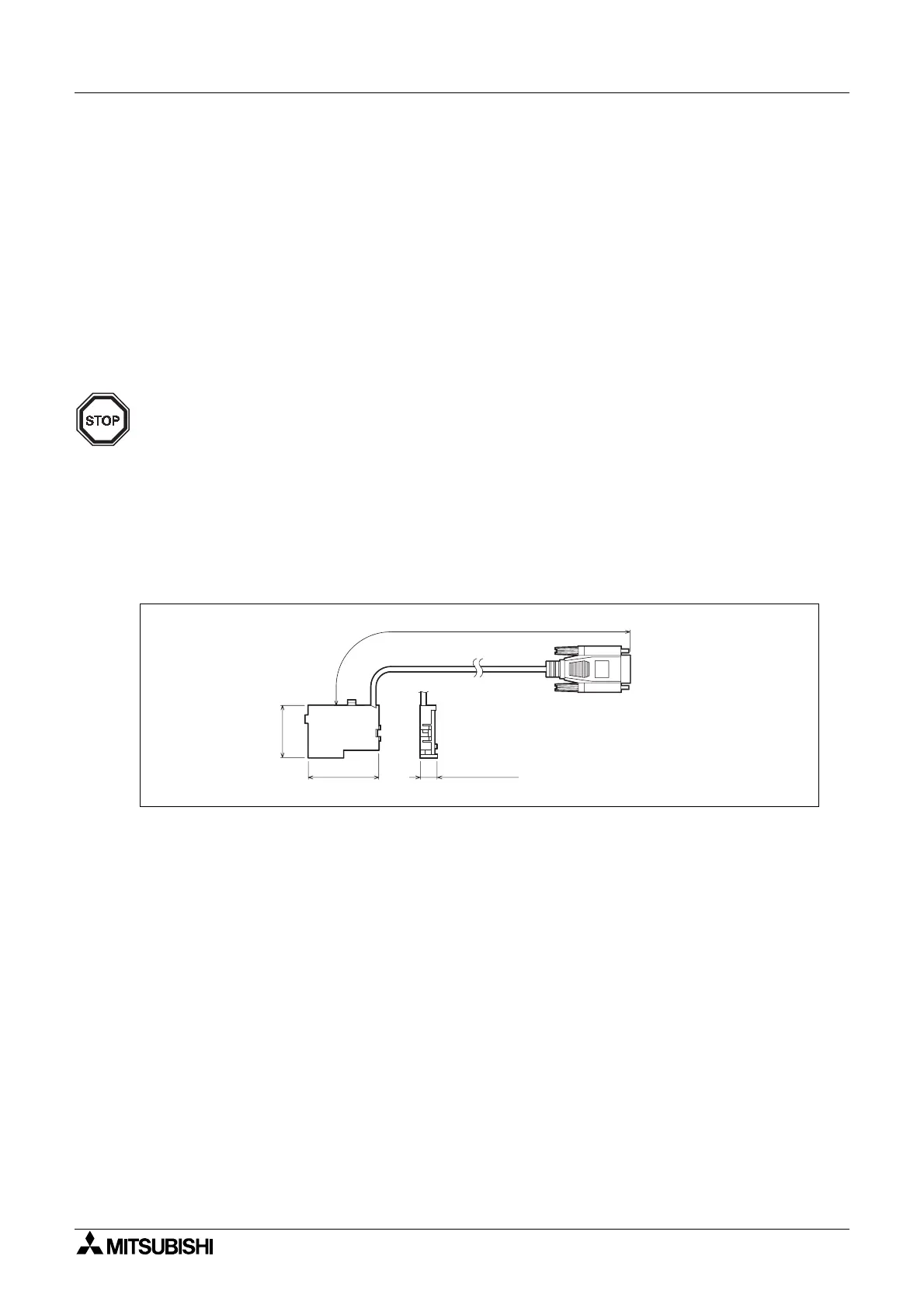

8.1.1 External Dimensions
Figure 8.1: External Dimensions Dimensions: mm (inches)
1500(4'11")
46.3
(1.82")
34.2
(1.35")
10.2(0.4")
α
2seriesside
modem side
(9-pin D-Sub male)
To Next Page
