Mitsubishi DX-TL308E User Manual

22
3
1
8
4
5
2
6
7
1
1
19-01-2008 Sat
15:00:45
N 69%
REM A 29%
Recorder title
Camera title
Please push the help button
ARCHIVECOPY[B]SYNC[SBM08][SBM08]
Alarm interrupt
HDD (EMR)
CIF • L3
N

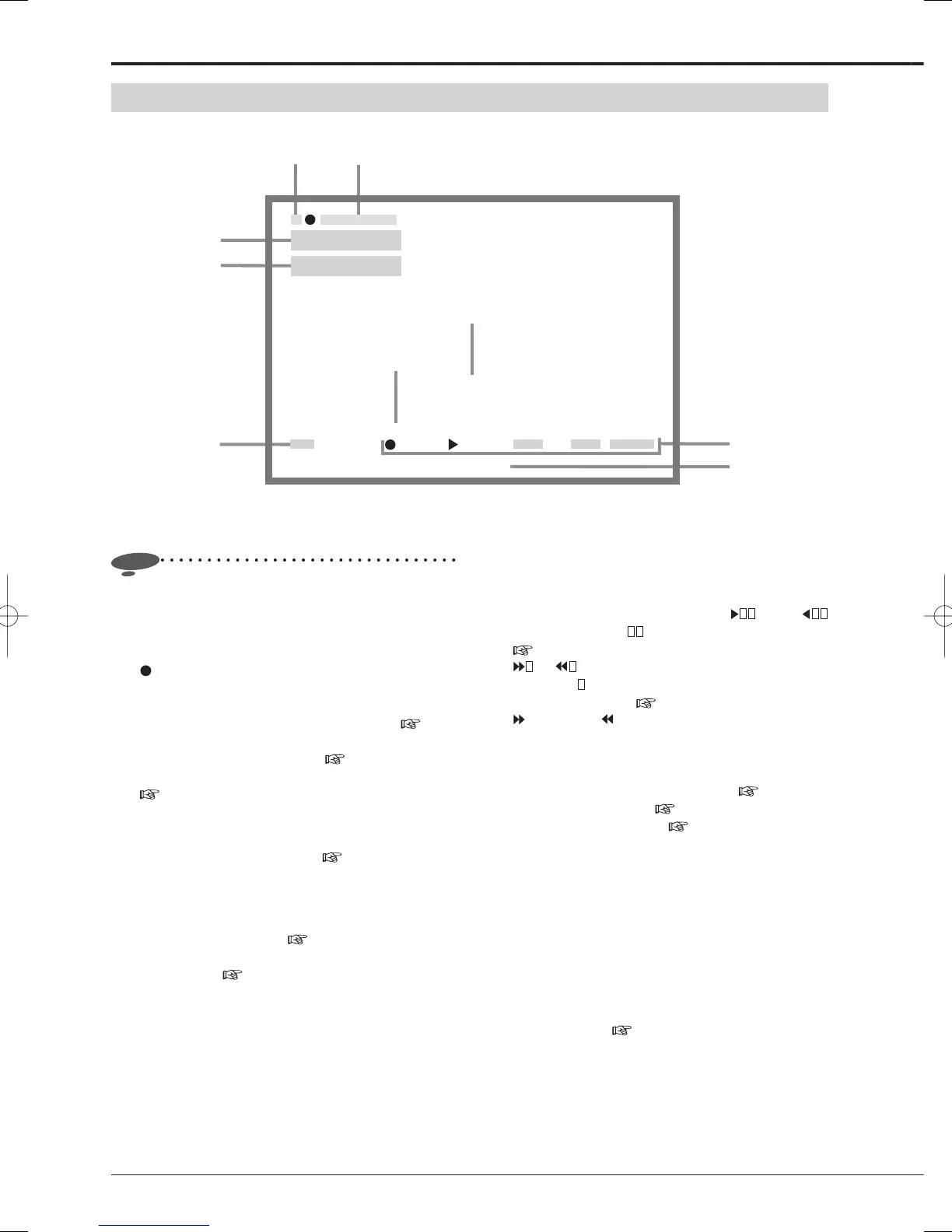

Screen display
Notice
• The above fi gure is an example for explanation. Some
items may not be displayed simultaneously.
1 Camera number/Camera title
A camera number or camera title is displayed.
is displayed on the right side of the camera number
during recording. (When you select to hide the camera
number, it is not displayed.)
For setting the items to be displayed, see
page
103.
For setting the camera title, see
page 103.
For setting the camera number display position, see
page 103.
2 Alarm input prohibition
When alarm input is prohibited, this indication appears.
For alarm input prohibition, see
page 61.
3 Clock
The present time is displayed. The recording time is
displayed during playback.
For setting the clock, see
page 99.
For setting the display position and display mode of
the clock, see
page 102.
4 Playback information
The playback device, picture size, and picture quality
are displayed during playback.
When the playback rate is changed,
FPS or
FPS is displayed. ( shows the number of frames.)
Page 73
or is displayed during rewind or fast forward
playback. (
shows the number indicating the level of
the playback speed.)
Page 73
Hi-speed or Hi-speed is displayed during super
high-speed playback.
The displayed items are different in the single screen
display mode and the split screen display mode.
For switching the playback device, see
page 66.
For the picture size, see
page 51.
For the picture quality, see
page 52.
5 Remaining capacity
The remaining capacity of the selected device is dis-
played. When the remaining capacity of the registered
device decreases to the predetermined level, "REM" is
displayed.
N ..... HDD (Normal)
A ..... HDD (Alarm)
E ..... HDD (Emergency)
AR ... HDD (Archive)
For setting the device to be displayed and the remain-
ing capacity, see
page 101.
Major operations and their functions (continued)
