82

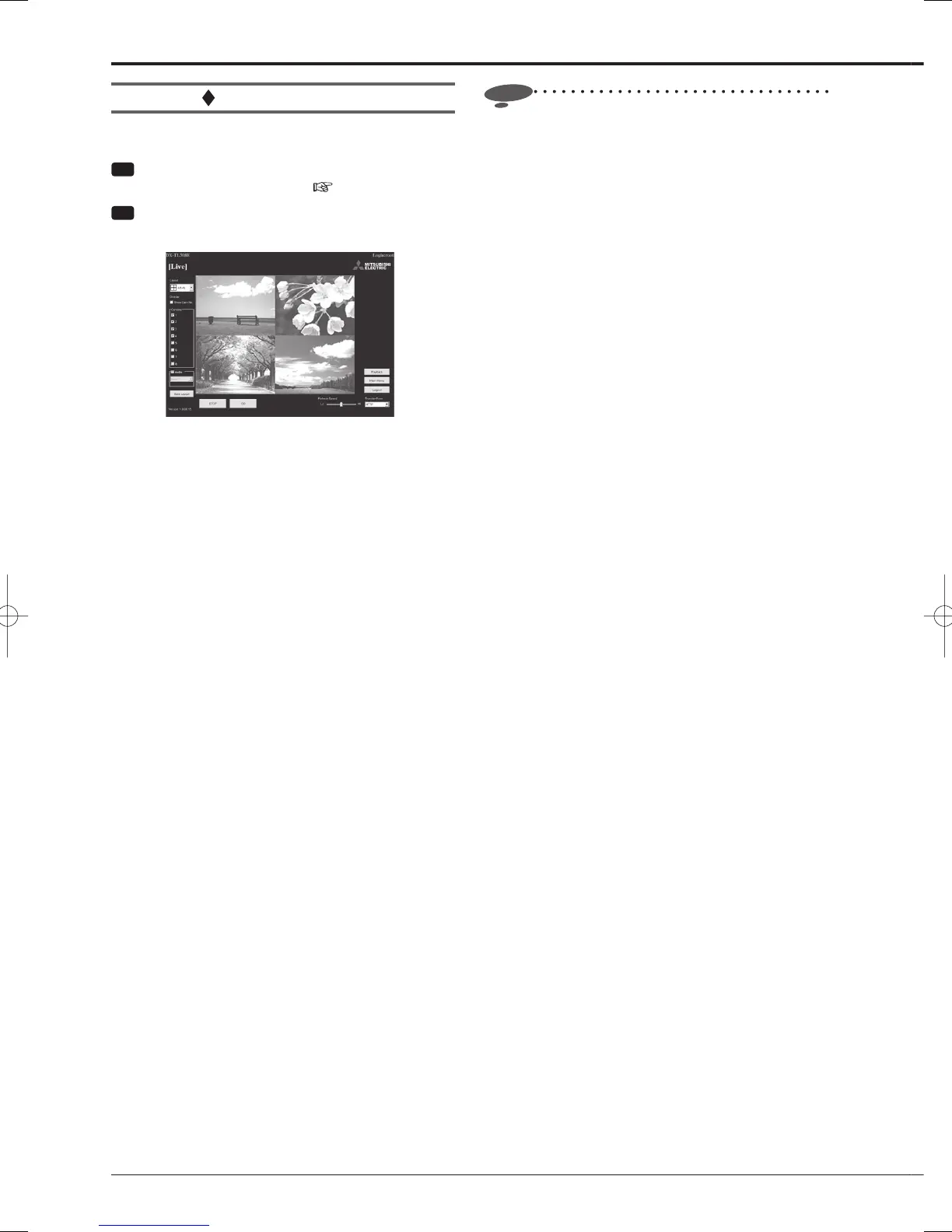

Viewing live images
You can load live images and display them on the PC
monitor.
Step
1 Display the [Main Menu] screen according to
steps 1 to 3 of "Login" on
page 81.
Step
2 Select [Live Monitoring].
•
The [Live] screen appears.
Layout ............................You can select the display pattern.
Display ...........................You can select whether or not to
display the camera numbers.
Camera ..........................You can select cameras to display
images.
Audio .............................You can select whether or not to
output audio.
Save Layout ..................You can save the screen layout
pattern in the PC.
In addition to the layout pattern,
following information is also saved.
•
Setting for displaying camera
numbers
•
Audio output
•
Image refresh rate
•
Image transfer system
STOP ..............................You can stop loading images.
GO ..................................
You can start (resume) loading
images.
Refresh Speed ..............You can select the image loading
speed from 5 levels from [Lo] (low)
to [Hi] (high). (Default: Middle)
Transfer Form ...............You can select the image transfer
system. When selecting [HTTP],
you can load images even when
firewalls are provided. When
selecting [RTP], you can load
images at a high speed. In this
case, however, a setting of router
or similar device may be required.
RTP receiving port is 45001.
Playback ........................The [Playback] screen appears.
Main Menu .....................The [Main Menu] screen appears.
Logout ...........................You can log out.
Notice
• <DX-TL308E> When the total recording FPS is larger
than the following values, images from cameras not
recorded are not refreshed.
When the picture size is set to [4CIF] .....25FPS
When the picture size is set to [2CIF] .....50FPS
When the picture size is set to [CIF]
.........100FPS
<DX-TL304E> Images from cameras not recorded are
not refreshed independently of the FPS settings.
• When you set [Refresh Speed] to [Hi] (high), the
PC may not operate correctly depending on its
performance specifi cations. Adjust the image refresh
rate for proper operation of the PC.
• Depending on the network capacity or the operation
load, the refresh rate may not be increased.
• The transfer rate during communication varies
depending on the communication environment and the
operation load on the recorder.
• When the image transfer form is [RTP], you cannot
adjust the refresh speed.
• When the image transfer form is [HTTP], audio is not
output.
• Installing ActiveX is required to view live images or
to play recorded images. To install, copy DXV60.exe
contained in the supplied CD to the PC and double-
click on it. After completing the installation of ActiveX,
delete the copied DXV60.exe from the PC.
• When you view live images while the recorder is in
recording at high picture quality or when you play
back images recorded at high picture quality, if
images change in a large amount between frames,
the recorder may not be able to send all the images to
the PC because of an excessive amount of data. To
view or play such data on the PC, load the data fi rst by
copying them to the media or by the section download
function via communication.
• Live/Playback images may not be displayed depending
on the operation environment of the PC (in the case of
a non-SSE-supporting PC).
• On the PC, you may not be able to view all the images
sent from the recorder.
Using the communication functions (continued)
