Chapter 4 Option and Peripheral Devices
4–2
DANGER
Always wait at least 10 minutes after turning the power OFF, and check the
voltage with a tester, etc., before connecting the option or peripheral device.
Failure to observe this could lead to electric shocks.
CAUTION
Use the designated peripheral device and options. Failure to observe this
could lead to faults or fires.
4-1 Dedicated options
4-1-1 I/F unit
Name Intelligent servomotor I/F unit
Type HS-IF-6
Maximum number of connected
axes
Maximum 6 intelligent servomotor axes
(The total number of connected axes follows the NC unit specifications)
Input power voltage AC200 to 230V 50/60Hz
Functions
Serial bus interface between NC and intelligent servomotor
200VAC branching to main circuit and control power circuit
Miscellaneous Surge absorber, radio noise filter, internal 5V power
Ambient temperature 0°C to +55°C (with no freezing)
Ambient humidity 90% RH or less (with no dew condensation)
Storage temperature –20°C to +65°C (with no freezing)
Storage humidity 90% RH or less (with no dew condensation)
Atmosphere Indoors (not subject to direct sunlight). No corrosive gases, flammable gases, oil mist or dust
Altitude 1000m or below sea level
Environ-me
nt
conditions
Vibration 5.9m/sec
2
or less
Outline dimensions H: 300 × W: 80 × D: 80 (refer to following drawings)

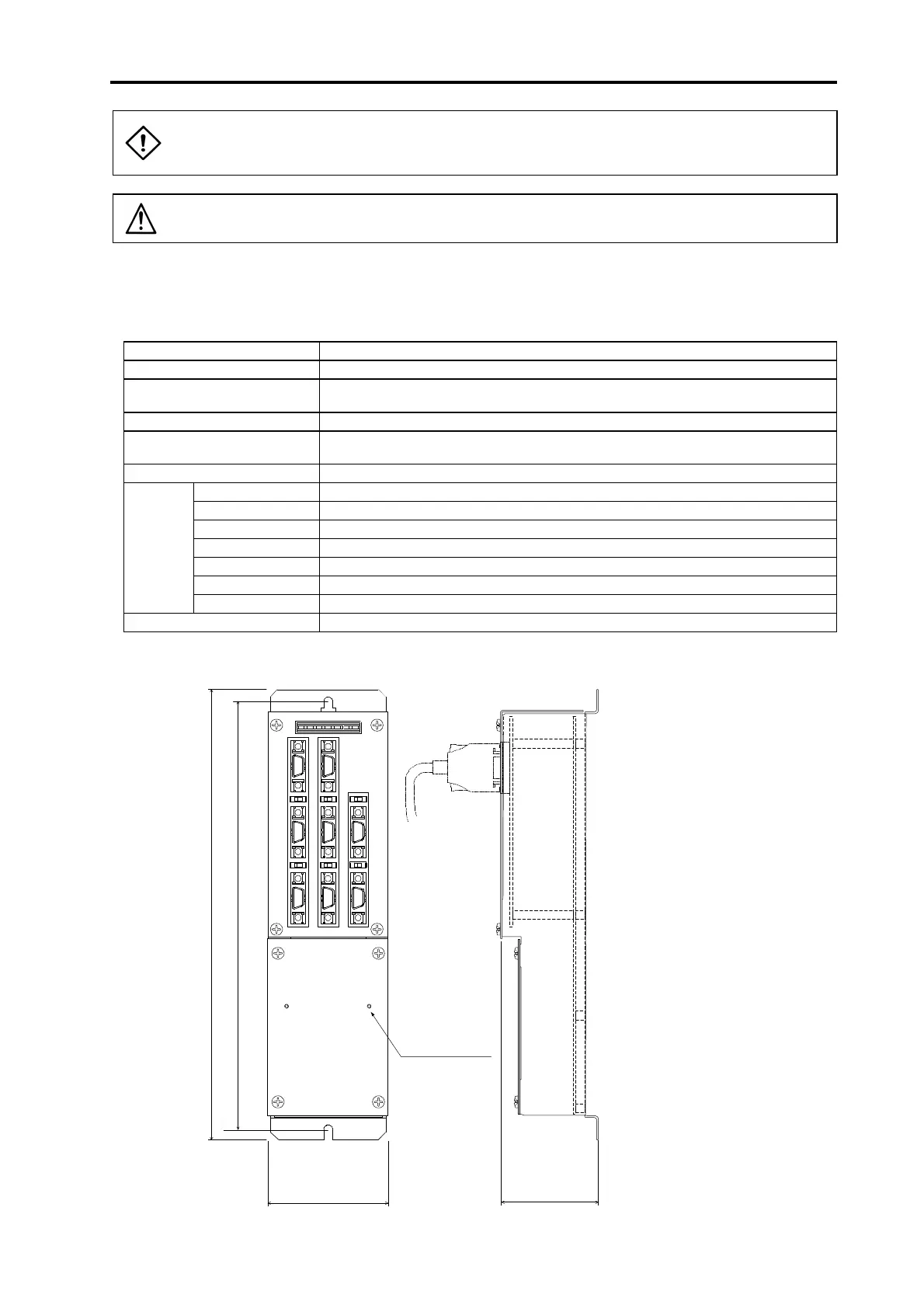

(1) Outline drawing
80
300
285
80
For grounding
plate installation
2-M3 screw
To Next Page
