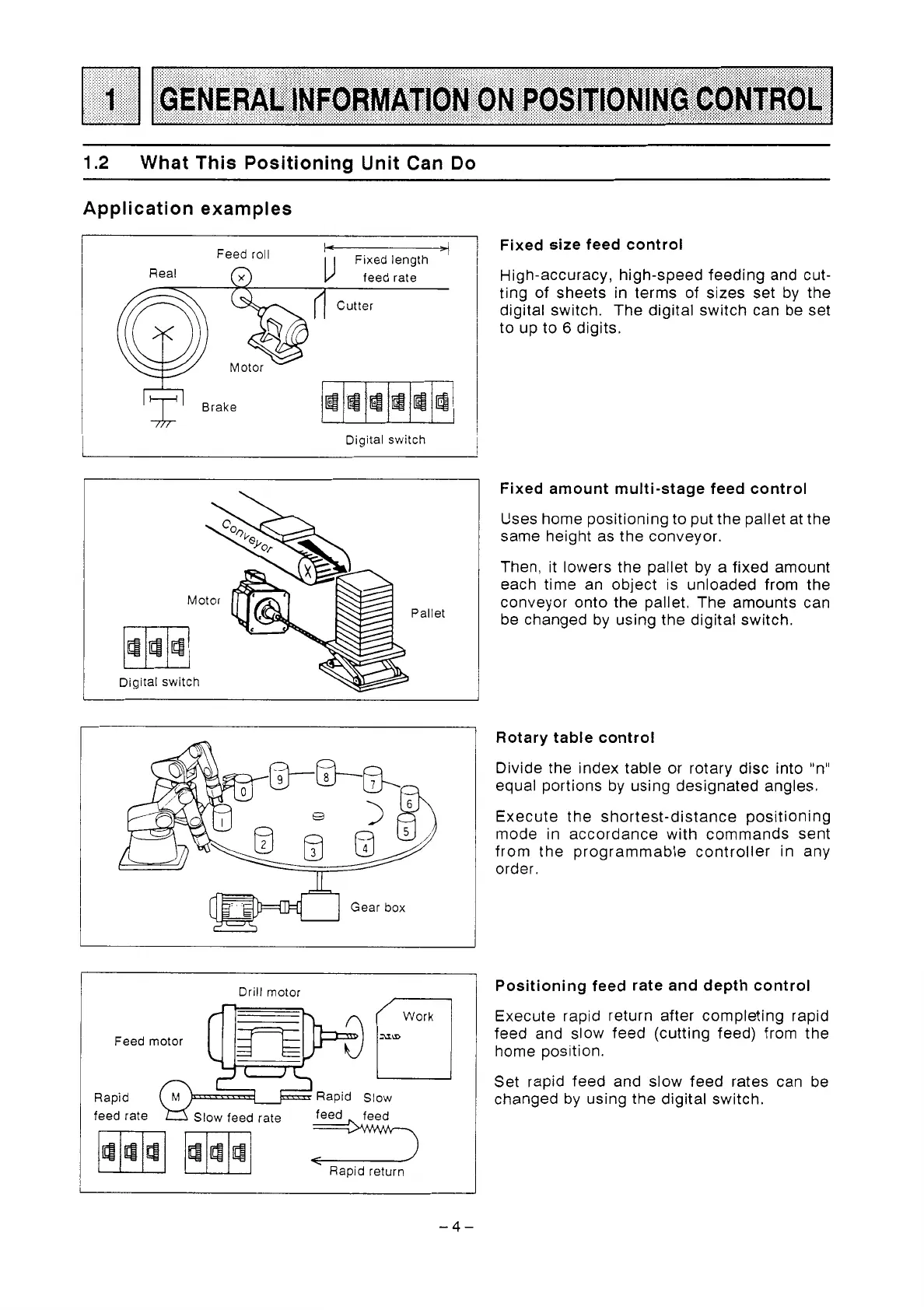

1.2
What This Positioning Unit Can
Do
Application examples
Feed roll
Real
Brake
-
Fixed length
1
feed rate
fl
Cutter
1
Digital switch
I
L
A
Gear
box
Fixed size feed control
High-accuracy, high-speed feeding and cut-
ting of sheets in terms of sizes set by the
digital switch. The digital switch can be set
to up to
6
digits.
Fixed amount multi-stage feed control
Uses home positioning to put the pallet at the
same height as the conveyor.
Then, it lowers the pallet by a fixed amount
each time an object is unloaded from the
conveyor
onto
the pallet. The amounts can
be changed by using the digital switch.
allet
Rotary table control
Divide the index table or rotary disc into
"n"
equal portions by using designated angles.
Execute the shortest-distance positioning
mode in accordance with commands sent
from the programmable controller in any
order.
L
Drill
motor
,
I
Feed
motor
A
Rapid
feed
rate
Positioning feed rate and depth control
Execute rapid return after completing rapid
feed and slow feed (cutting feed) from the
home position.
Set rapid feed and slow feed rates can be
changed by using the digital switch.
-4-
