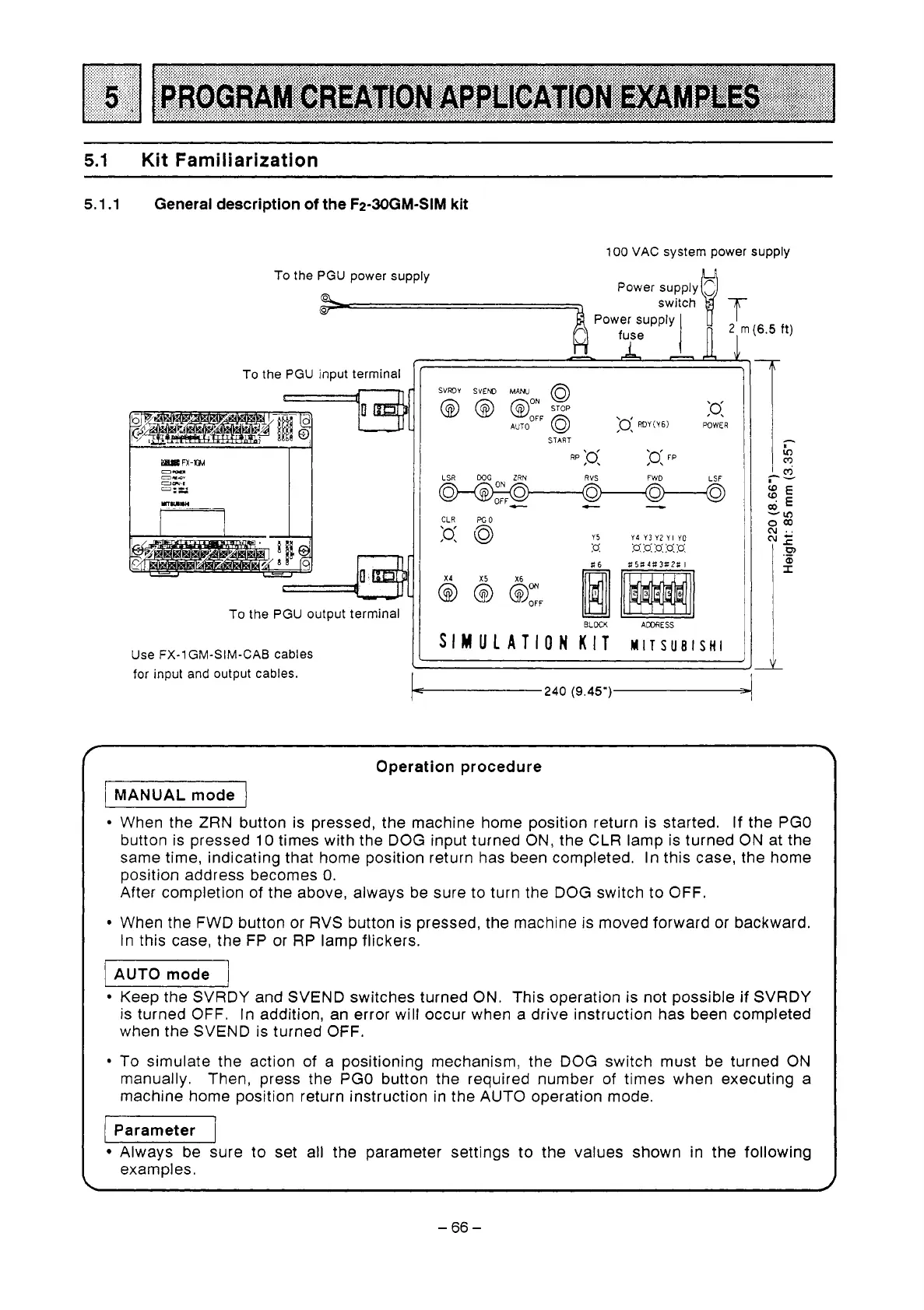

5.1
Kit Familiarization
5.1.1
General description
of
the F2-30GM-SIM kit
100 VAC system power supply
To
the
PGU power supply
0%
0
I
To
the PGU input terminal
I
To
the PGU output terminal
Use FX-1GM-SIM-CAB cables
for
input
and output cables.
LSR
DOC
ZRN
RVS
FWD
LSF
BLOCK
ADDRESS
SIMULATIOH
KIT
MusuusHl
k-240
(9.45")-4
f
Operation procedure
MANUAL mode
When the ZRN button is pressed, the machine home position return is started. If the PGO
button is pressed
10
times with the
DOG
input turned ON, the
CLR
lamp is turned ON at the
same time, indicating that home position return has been completed. In this case, the home
position address becomes
0.
After completion
of
the above, always be sure to turn the DOG switch to OFF.
When the FWD button
or
RVS
button
is
pressed, the machine is moved forward or backward.
In
this case, the FP or
RP
lamp flickers.
I
AUTO
mode
Keep the SVRDY and SVEND switches turned ON. This operation is not possible if SVRDY
is
turned
OFF.
In
addition, an error will occur when a drive instruction has been completed
when the SVEND is turned OFF.
To
simulate the action of a positioning mechanism, the DOG switch must be turned ON
manually. Then, press the PGO button the required number
of
times when executing a
machine home position return instruction in the AUTO operation mode.
~
