Mitsubishi MELSEC-F FX-1GM User Manual

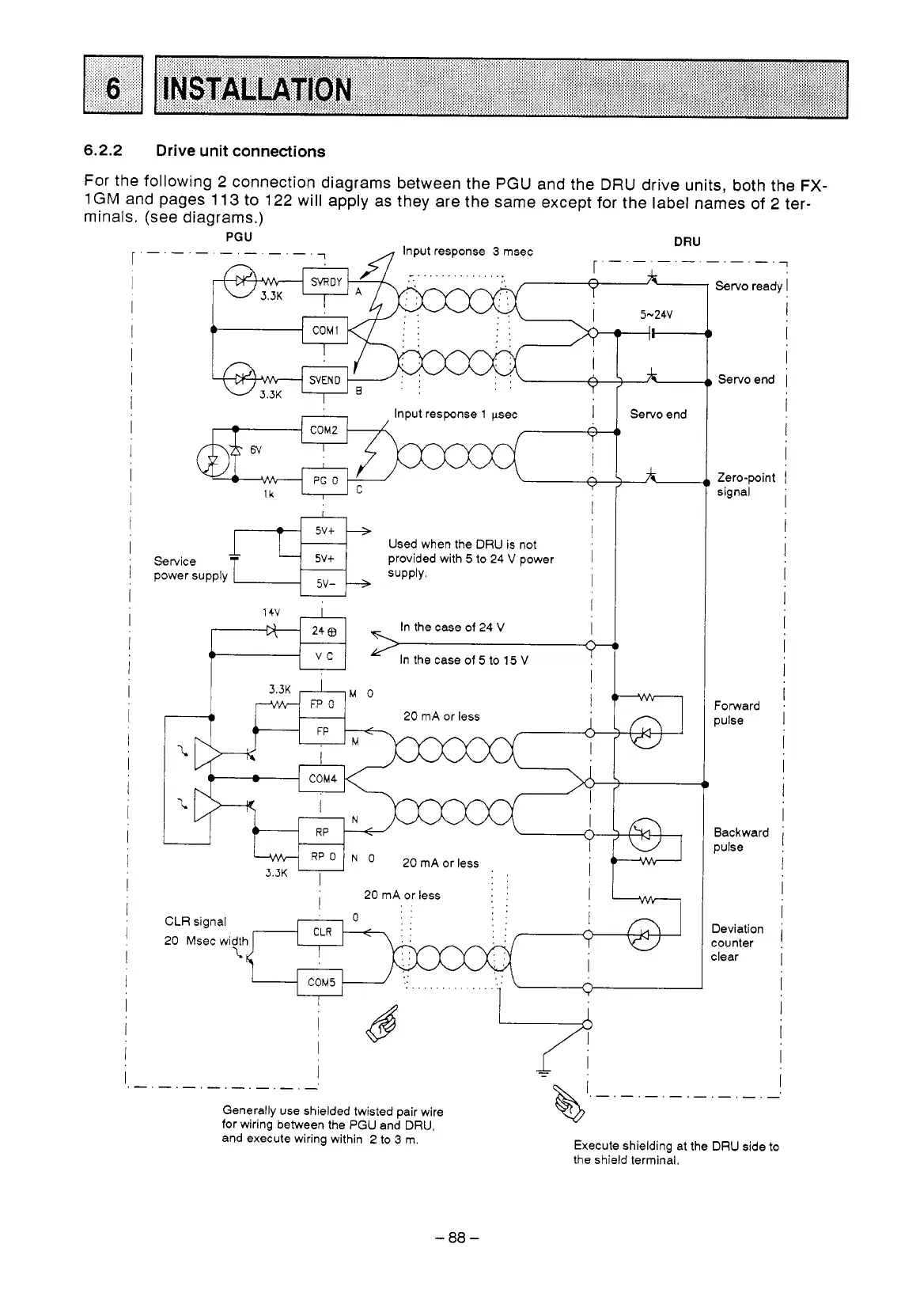

6.2.2 Drive unit connections
For the following 2 connection diagrams between the PGU and the DRU drive units, both the FX-
1 GM and pages 11 3 to 122 will apply as they are the same except for the label names of 2 ter-
minals. (see diagrams.)
PGU
Input response 3 msec
DRU
Used when the DRU is not
I
I I
I
I
Generally use shielded twisted pair wire
for wiring between the PGU and DRU,
and execute wiring within 2 to 3 m.
-88-
Execute shielding at the DRU side to
the shield terminal.
