4 - 7
MELSEC-Q
4 INSTALLATION, WIRING AND MAINTENANCE OF THE PRODUCT
4.2 Installation
4.2.1 Precautions for installation
The precautions for installing the QD75 are given below. Refer to this section as well
as "4.1.3 Handling precautions" when carrying out the work.
[1] Precautions for SSCNET cable wiring

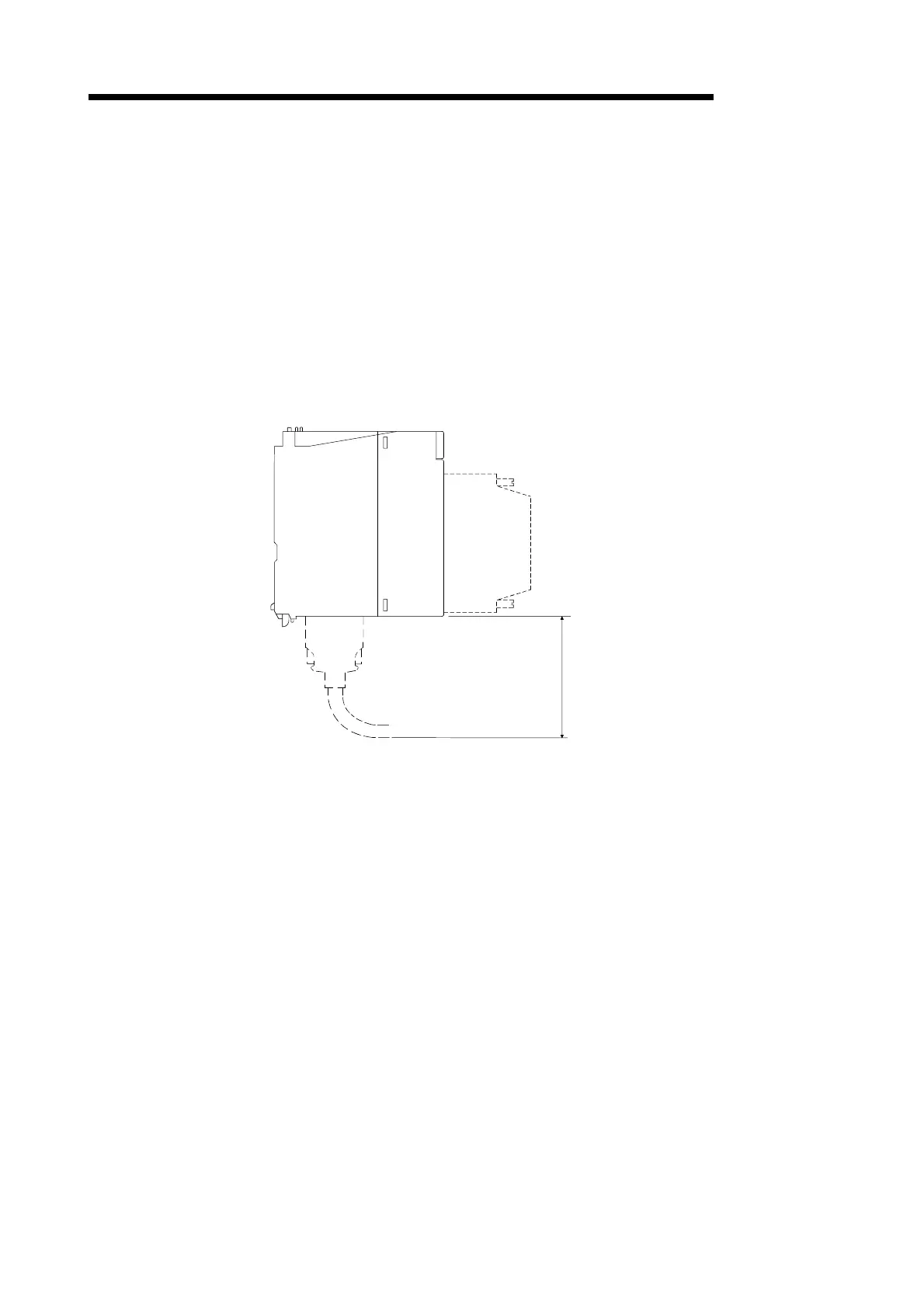

If the duct is below the bottom of the module, leave sufficient clearance to
eliminate effects on the SSCNET cable, limit the space height to 70 mm (2.76
inch) MIN.
70(2.76)
Unit: mm(inch)
