APPENDICES

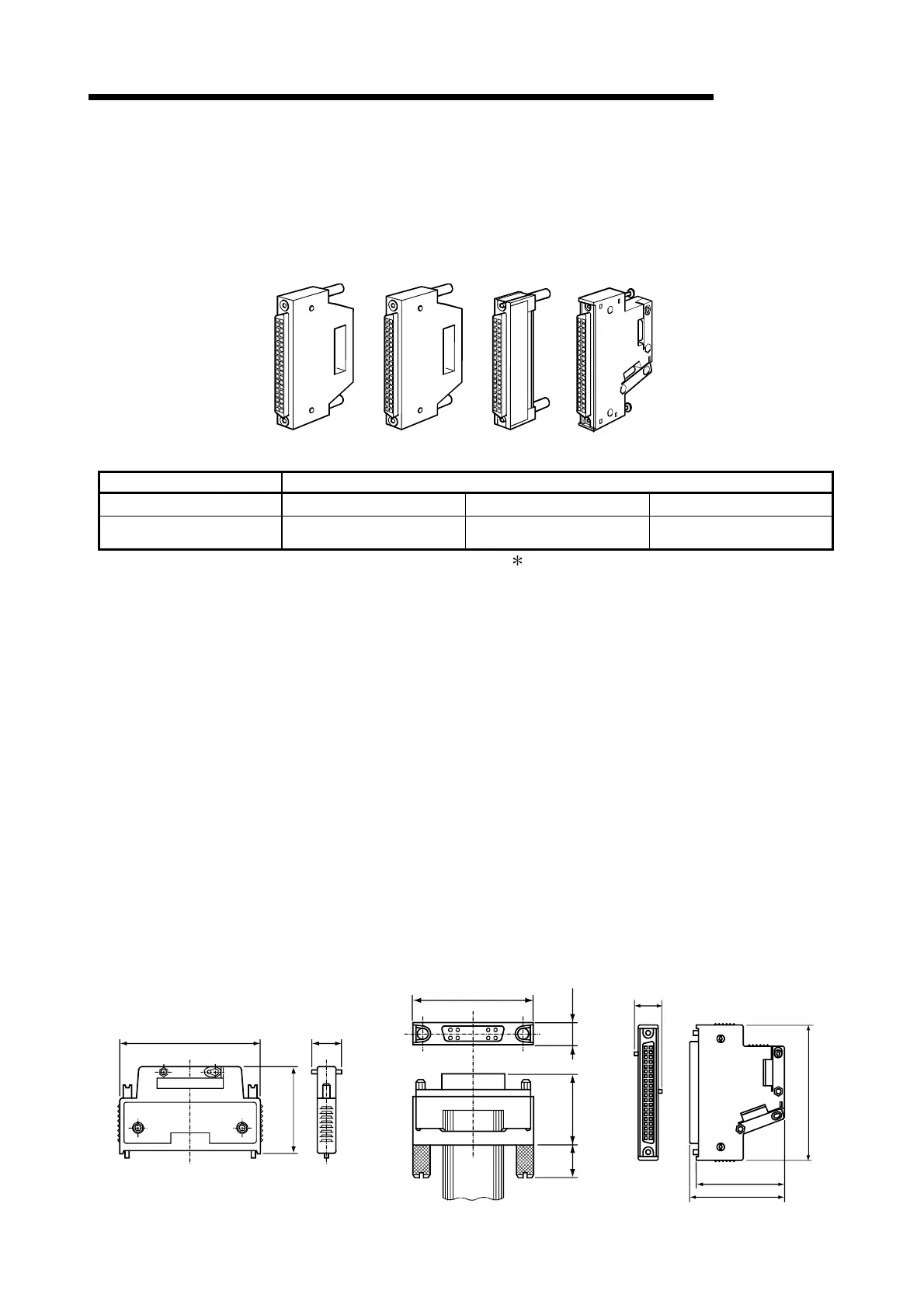

Appendix 5 Connection with external device connector
Mounted onto an external device connector of the QD75 and used for wiring an
external device. The "external device connector" includes the following 4 types.
(1) Appearance
A6CON1 A6CON2 A6CON3 A6CON4
(2) Specifications of the connector
Part name Specification
Applicable connector A6CON1, A6CON4 A6CON2 A6CON3
Applicable wire size
0.3 mm
2
AWG#24 to 28
AWG#28 (twisted)/
AWG#30 (single wire)
: The external device connector has been prepared.
• A6CON2 Crimp-contact tool • A6CON3 Pressure-displacement tool
Model name: FCN-363T-T005/H Model name: FCN-367T-T012/H (locator plate)
: FCN-707T-T001/H (cable cutter)
: FCN-707T-T101/H (hand press)
• Supplier's offices:
FUJITSU TAKAMISAWA AMERICA, INC 250E Caribbean Drive Sunnyvale, CA 94089 U.S.A
Tel: (1-408) 745-4900
FUJITSU TAKAMISAWA EUROPE B.V. Jupiterstaat 13-15, our 2132 Hoofddorp, The Netherland
Tel: (31) 23-5560910
FUJITSU TAKAMISAWA EUROPE B.V. Schatzbogen 86 D-81829 Munchen Germany
Zweiniederlassung Deutschland Tel: (49) 89-42742320
FUJITSU TAKAMISAWA EUROPE (U K) Network House, Morres Drive, Maidenhead, Berkshire,
SL6 4FJ United Kingdom
Tel: (44) 1628-504600
FUJITSU TAKAMISAWA EUROPE B.V. 127 Chemin Des Bassins, Europarc, Cleteril 94035
Cleterll 94035 France
Tel: (33) 145139940
FUJITSU TAKAMISAWA ASIA PACIFIC 102E Pasir Panjang Road, # 04-01 Citilink
PTE LIMITED Warehouse Complex, Singapore 118529
Tel: (65) 375-8560
FUJITSU TAKAMISAWA HONG KONG Suite 913 Ocean Centre, 5 Canton Road. TST,
Co., LTD Kowloon, Hong Kong
Tel: (852) 2881-8495
(3) External dimension drawing
A6CON1/A6CON2 A6CON3 A6CON4
72.72(2.87)
14(0.55) or less
46(1.81)
69.48(2.74)
8.25
(0.33)
22.5
(0.89)
10
(0.39)
14(0.55) or less
71.8(2.82)
47(1.85)
50.8(2.00)
Unit: mm (inch
)
