APPENDICES

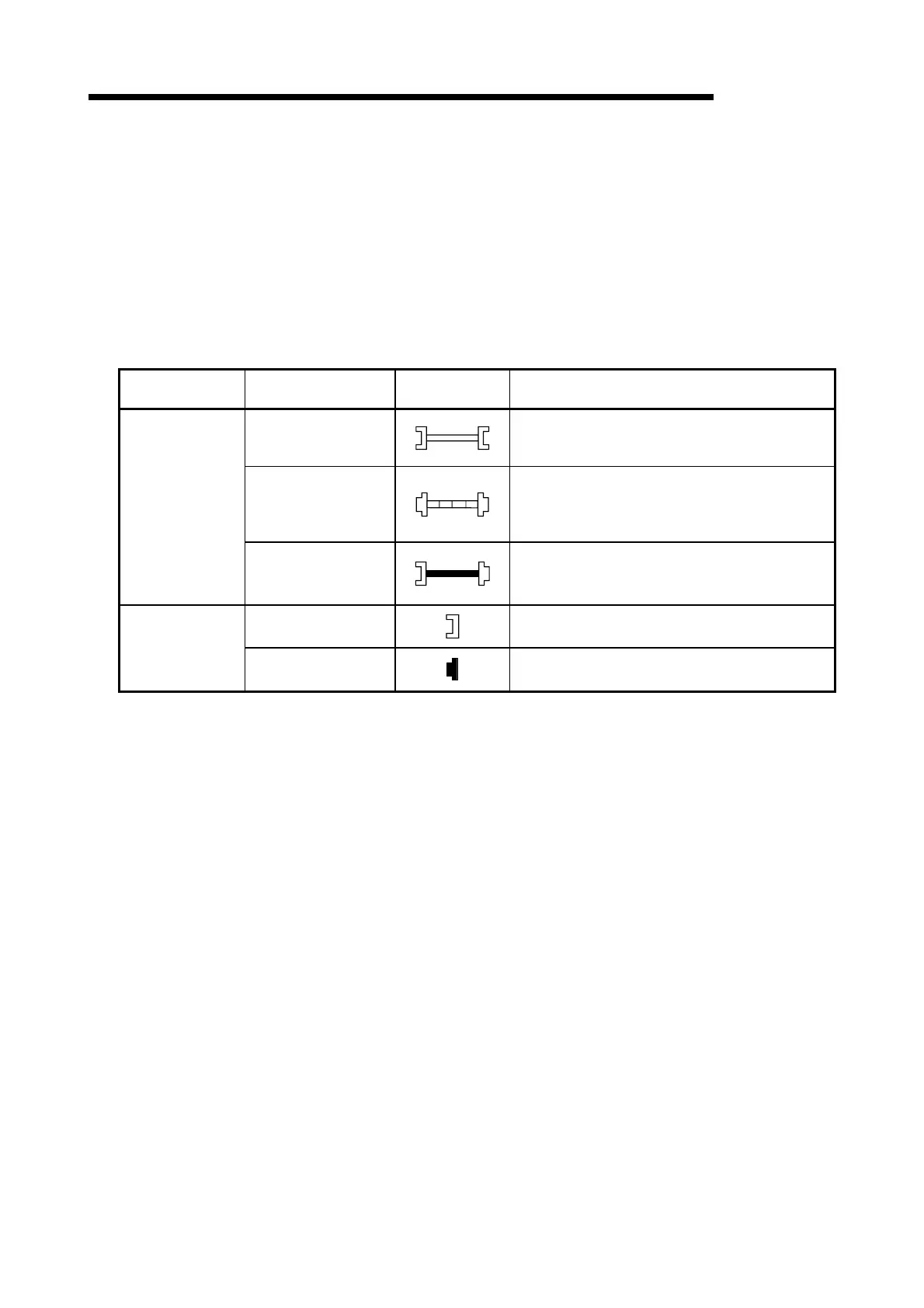

Appendix 4 Connection with servo amplifiers
Appendix 4.1 Connection of SSCNET cables
As the SSCNET cables or termination connector is different depending on the servo
amplifiers, refer to the following connection example.
The SSCNET cables and termination connector used in the connection example are
any of the models shown in the following table.
When absolute position detection control is executed, installed battery (MR-BAT/
A6BAT) to servo amplifier.
Part name Model name
Depiction in
connection example
Description
MR-HBUS

M
0.5m (1.64ft.), 1m (3.28ft.),
5m (16.4ft.)
• Connection between (MR-H-BN/MR-H-BN4) and (MR-H-
BN/ MR-H-BN4).
MR-J2HBUS

M
0.5m (1.64ft.), 1m (3.28ft.),
5m (16.4ft.)
• Connection between QD75M

and (MR-J2-B/MR-J2S-B/
MR-J2-Jr/MR-J2M-B).
• Connection between (MR-J2-B/MR-J2S-B/ MR-J2-Jr/MR-
J2M-B) and (MR-J2-B/MR-J2S-B/ MR-J2-Jr/MR-J2M-B).
SSCNET cable
MR-J2HBUS

M-A
0.5m (1.64ft.), 1m (3.28ft.),
5m (16.4ft.)
• Connection between (QD75M

/MR-J2-B/MR-J2S-B/ MR-
J2-Jr/MR-J2M-B) and (MR-H-BN/MR-H-BN4).
MR-TM
• Connected to the last servo amplifier (MR-H-BN/MR-H-
BN4) by SSCNET.
Termination connector
MR-A-TM
• Connected to the last servo amplifier (MR-J2-B/MR-J2S-B/
MR-J2-Jr/MR-J2M-B) by SSCNET.
