Mitsubishi QD75P1N User Manual

8 - 7
MELSEC-Q
8 OPR CONTROL
8.2.3 OPR method (1): Near-point dog method
The following shows an operation outline of the "near-point dog method" OPR method.
Operation chart
1)
The machine OPR is started.
(The machine begins the acceleration designated in "
Pr.51
OPR acceleration time selection", in the direction
designated in "
Pr.44
OPR direction". It then moves at the "
Pr.46
OPR speed" when the acceleration is
completed.)
2) The machine begins decelerating when the near-point dog ON is detected.
3)
The machine decelerates to the "
Pr.47
Creep speed", and subsequently moves at that speed.
(At this time, the near-point dog must be ON. The workpiece will continue decelerating and stop if the near-point dog is
OFF.)
4)
After the near-point dog turns OFF, the pulse output from the QD75 will stop at the first zero signal,
outputting a "deviation counter clear signal" to the drive unit.
(The "deviation counter clear signal output time" is set in
Pr.55
.)
5)
After a "deviation counter clear signal" is output to the drive unit, the OPR complete flag (
Md.31
Status:
b4) turns from OFF to ON and the OPR request flag (
Md.31
Status: b3) turns from ON to OFF.
t
ON
OFF
OPR speed
Deceleration at the near-point dog ON
Creep speed
ON
OFF
OFF
ON
Standby
OPR
Standby
Inconsistent
0
Movement amount after
near-point dog ON
Inconsistent
Value of the machine moved is stored.
OP address
Current feed value
V
Zero signal
Value of *1
Deviation counter clear output
Movement amount after
near-point dog ON
Near-point dog
ON
OFF
One servomotor rotation
*
1
OPR request flag
OPR complete flag
Md.34
1) 2) 3) 4) 5)
Pr.46
Pr.47
Md.34
Md.20
Md.21
Md.26
Md.31
Md.31
Pr.55
Machine feed value
Adjust so the near-point dog OFF
position is as close as possible to
the center of the zero signal HIGH level.
If the near-point dog OFF position
overlaps with the zero signal, the
machine OPR stop position may
deviate by one servomotor rotation.
Machine OPR start
(Positioning start signal)
[Y10,Y11,Y12,Y13]
Status: b3
Status: b4
Axis operation status
Deviation counter clear
signal output time

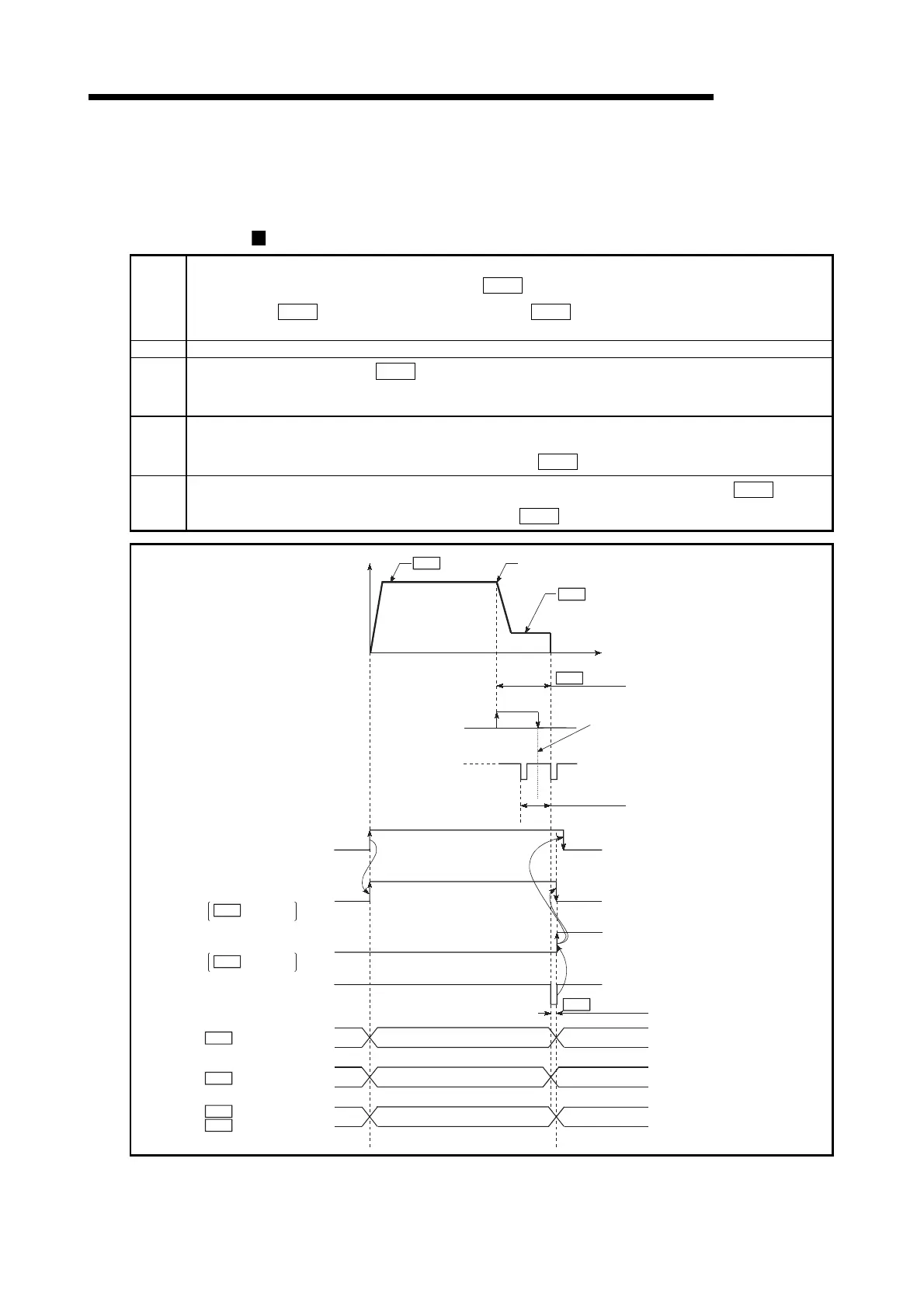

Fig. 8.2 Near-point dog method machine OPR
