GS716T and GS724T Gigabit Smart Switches
FLASH Log Configuration
The FLASH log is a log that is stored in persistent storage, which means that the log
messages are retained across a switch reboot.
• The first log type is the system startup log. The system startup log stores the first N
messages received after system reboot. This log always has the log full operation
attribute set to stop on full and can store up to 32 messages.
• The second log type is the system operation log. The system operation log stores the
last N messages received during system operation. This log always has the log full
operation attribute set to overwrite. This log can store up to 1000 messages.
Either the system startup log or the system operation log stores a message received by the
log subsystem that meets the storage criteria, but not both. On system startup, if the startup
log is configured, it stores messages up to its limit. The operation log, if configured, then
begins to store the messages.

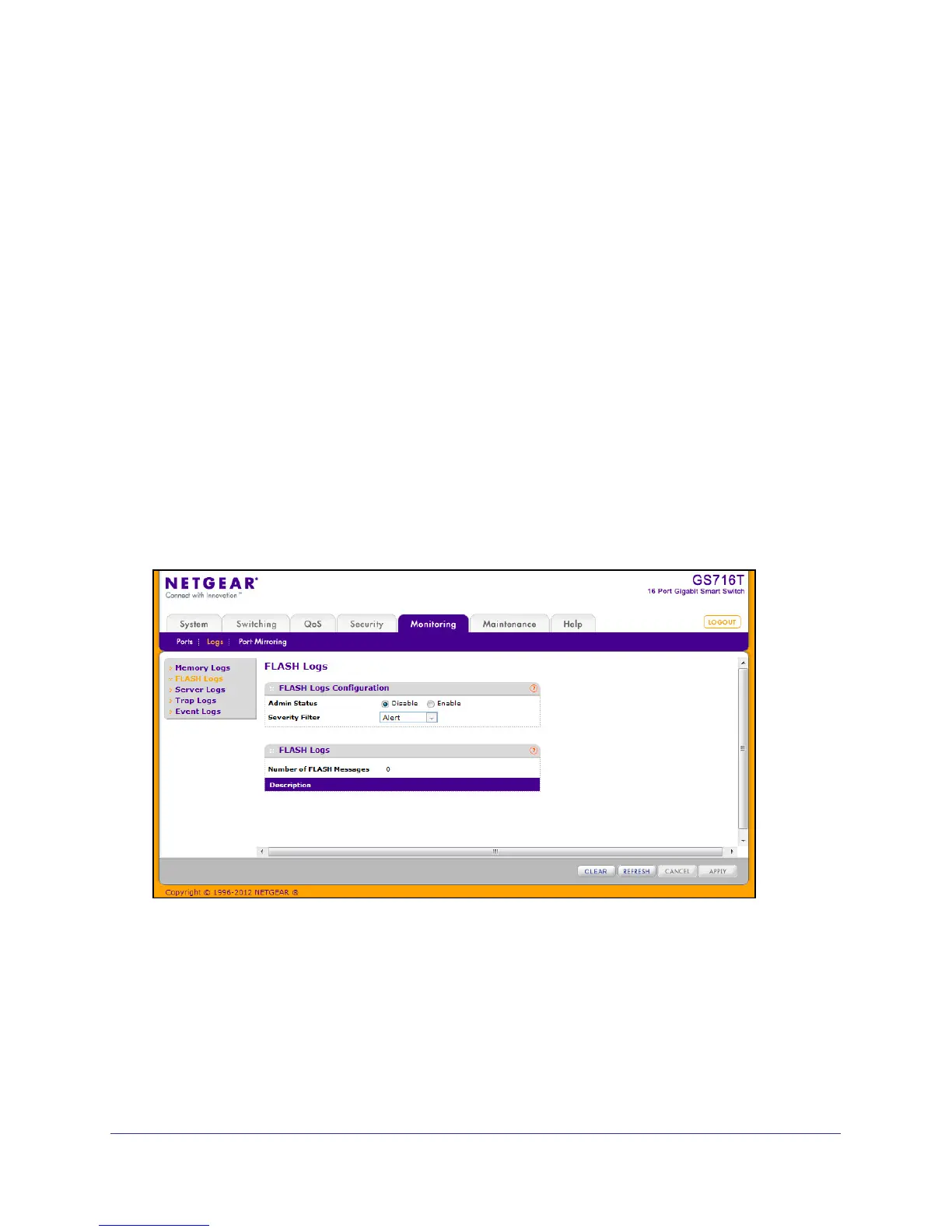

Use the FLASH Log Configuration page to enable or disable persistent logging and to set the
severity filter.
To access the FLASH Log Configuration page, click the Monitoring
 Logs tab, and then click
the FLASH Log link.
To configure the FLASH Log settings:
1. Use the radio buttons in the Admin Status field to determine whether to log messages
to persistent storage.
• Enable: Enables persistent logging.
• Disable: Prevents the system from logging messages in persistent storage.
2. From the Severity Filter field, specify the type of log messages to record. A log records
messages equal to or above a configured severity threshold. For example, if you select

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
