GS716T and GS724T Gigabit Smart Switches
ACL Wizard
The ACL Wizard allows you to configure ACL permissions for devices based on the source
and destination of MAC address, IP address, and port IDs.

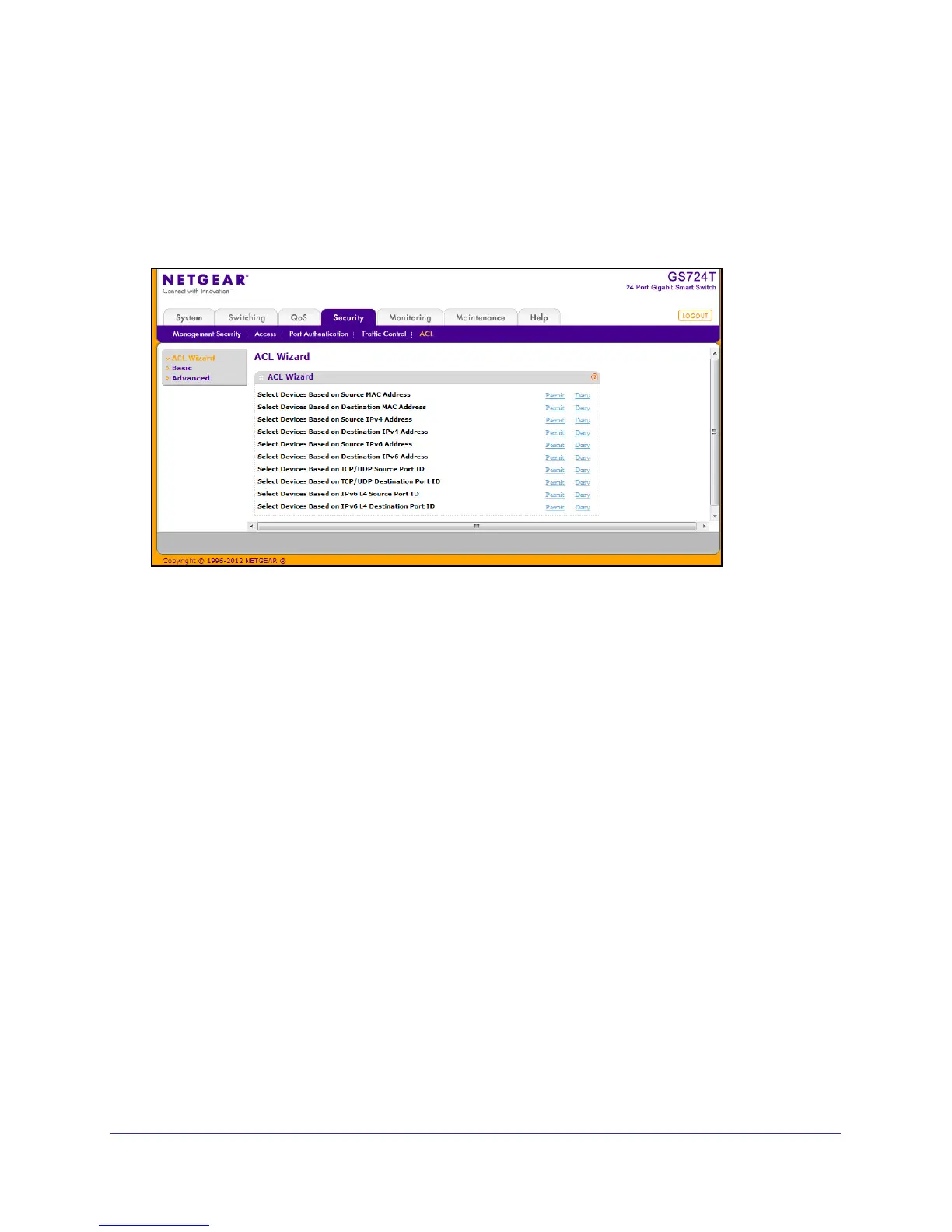

To display the MAC ACL page, click Security  ACL Wizard.
When a packet meets the match criteria of a rule, the specified rule action (Permit or Deny) is
taken and the additional rules are not checked for a match; configure as follows:
• Select Devices Based on Source MAC Address. Permit and Deny options are used to
configure devices based on source MAC address.
• Select Devices Based on Destination MAC Address. Permit and Deny options are used
to configure devices based on destination MAC address.
• Select Devices Based on Source IPv4 Address. Permit and Deny options are used to
configure devices based on the source IPv4 address.
• Select Devices Based on Destination IPv4 Address. Permit and Deny options are used
to configure devices based on the destination IPv4 address.
• Select Devices Based on Source IPv6 Address. Permit and Deny options are used to
configure devices based on the source IPv6 address.
• Select Devices Based on Destination IPv6 Address. Permit and Deny options are used
to configure devices based on the destination IPv6 address.
• Select Devices Based on TCP/UDP Source Port ID. Permit and Deny options are used to
configure devices based on the TCP/UDP source port ID.
• Select Devices Based on TCP/UDP Destination Port ID. Permit and Deny options are
used to configure devices based on the TCP/UDP destination port ID.
• Select Devices Based on IPv6 L4 Source Port ID. Permit and Deny options are used to
configure devices based on the IPv6 layer 4 source port ID.
• Select Devices Based on IPv6 L4 Destination Port ID. Permit and Deny options are used
to configure devices based on the IPv6 layer 4 destination port ID.

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
