NETGEAR GS716T User Manual

177
GS716T and GS724T Gigabit Smart Switches

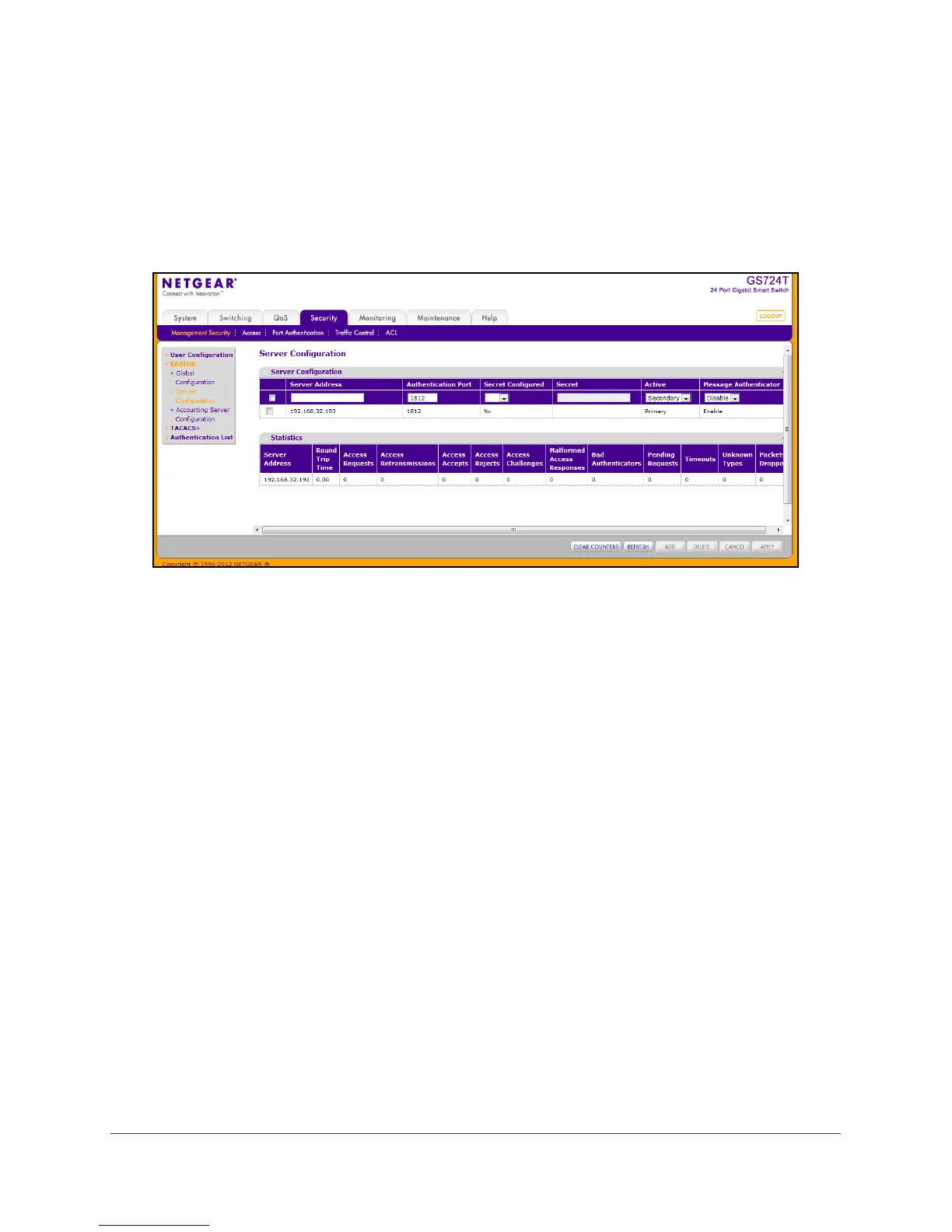

RADIUS Server Configuration
Use the RADIUS Server Configuration page to view and configure various settings for the
current RADIUS server configured on the system.
To access the RADIUS Server Configuration page, click Security  Management Security,
and then click the RADIUS
 Server Configuration link.
To configure a RADIUS server:
1. To add a RADIUS server, specify the settings the following list describes, and click Add.
• In the Server Address field, specify the IP address of the RADIUS server to add.
• In the Authentication Port field, specify the UDP port number the server uses to
verify the RADIUS server authentication. The valid range is 0–65535.
• From the Secret Configured menu, select Yes to add a RADIUS secret in the next
field. You must select Yes before you can configure the RADIUS secret. After you add
the RADIUS server, this field indicates whether the shared secret for this server has
been configured.
• In the Secret field, type the shared secret text string used for authenticating and
encrypting all RADIUS communications between the switch and the RADIUS server.
This secret must match the RADIUS encryption.
• From the Active menu, specify whether the server is a Primary or Secondary server.
• From the Message Authenticator menu, enable or disable the message
authenticator attribute for the selected server.
2. To modify settings for a RADIUS server that is already configured on the switch, select the
check box next to the server address, update the desired fields, and click Apply.
3. Click Refresh to update the page with the most current information.
4. To delete a configured RADIUS server, select the check box next to the server address, and
then click Delete.
5. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
