NETGEAR GS716T User Manual

246
GS716T and GS724T Gigabit Smart Switches

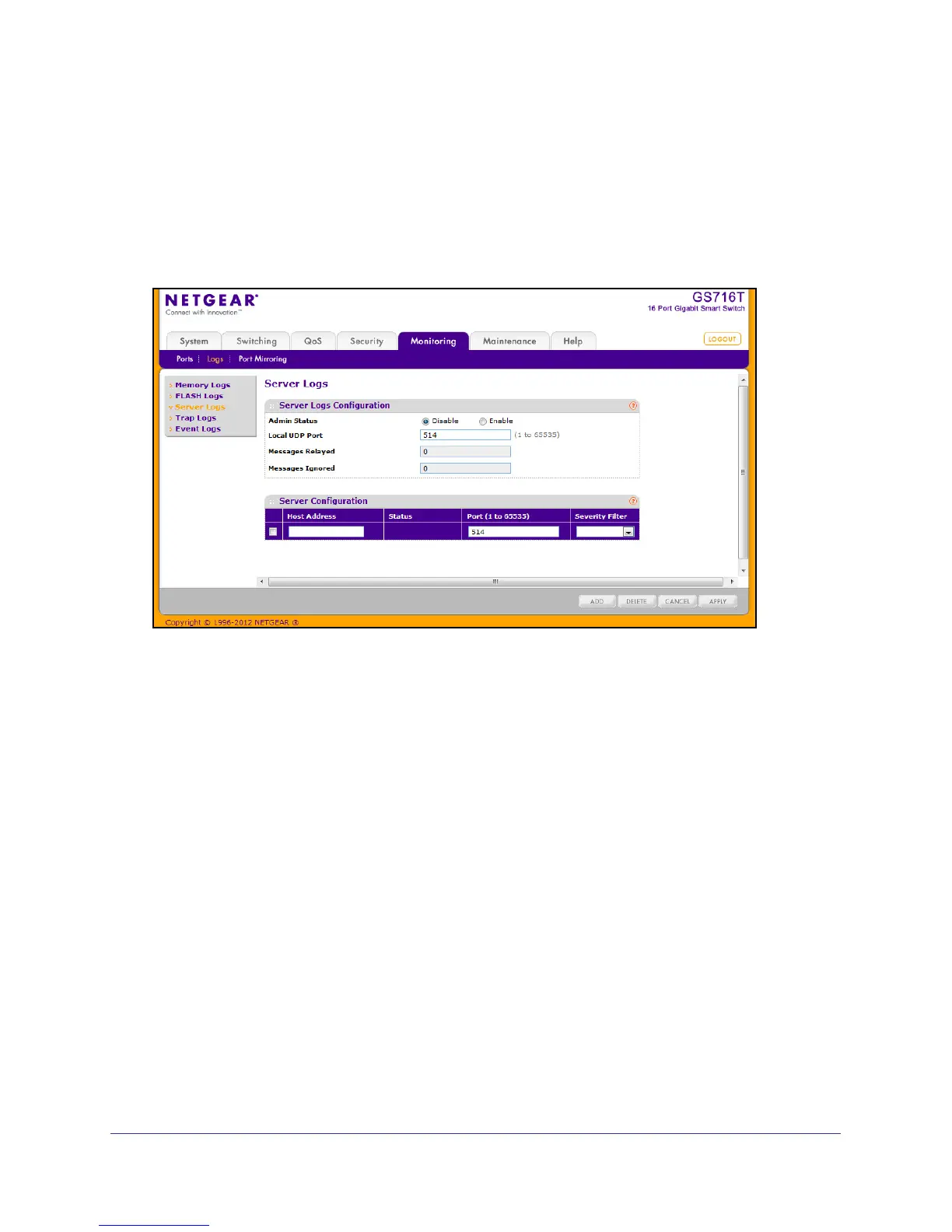

Server Log Configuration
Use the Server Log Configuration page to allow the switch to send log messages to the
remote logging hosts configured on the system.
To access the Server Log Configuration page, click the Monitoring  Logs tab, and then click
the Server Log link.
To configure local log server settings:
1. Use the radio buttons in the Admin Status field to determine whether to send log
messages to the remote syslog hosts configured on the switch.
• Enable: Messages will be sent to all configured hosts (syslog collectors or relays)
using the values configured for each host.
• Disable: Stops logging to all syslog hosts. Disable means no messages will be sent to
any collector/relay.
2. In the Local UDP Port field, specify the port on the switch from which syslog messages are
sent.
3. Click Apply to save the settings.
The Server Log Configuration area also displays the following information:
• The Messages Relayed field shows the number of messages forwarded by the syslog
function to a syslog host. Messages forwarded to multiple hosts are counted once for
each host.
• The Messages Ignored field shows the number of messages that were ignored.

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
