Nikon D60 Repair Manual

- Ｄ  ･ -
logo_Q0650_forGraphic
071004_Gdesign_ito
VBA21001-R.3753.A
・

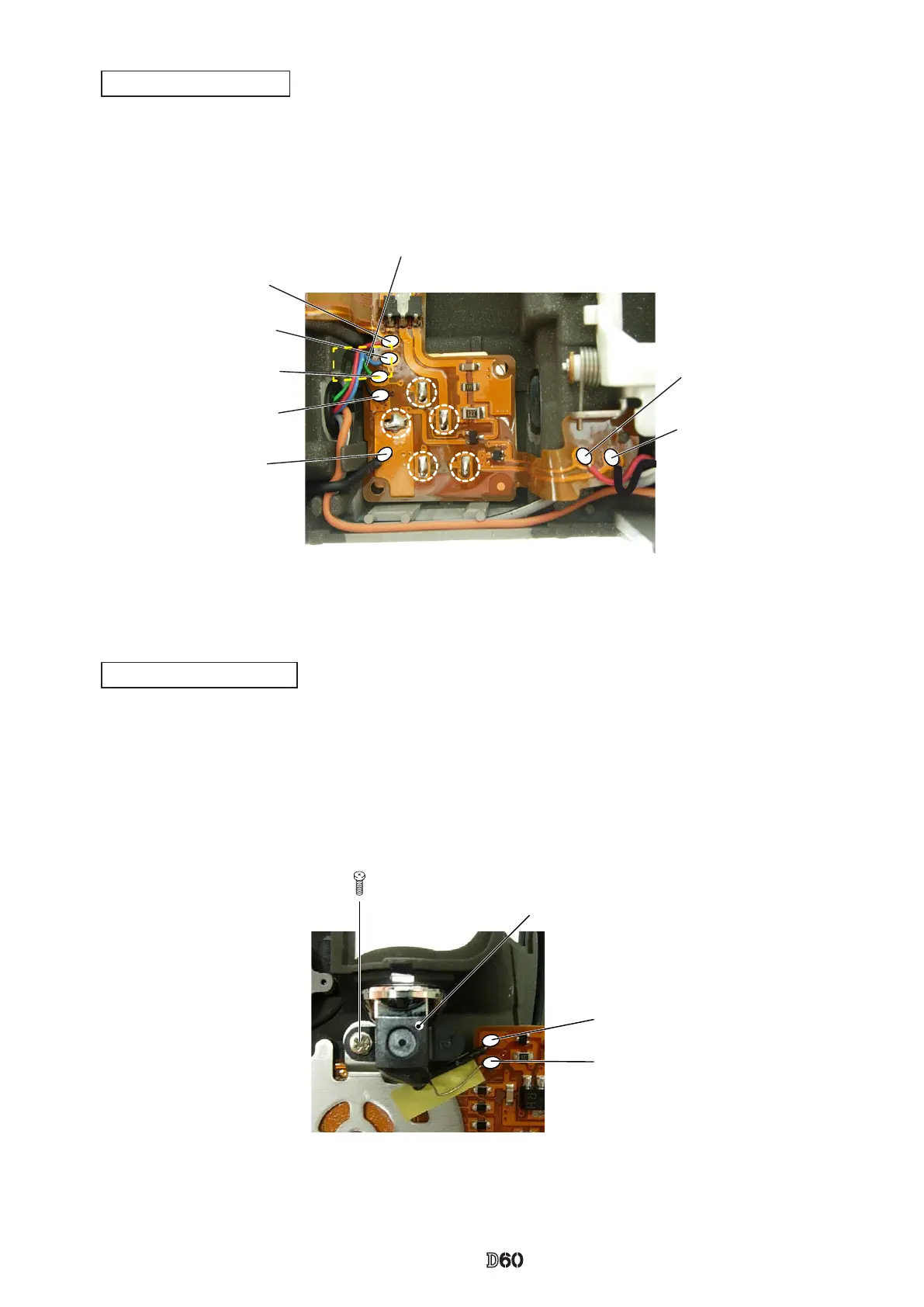

Remove the tape (#956).
・
Unsolder the seven wires (connected from SB lower case unit and SB release base unit).
・
Remove the ve solder bridges.
Top cover FPC / Wiring
Red: SB release base unit
Black: SB release base unit
#956
Red: SB lower case unit
Blue: SB lower case unit
Green: SB lower case unit
Black: SB lower case unit
Black: DC/DC PCB
・
Remove the two wires (black and uncoated) (connected from AF-assist illuminator unit).
・
Take out the screw (#608), and remove the AF-assist illuminator unit (#B325).
AF-assist illuminator unit
#608
AF-assist illuminator unit (#B325)
Black: AF-assist illuminator unit:
Uncoated wire: AF-assist illuminator unit
INC
