Nikon D60 Repair Manual

- Ｄ  ･ -
logo_Q0650_forGraphic
071004_Gdesign_ito
VBA21001-R.3753.A
#B3051
#631×3
Red: Backup battery
Yellow:DC/DC
Blue:DC/DC
Red:DC/DC
Purple:DC/DC
Green:DC/DC
Adhesive double-coated tape
(attached on back of loft-PCB
Loft-PCB
(#1031)
Gray: Buzzer unit
Gray: Buzzer unit
TOGO-PCB unit (#B2001)
(The other side)
・

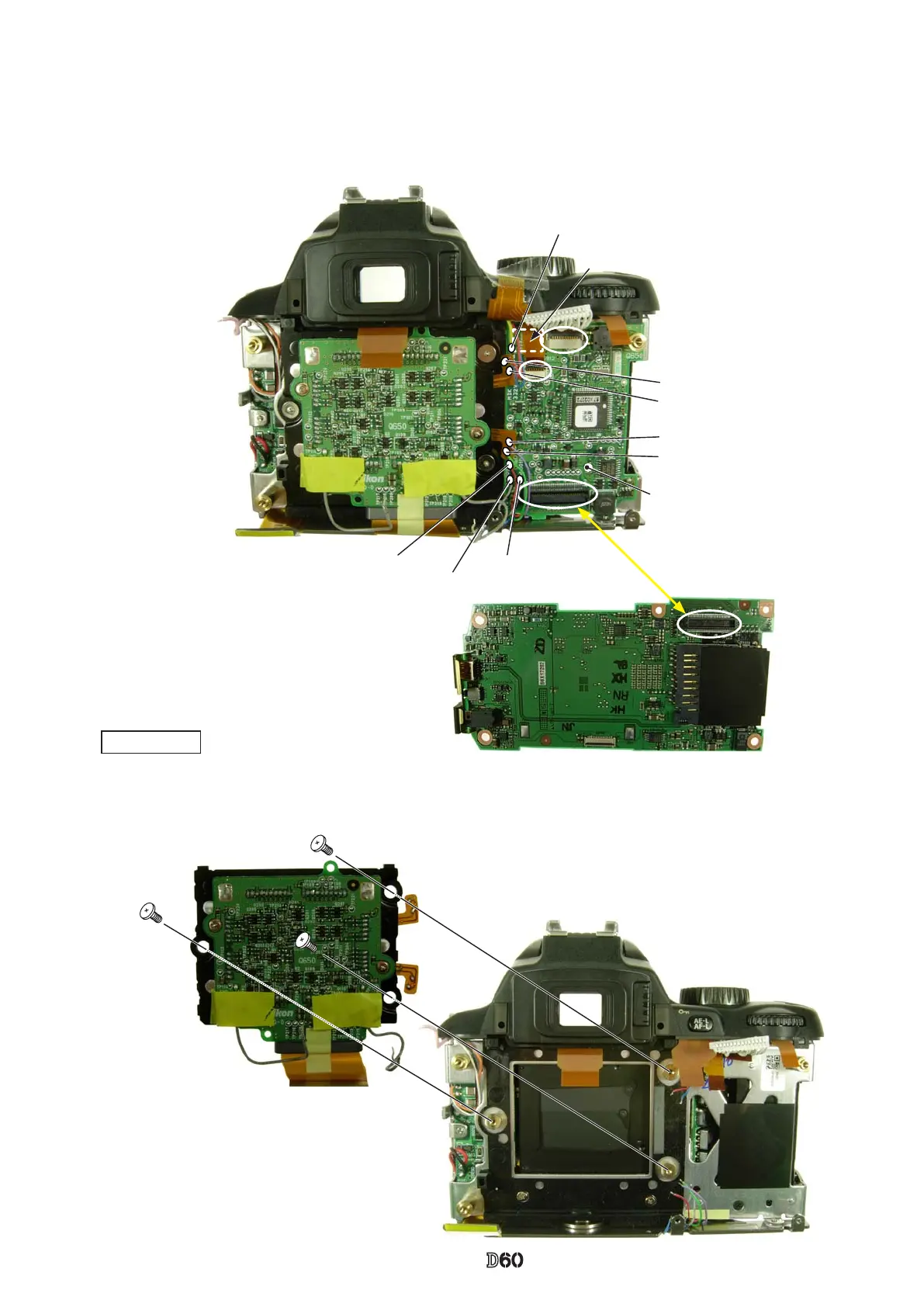

Disconnect the TOGO-PCB unit (#B2001) from the connector, (while pressing the loft-PCB).
・
Disconnect the two FPCs from each connector.
・
Unsolder the eight wires.
・
Remove the loft-PCB that is partially attached with the adhesive double-coated tape.
Caution:
Some bodies have already washer(s) attached on the
mounting surface of CCD unit.
・
Take out the three screws (#631), and remove the CCD unit (#B3051).
CCD unit
INC
