Nikon D60 Repair Manual

- Ｄ  ･ -
logo_Q0650_forGraphic
071004_Gdesign_ito
VBA21001-R.3753.A
・

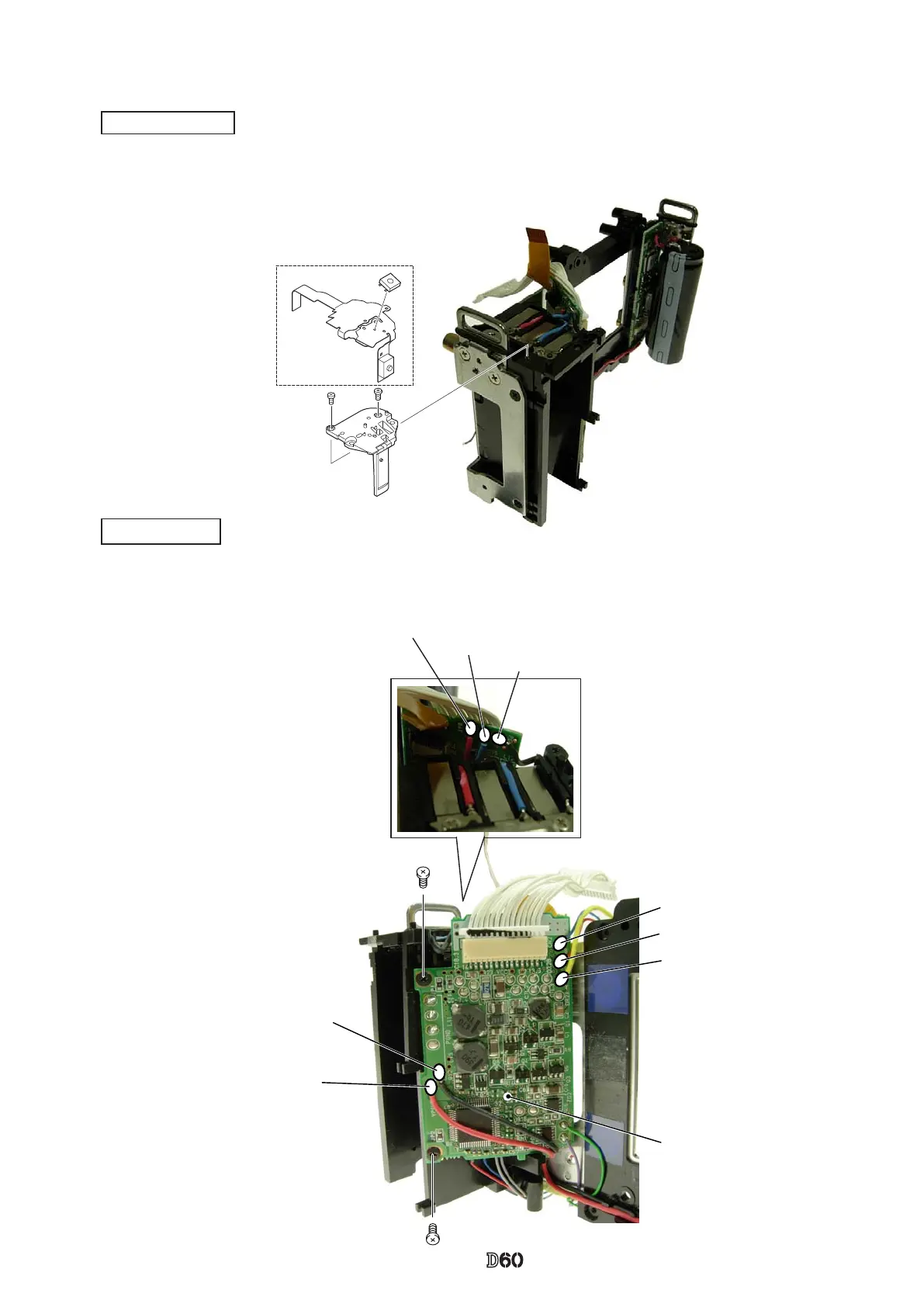

Remove the eight wires (connected from SB-PCB, LOFT PCB, Battery contacts, and Battery box).
・
Take out the two screws (#670).
・
Remove the DC/DC PCB.
#683×2
#158
#B2006
#354
Remote block
・
Remove SW-FPC [#B2006].
・
Take the two screws (#683).
・
Remove the remote block (#158).
2. Rear body
DC/DC PCB
Black:SB PCB
Red:SB PCB
DC/DC PCB
Red: Battery contacts (+)
Blue: Battery box (ID)
Black: Battery contacts (-)
#670×2
Blue: LOFT PCB
Red: LOFT PCB
Yellow: LOFT PCB
INC
