Nikon D60 Repair Manual

VBA21001-R.3753.A
ー E1・ ー
logo_Q0650_forGraphic
071004_Gdesign_ito
BLACK
BLACK
RED
RED
BLUE
BLACK
BLACK
GREEN
UNCOATED
BLACK
BLACK
RED
BLACK GRAY
WHITE
ORANGE
BLACK
RED
PINK
BLACK
RED
BLACK
RED
RED
BLACK
BLUE
RED
BLACK
BLUE
RED
GREEN
YELLOW
GRAY
BLACK
ORANGE
GRAY
GRAY
BLUE
APERTURE MG
POWER SW

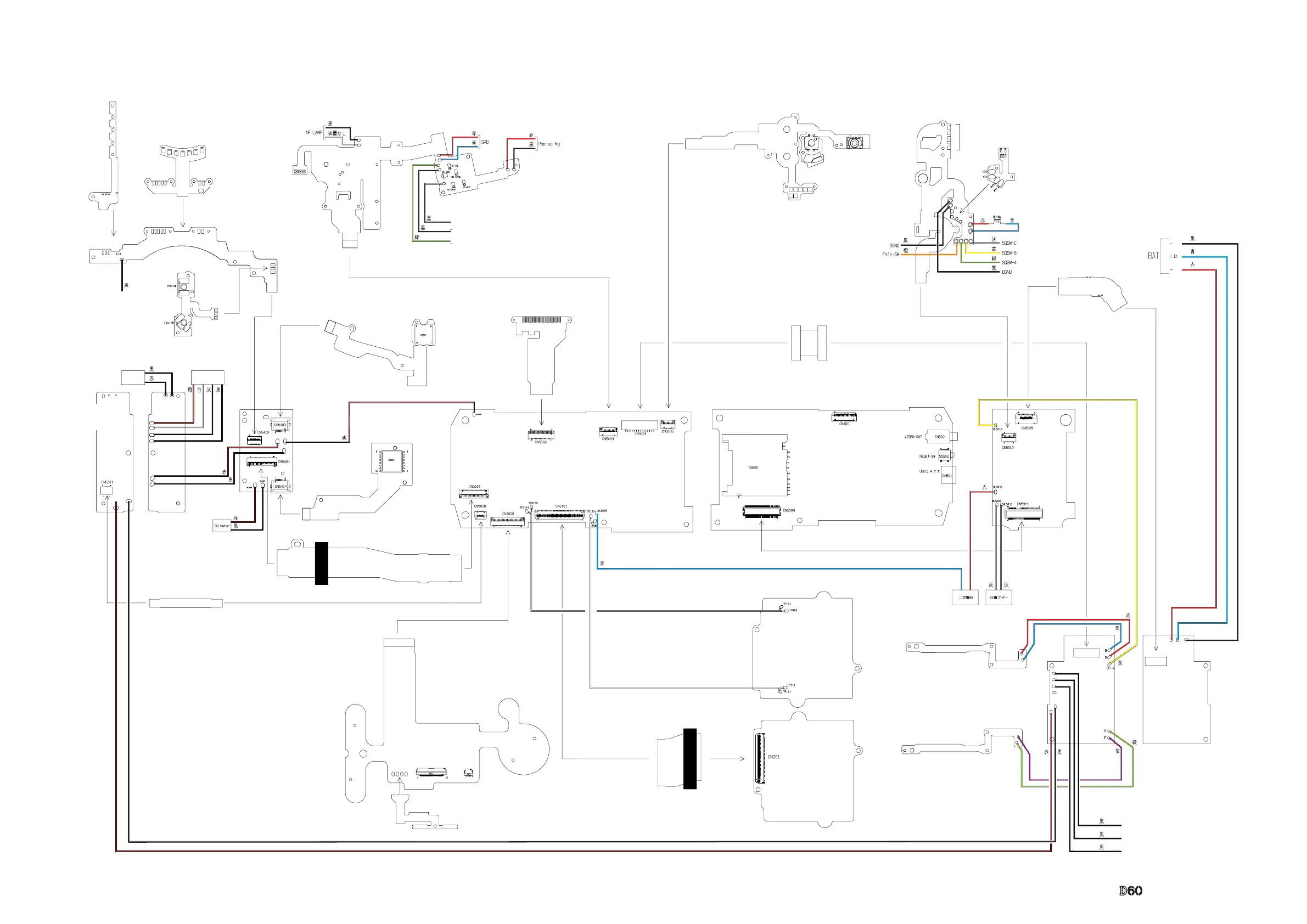

Ｄ６０実体配線図
Ｄ６０ＷＩＲＩＮＧ
DC/DC 基板
DC/DC PCB
BLACK
BLACK
BLACK
TO LENS MOUNT
TO FRONT BODY FPC
TO TOP COVER FPC
上カバー FPC へ
前ボディ FPC へ
レンズマウントへ
APERTURE PI-FPC
絞り PI-FPC
LOFT PCB
LOFT 基板
TO SHUTTER UNIT
シャッターユニットへ
SQ-FPC
電源 SW
INSPECTION TERMINAL
検査端子
レリーズ SW-FPC
RELEASE SW-FPC
EXPOSURE COMPENSATION SW
露出補正 SW
F 内 LCD
IN FINDER LCD
REAR FPC
背面 FPC
TOGO PCB
TOGO 基板
AF-CCD-FPC
測光 FPC
AE FPC
上カバー FPC
TOP COVER FPC
中継基板
RELAY PCB
SI-FPC
レンズ接点 FPC
LENS CONTACT FPC
前ボディ FPC
FRONT BODY FPC
SYNC-SW-FPC
SB PCB
SB 基板
DC/DC 基板へ
TO DC/DC PCB
CCD PCB
CCD 基板
TO DC/DC PCB
DC/DC 基板へ
POP-UP SW
RED
BLUE
YELLOW
GREEN
PURPLE
アイセンサー FPC
EYE-SENSOR FPC
ﾒｲﾝｺﾝﾃﾞﾝｻ
MAIN CONDENSER
SB 発光部
SB LIGHTING UNIT
INC
