Nikon D60 Repair Manual

- Ｄ  ･ -
logo_Q0650_forGraphic
071004_Gdesign_ito
VBA21001-R.3753.A
・

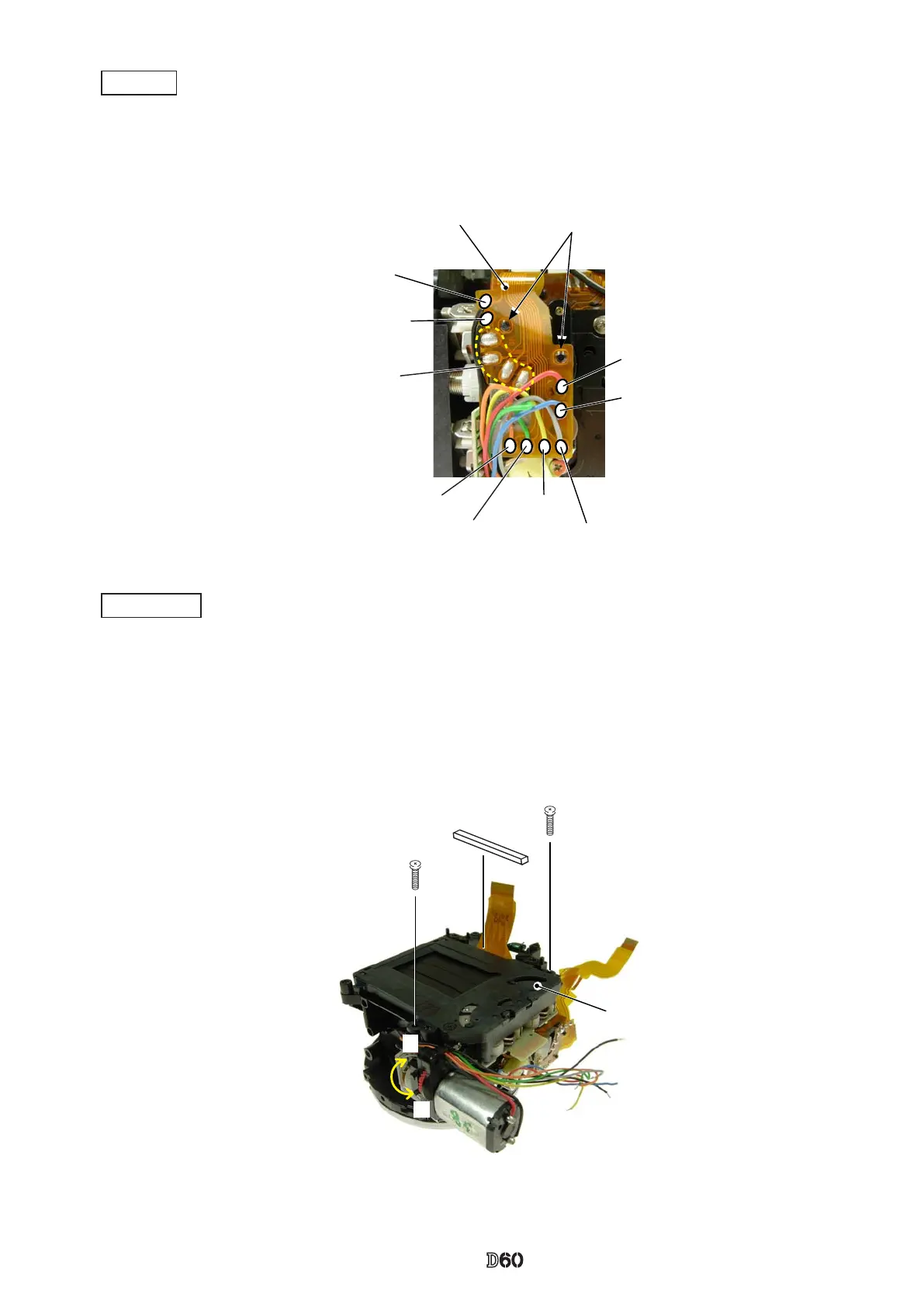

Remove [#757].
・
Turn the white gear in the direction of "A", and raise the mirror.
・
Take out the two screws (#635).
・
Remove the shutter (#31).
・
Turn the white gear in the direction of "B", and get the mirror down.
Orange:Fmin
Green:SQ Gray:SQ
Yellow:SQ
Red:Mg
Blue:Mg
Black:Fmin
Black:SQ
Solder bridge ×4
Boss×2
SQ FPC
Ａ
#635×2
Shutter (#31)
Ｂ
#757
SQ FPC
・
Unsolder eight wires (connected from SQ, Fmin, and Mg).
・
Remove the four solder bridges.
・
Remove the SQ FPC by releasing from the two bosses.
Shutter unit
