113Service Manual – SC401, SCRUBTEC 344 24 - Electrical System (Battery)
Battery Installation
1. If equipped remove the ignition key, then disconnect the red battery connector.
2. Lift the recovery tank cover and check that it is empty; if not, empty it using the drain hose.
3. Grasp the handle and carefully lift the recovery tank.
4. The machine is supplied with cables suitable to install two 12 V batteries.
5. Carefully lift the batteries up to the compartment, then install them correctly.

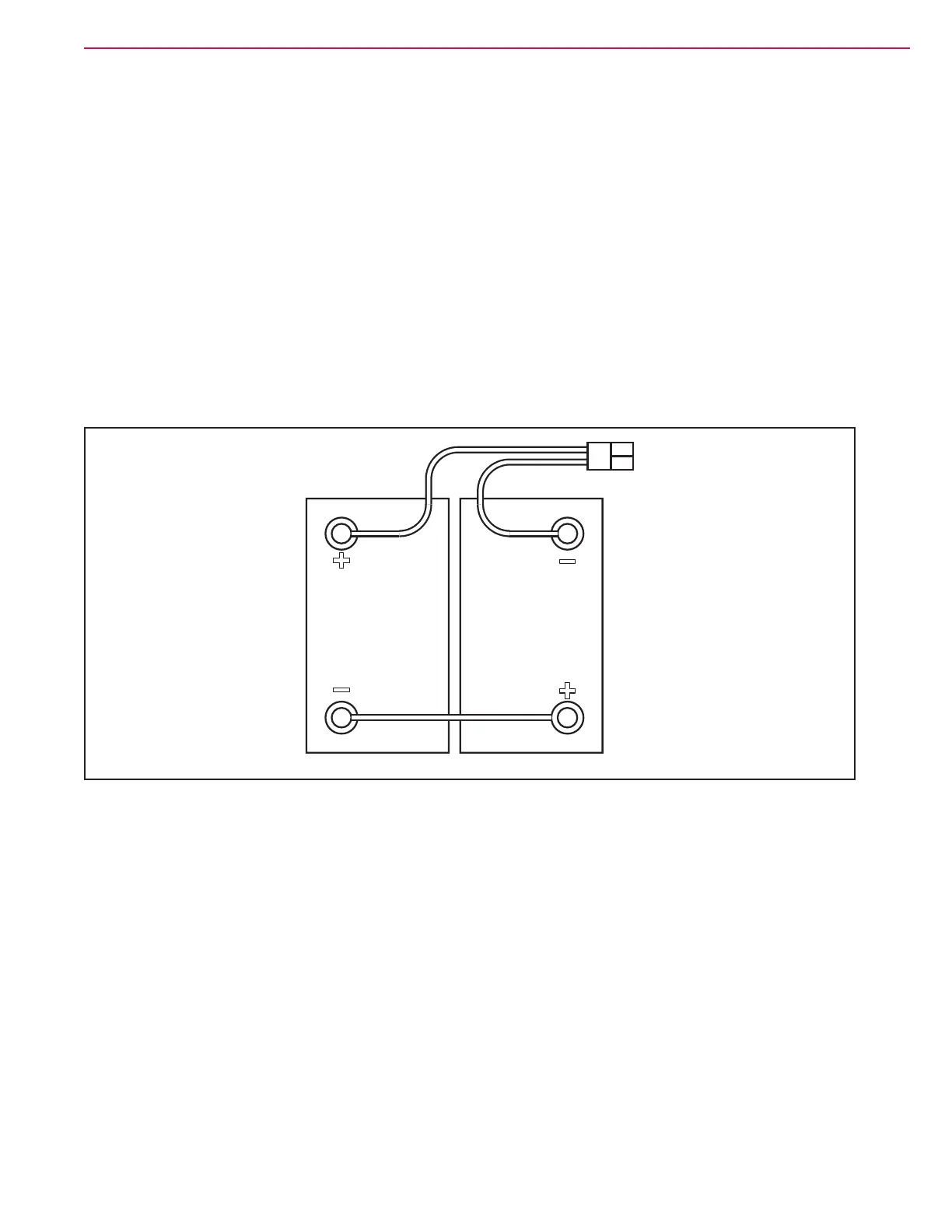

6. Route and install the battery cables as shown in the diagram, then tighten the nut on each battery
terminal.
7. Place the protection cap on each terminal, then connect the red battery connector.
8. Carefully lower the recovery tank.
9. Perform a complete battery charging cycle.
12 V 12 V
Figure 7:
