38Service Manual – SC401, SCRUBTEC 344 04 - Control System - Battery
Removal and Installation
Main Machine Controller (EB1)
WARNING: Electrostatic sensitive device, observe precautions for handling. Use the
specic ESD gloves. The operator should not wear a sweater, eece or
other wool or synthetic clothing when changing the PCB. The wrist strap
must be connected to an earth ground. See the relevant instructions.

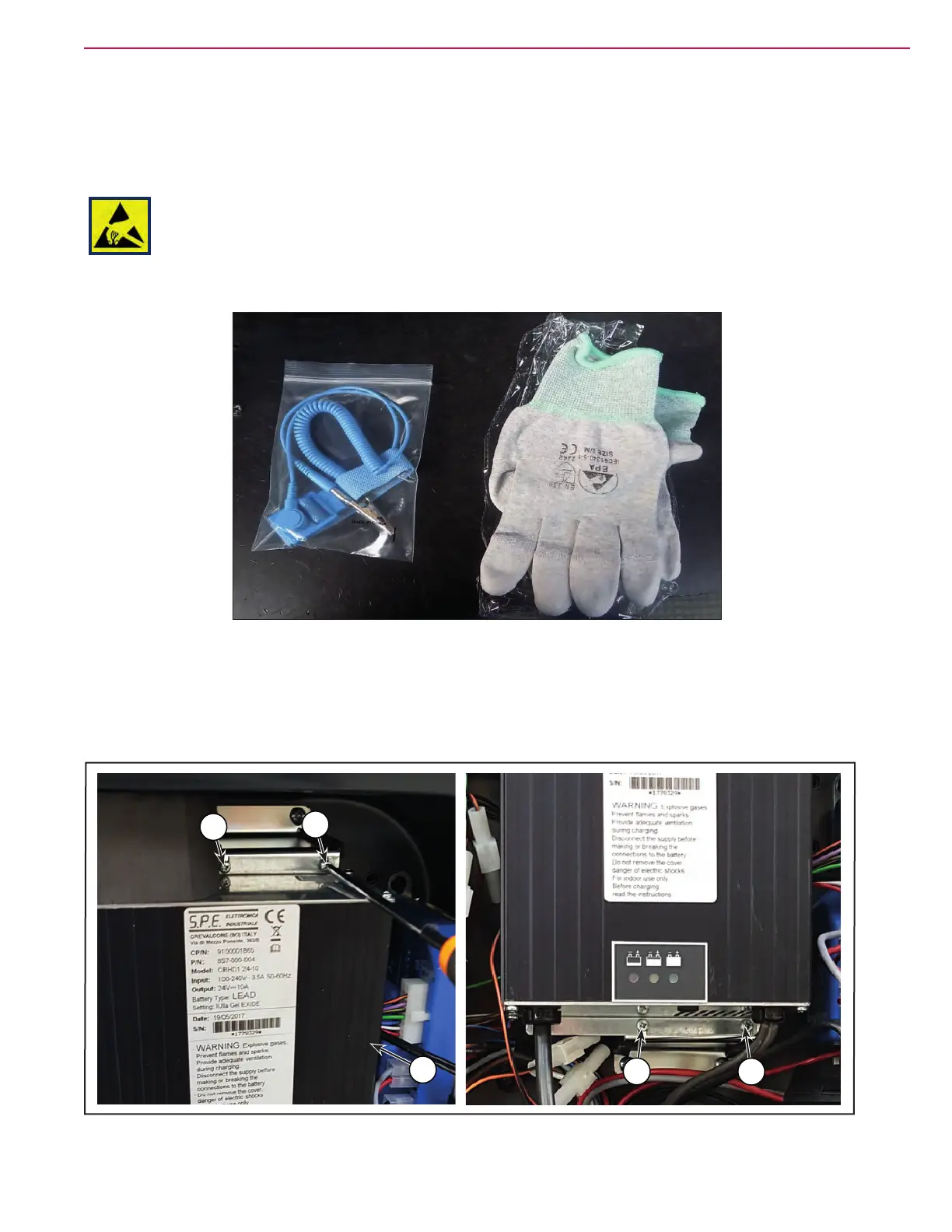

Figure 8:
1. If equipped remove the ignition key, then disconnect the red battery connector.
2. Unscrew the 4 screws and remove the electronic component compartment cover.
3. If present, remove the on-board battery charger (A) unscrewing the 4 screws (B).
Figure 9:
B
A
B
B
B
