77Service Manual – SC401, SCRUBTEC 344 05 - Control System - Cord
Specications

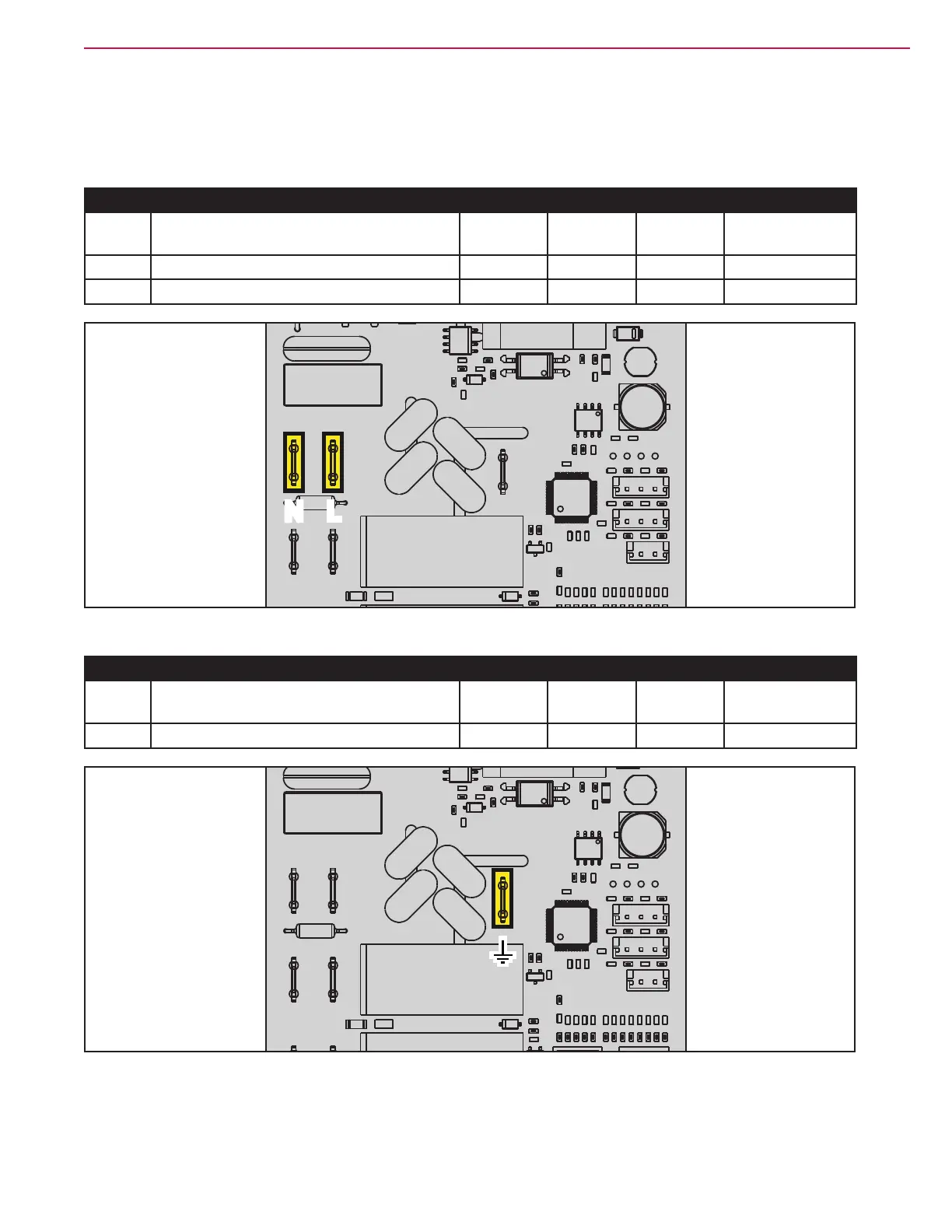

Main Machine Controller (EB1) Connectors
MAINS: type 2 x faston 6,3 x 0,8 mm
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Mains In 230Vac 15A SW1
2 Mains In 230Vac 15A SW1
N LN L
Figure 19:
GROUND: type faston 6,3 x 0,8 mm
PIN Description
Controller
in/out
V ref. I max. Connected to
1 Ground In 0Vac - Earth bolt
Figure 20:
