147Service Manual – SC401, SCRUBTEC 344 34 - Scrub System, Disc
Brush Motor Disassembly/Assembly
Disassembly
1. Remove the brush deck.
2. Working at the bench, remove the screw (A) and
recover its washers.
3. Use two little crowbar (B) for remove the brush
hub (C) to the brush motor pin.
4. Recover the key (D).
5. Remove the screws (E).
6. Remove the brush motor (F).
Assembly
7. Assemble the components in the reverse order of
disassembly.
Note: Use the rubber hammer for
mounting the brush hub (C).
Note: For further information on deck
components see the Spare Parts
List.

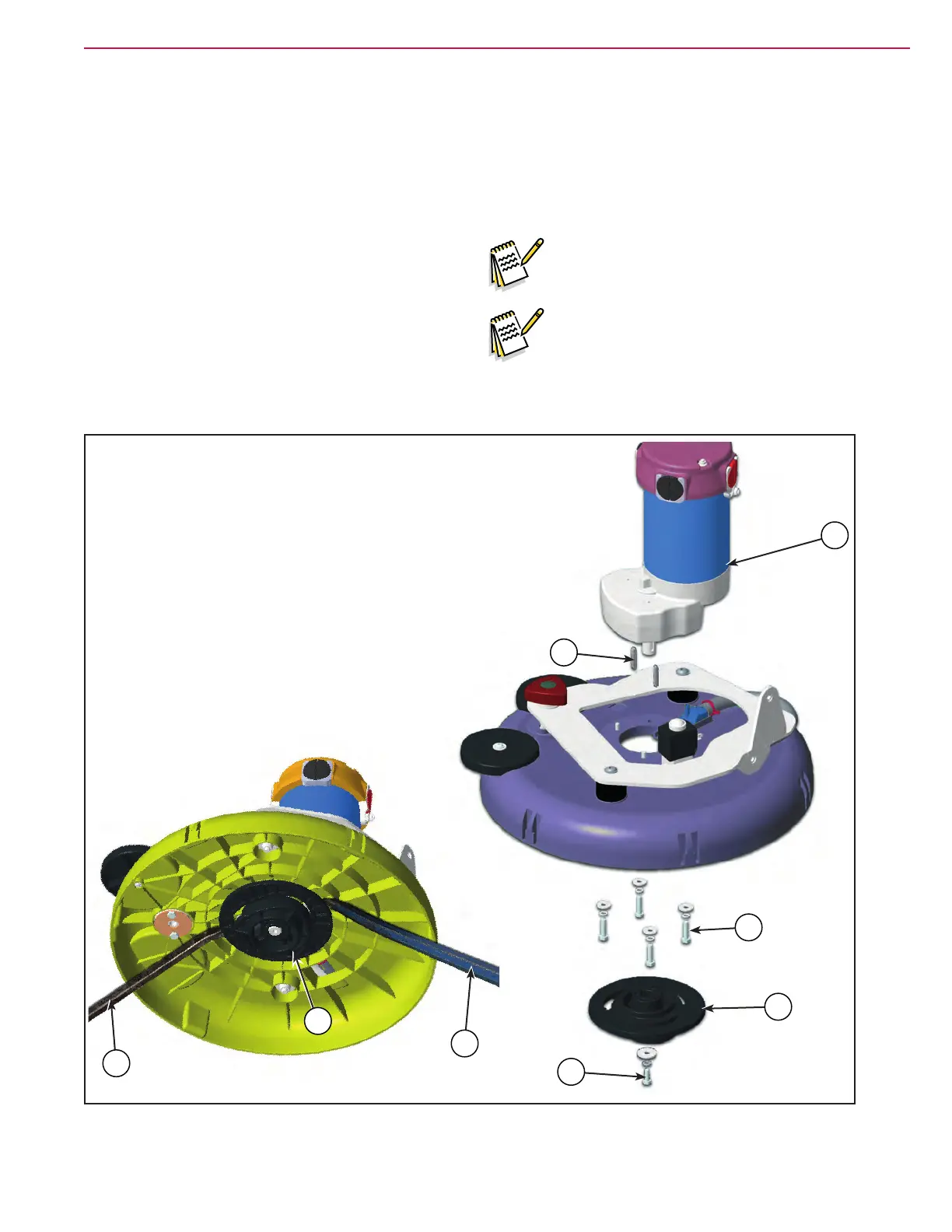

Figure 10:
F
A
D
C
E
B
B
C
