148Service Manual – SC401, SCRUBTEC 344 34 - Scrub System, Disc
Starting Capacitor Replacing (Cord Model)
Removal
1. Ensure that the machine is turned off and the power supply cable plug is disconnected from the
electrical mains.
2. Lower the brush deck by pressing the pedal
3. Unscrew the 4 screws (A) and remove the cover (B).
4. Unscrew the screw (C) for disengage the brown wire (D).
5. Unscrew the screw (E) for disengage the blue wire (F).
6. Lift the harness (G) to the box.
7. Unscrew the screw (H) and remove the Electronic capacitor (I).
Replacing
8. Assemble the components in the reverse order of disassembly.

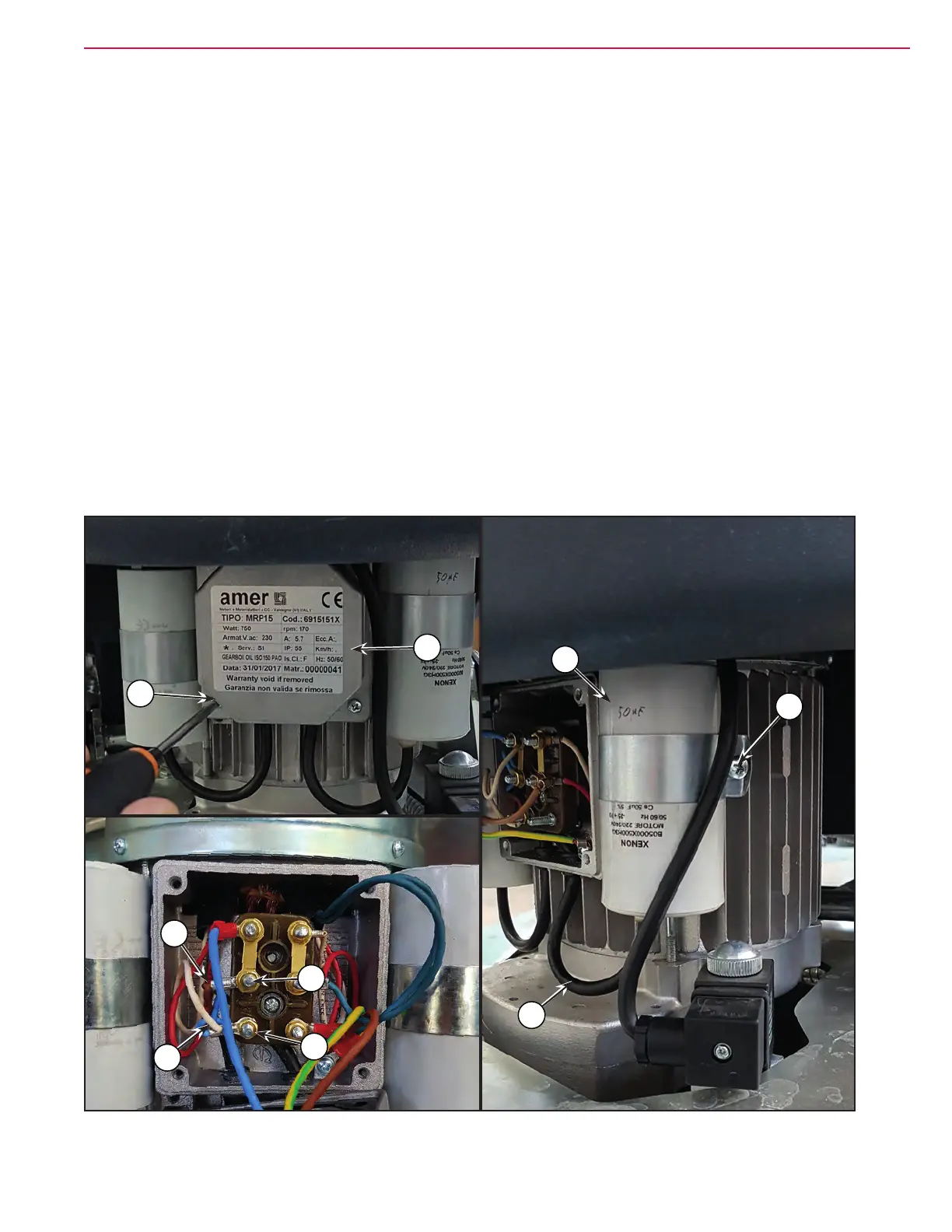

Figure 11:
I
G
H
A
F
B
D
E
C
