165Service Manual – SC401, SCRUBTEC 344 40 - Recovery System
Container and Vacuum Motor Disassembly/Assembly
Disassembly
1. Disassemble the vacuum system motor unit as shown in the previous paragraph.
2. At the workbench, remove the terminals lock (A) from the connector (B).
3. With a little screwdriver (C) move the splane lock (D) for disengaging the terminals from the connector.
4. Remove the two terminals (E).
5. Carefully, slightly lift the splane lock (D), previously pressed, to restore it.

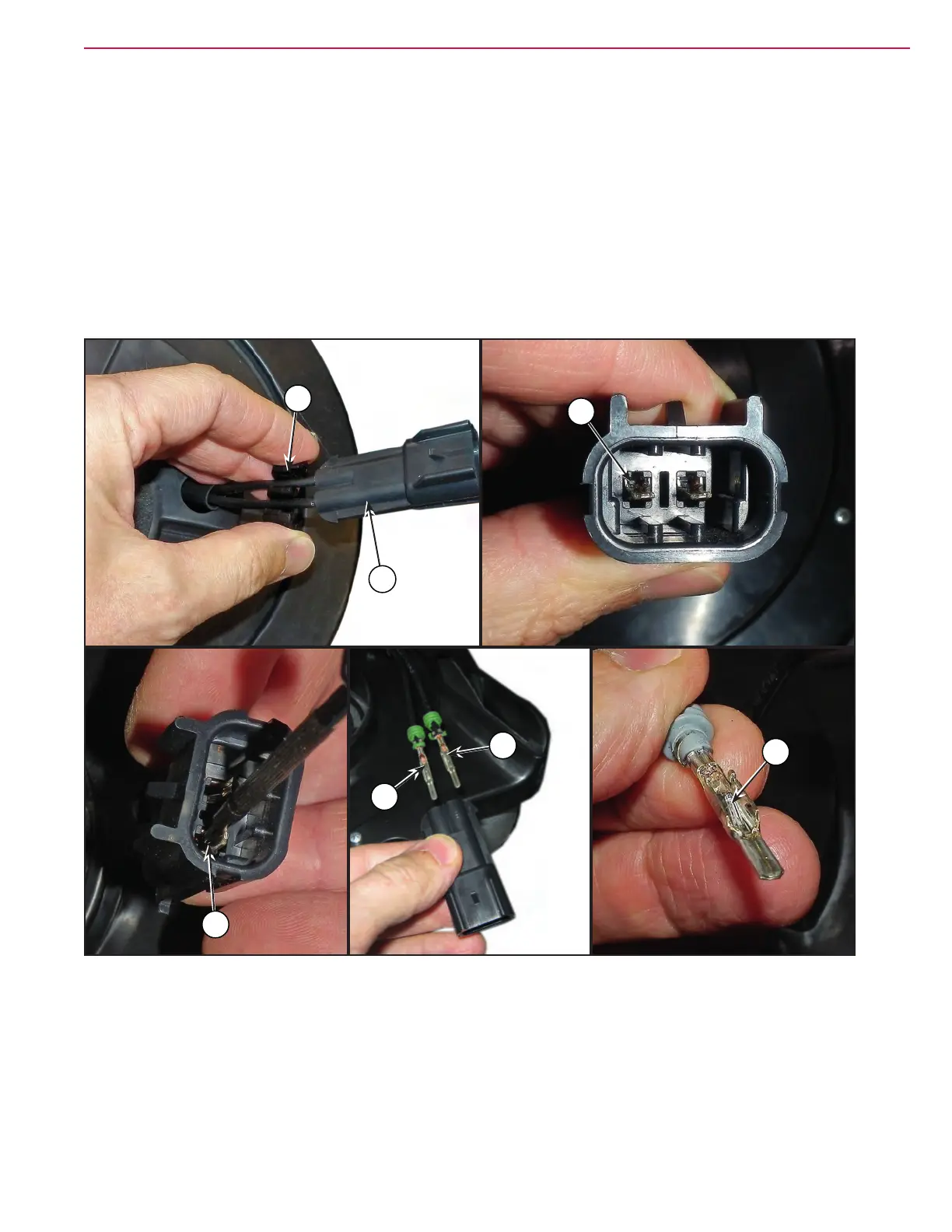

Figure 7:
A
B
C
D
D
E
E
