Notifier AFP1010 User Manual

1-12
Installation 15088:J 10/22/99

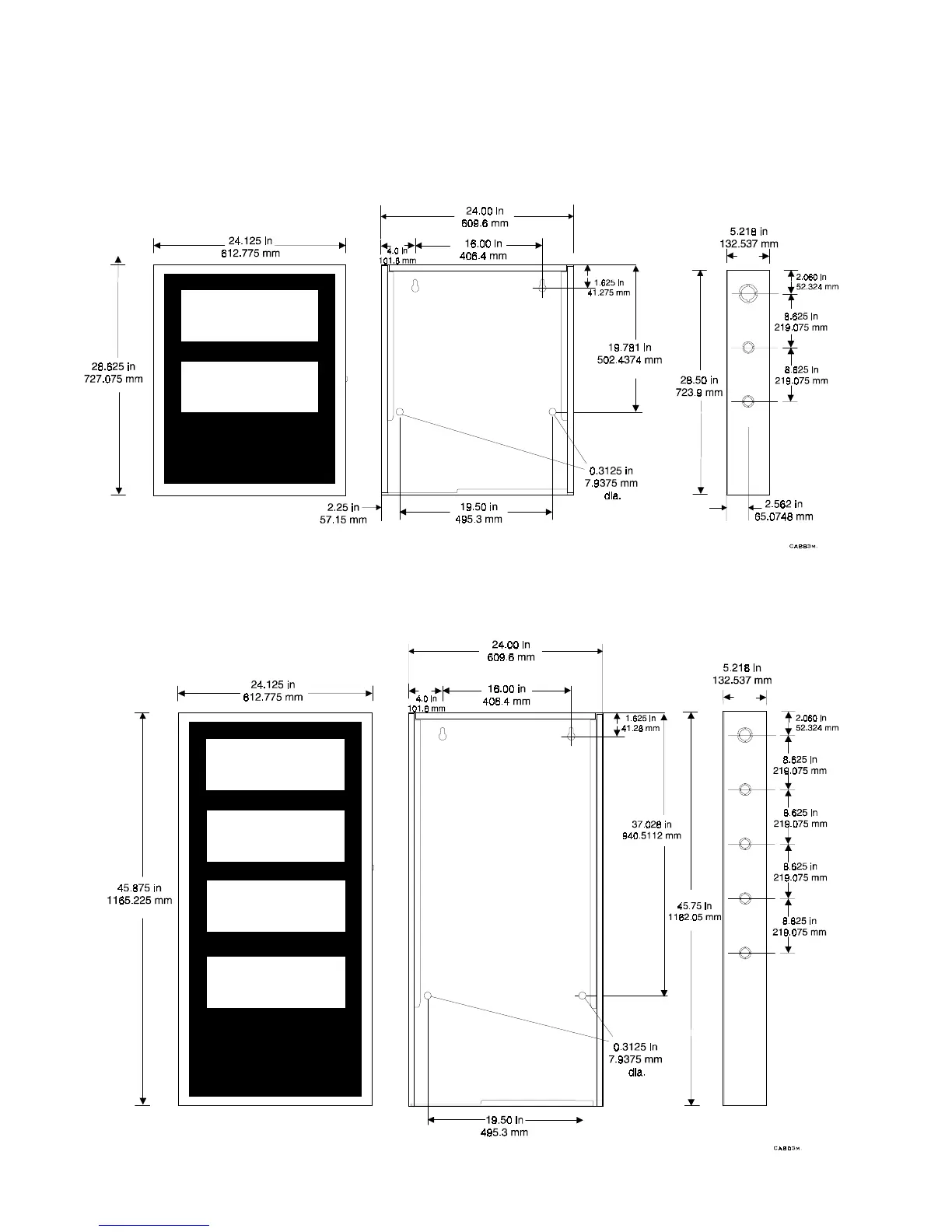

CAB-B3
The CAB-B3 is the cabinet and door assembly for two mounting rows. An optional TR-B3 trim ring is available for
use with the B-size cabinet, which is 24.125 inches wide by 28.625 inches high (612.775 mm wide by 727.075
mm high). The following replacement parts are available:
• DR-B3 door
• SBB-B3 backbox
CAB-D3
The CAB-D3 cabinet and door assembly for four mounting rows. An optional TR-D3 trim ring is available for use
with the D-size cabinet, which is 24.125 inches wide by 48.875 inches high (612.775 mm wide by 1165.225 mm
high). The following replacement parts are available:
• DR-D3 door
• SBB-D3 backbox
