163
Replacing Consumables
2

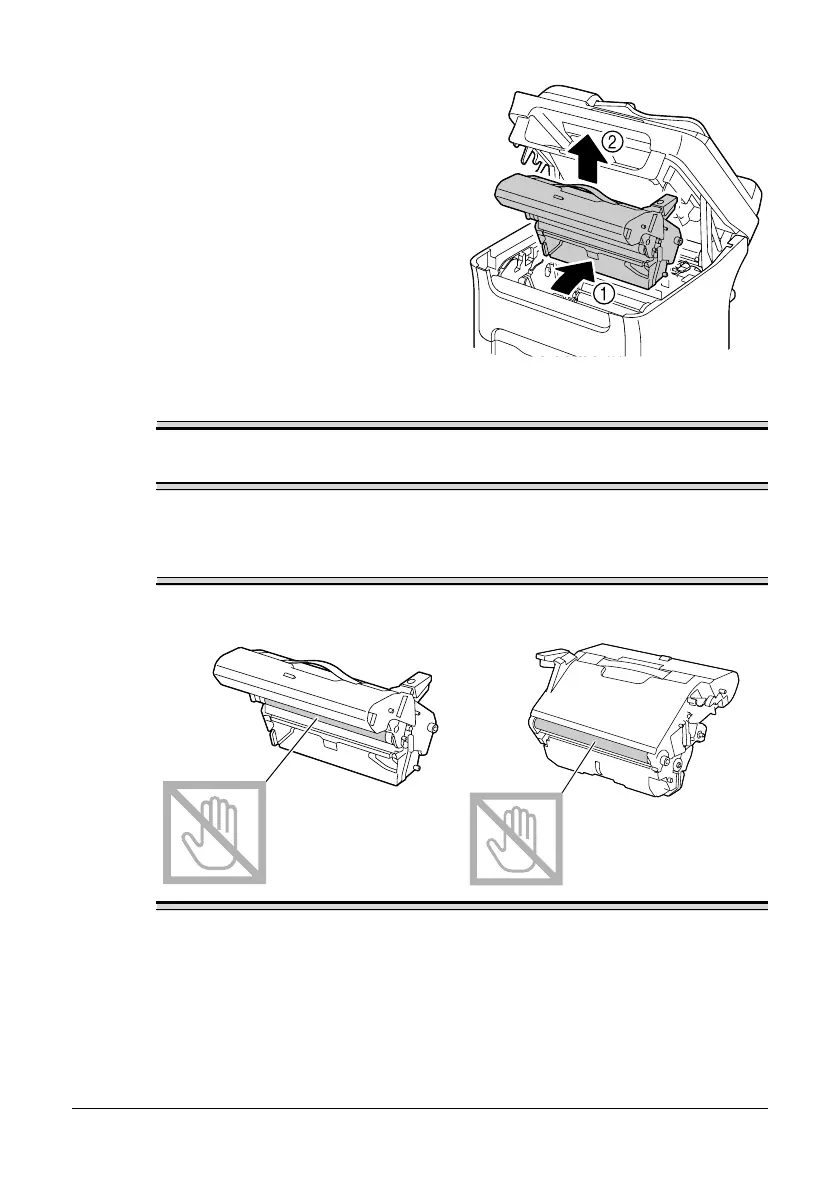

Grab the handle and
lift it up slightly
to the back,
and then slow
ly pull the
imaging cartridge out verti
cally
.
Note
Dispose of the used imaging
cartridge according to your
local regulations. Do
not burn the imaging cartridge.
3
Prepare the new imaging cartridge.
Note
Do not touch the PC drum and the transfer belt on the imaging
cartridge.
