203 Troubleshooting

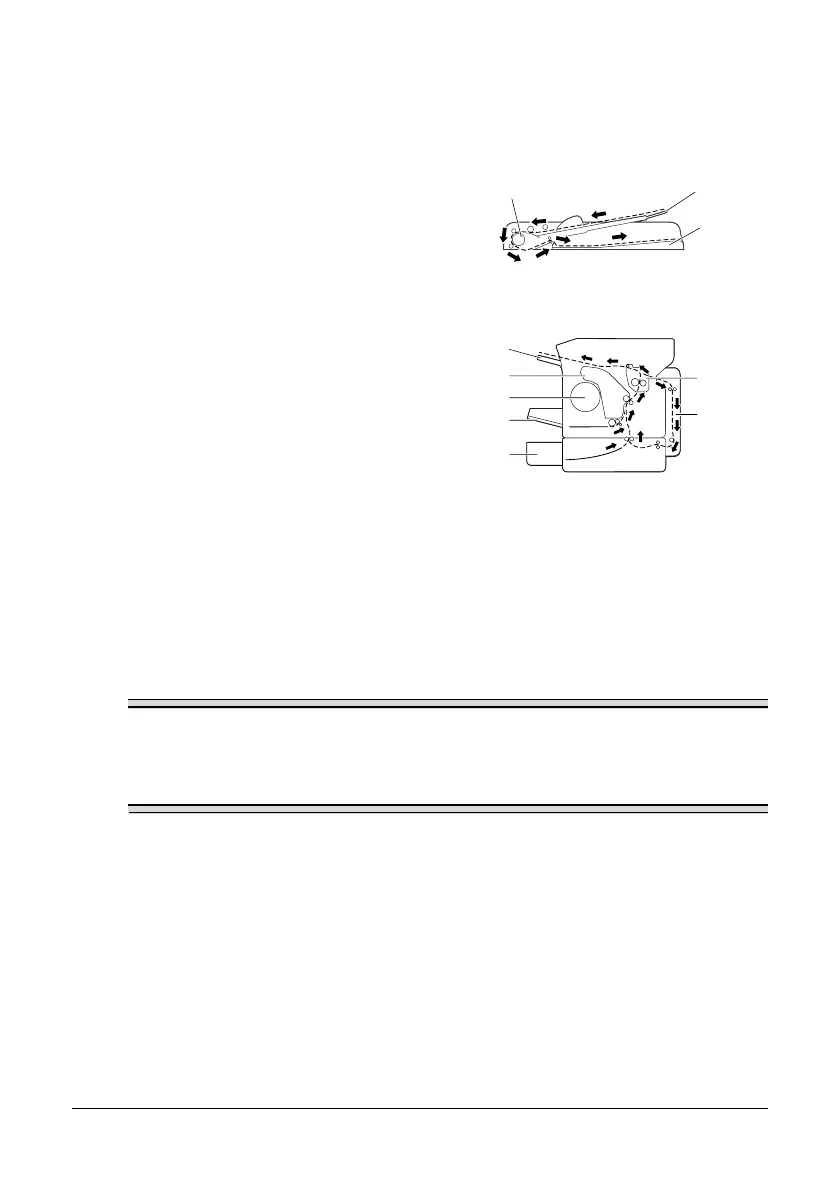

Understanding the Media Path
Understanding the media path will help you locate media misfeeds.
1. ADF media feed rollers
2. Document feed tray
3. Document output tray
4. Output tray
5. Imaging cartridge
6. Toner cartridge carousel
7. Tray 1 (multipurpose tray)
8. Tray 2 (optional lower feed unit)
9. Fuser unit
10. Duplex (optional)
Clearing Media Misfeeds
To avoid damage, always remove missfed media gently, without tearing it. Any
piece of media left in the machine, whether large or small, can obstruct the media
path and cause further misfeeds. Do not reload media that has missfed.
Note
The image is not fixed on the media before the fusing process. If you touch the
printed surface, the toner may stick to your hands, so be careful not to touch the
printed face when removing the missfed media. Make sure not to spill any toner
inside the machine.
4
9
10
5
6
7
8
1
2
3
Media path
Document path
To Next Page
