98
Media Handling
Loading a Document to be Copied

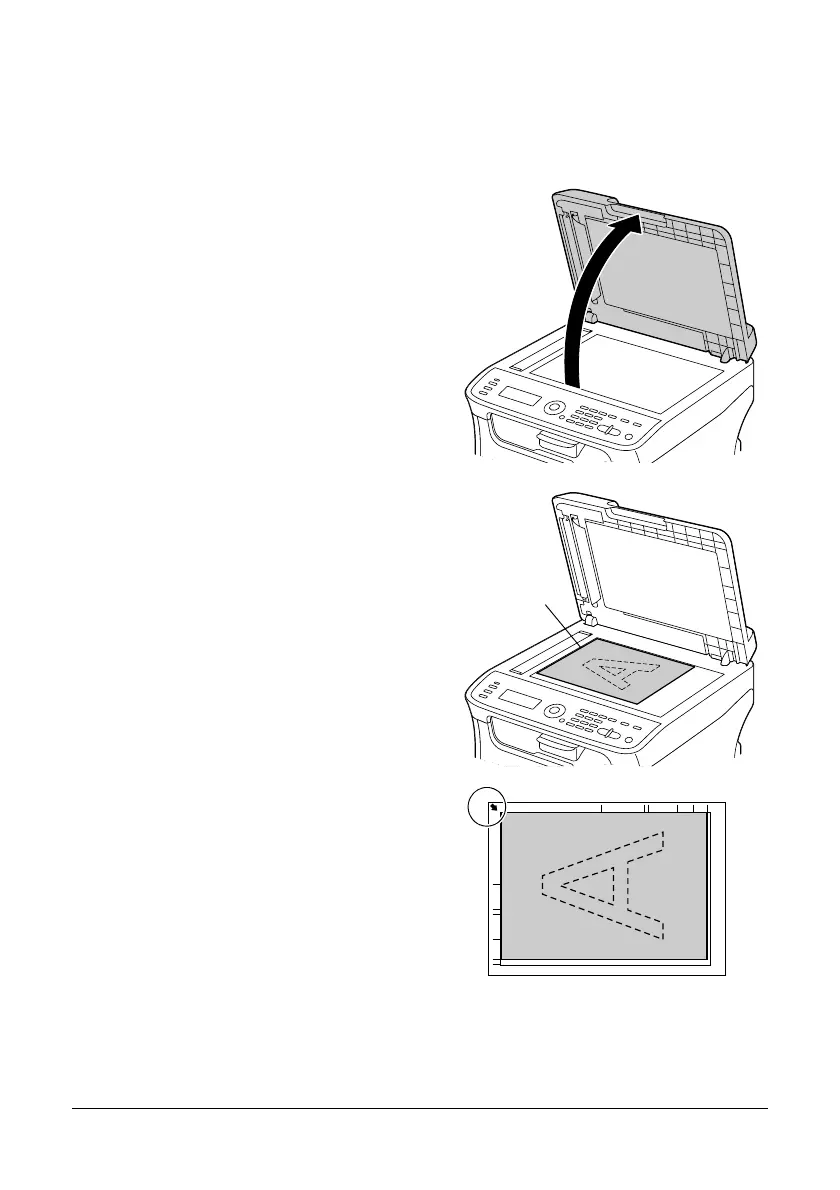

Placing a document on
the original glass
1
Lift to o
pen the ADF cover
.
2
Position the docu
ment on the origi-
nal glass.
"
Align th
e document wi
th the
arrow on the left side toward
the rear of the machine.
Docum
ent
97
99
