4.REPLACEMENT OF PARTS

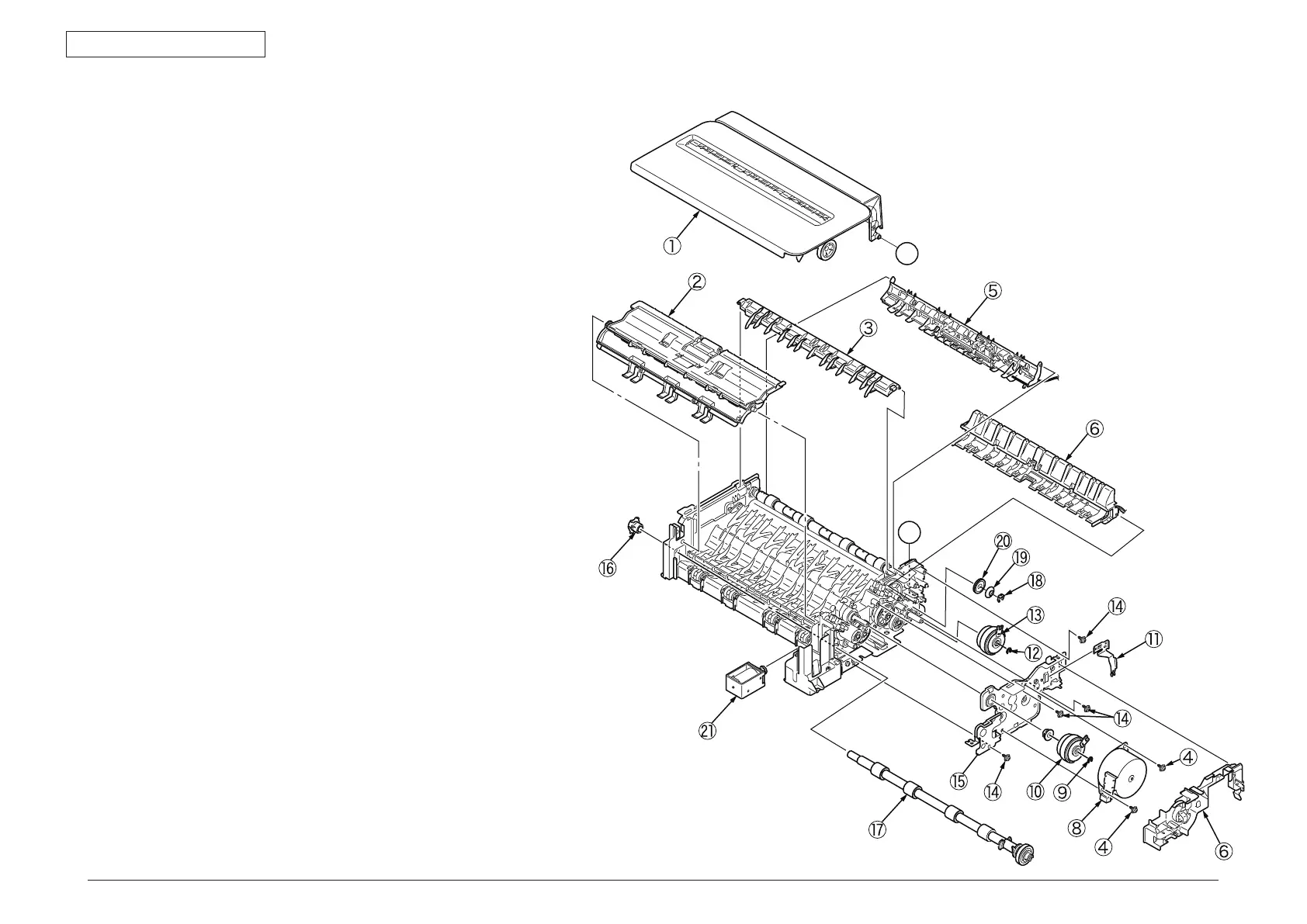

4.2.7.6 Cover-assy-top-ADF / Guide-assy / Roller / Motor / Clutch
/ Solenoid
(1) Remove the cover-assy-top-ADF
①
.
(2) Remove the guide-assy-A
②
.
(3
) Remove the guide-B
③
.
(4
) Remove the guide-cable
④
.
(5
) Remove the guide-assy-C
⑤
.
(6
) Remove the guide-assy-D
⑥
.
(7
) Remove the two screws (silver)
⑦
and remove the motor-pulse-belt
⑧
.
(8
) Remove the E-type retaining ring
⑨
and remove the clutch
⑩
.
(9
) Remove the plate-FG-S
⑪ .
(1
0) Remove the E-type retaining ring
⑫
and remove the clutch
⑬
.
(1
1) Remove the four screws (black)
⑭
and remove the plate-motor-ADF
⑮
.
(1
2) Remove the bearing-shaft
⑯
and remove the roller-assy-eject-ADF
⑰
.
(1
3) Remove the retainer-4
⑱
, spring
⑲
and washer-A
⑳
.
(1
4) Remove the solenoid
㉑
.
A
A

Oki MC561 Specifications

Printing Specifications

Print Speed	Up to 27 ppm color, 31 ppm black & white
Time to First Page	As fast as 8 seconds in color, 7.5 seconds in black & white
Print Resolution	Up to 1200 x 600 dpi

Copying Specifications

Copy Speed	Up to 27 cpm color, 31 cpm black & white
First Copy Out	As fast as 14 seconds in color, 12 seconds in black & white
Copy Resolution	Up to 600 x 600 dpi

Scanning Specifications

Scan Type	Color and black & white flatbed
Scan Resolution	Up to 1200 x 1200 dpi
Scan Speed	Approx. 3 sec./page color, approx 2 sec./page black & white at 300 dpi

Fax Specifications

Fax Modem	33.6 Kbps Super G3
Transmission Speed	3 seconds/page
Fax Resolution	Up to 200 x 400 dpi

System Memory

Standard Imaging RAM	256 MB
Max Imaging RAM	768 MB
SD Card Storage	4 GB standard; 16 GB optional

Paper Handling

Scanner RADF Capacity	Up to 50 letter/legal sheets
Standard Input	350 sheets (250 sheets via Main Tray + 100 sheets via MPT)
Maximum Input	880 sheets (with optional 530-sheet 2nd Paper Tray)

Environmental Specifications

Size	16.8" x 20" x 17.5" (42.7 cm x 50.9 cm x 44.4 cm)
Weight	63 lb. (29 kg)
Power Consumption	Operating Normal 570W; Max 1170W; Idle 100W; Power Save 20W; Deep Sleep <1.5W
