Oki MC561 User Manual

44473001TH Rev.1
87 /
Oki Data CONFIDENTIAL

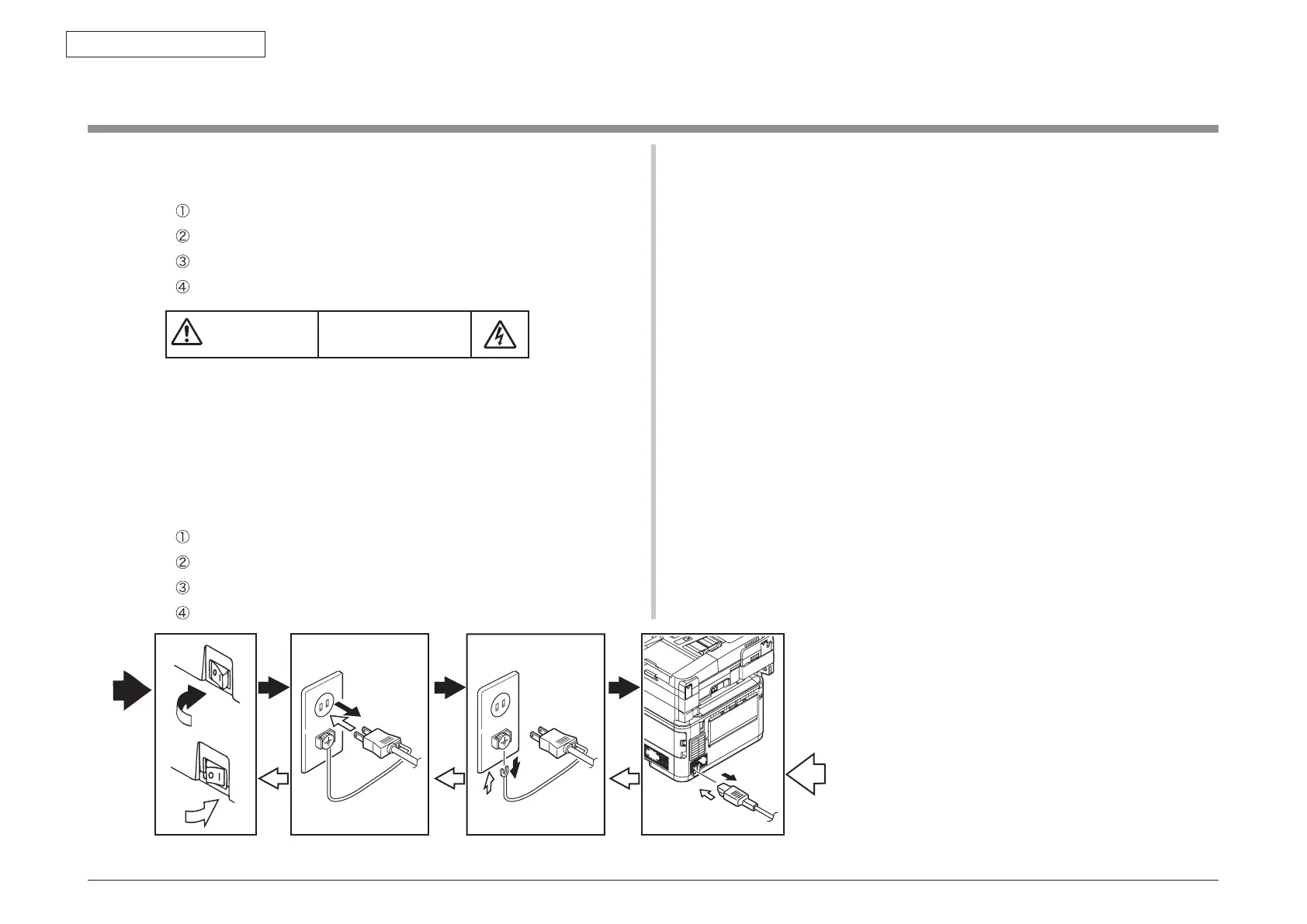

4.REPLACEMENT OF PARTS
4.1 Notes on replacement of parts
(1) Prior to replacing a part, unplug the AC cord and the interface cable.
(a) Be sure to use the following procedure to unplug the AC cord:
Turn off the printer [the power switch to the off (O) position].
Pull out the AC plug of the AC cord from the AC power source.
Remove the ground wire.
Unplug the AC cord and the interface cable.
(2) Do not disassemble the printer so long as it operates properly.
(3) Minimize disassembly. Do not detach parts not shown in the part replacement
procedure.
(4
) Use the replacement tools specified.
(5) Conduct disassembly in the order instructed, or part damage may occur.
(6) Removed small parts, such as screws or collars, should be tentatively installed in
their original positions.
(7
) Do not use static-prone gloves when handling integrated circuits (ICs), including
microprocessors, and ROM and RAM chips, or circuit boards.
(8
) Do not place printed-circuit boards (PCBs) directly on the printer or a floor.
Unplugging
Plugging
(b) Always use the following procedure to reconnect the printer:
Connect the AC cord and the interface cable to the printer.
Connect the ground wire.
Insert the AC plug into the AC power source.
Turn on the printer [the power switch to the on (I) position].
Warning
Electric shock hazard
When replacing the low-voltage power supply, electric shock may occur. Wear insulated
gloves, or be careful not to touch the conductors or terminals of the power supply directly.
After the AC cord is unplugged, the capacitor may take about one minute to discharge
completely or, due to PCB breakdown, could not discharge. Use caution about electric
shock.

Oki MC561 Specifications

Printing Specifications

Print Speed	Up to 27 ppm color, 31 ppm black & white
Time to First Page	As fast as 8 seconds in color, 7.5 seconds in black & white
Print Resolution	Up to 1200 x 600 dpi

Copying Specifications

Copy Speed	Up to 27 cpm color, 31 cpm black & white
First Copy Out	As fast as 14 seconds in color, 12 seconds in black & white
Copy Resolution	Up to 600 x 600 dpi

Scanning Specifications

Scan Type	Color and black & white flatbed
Scan Resolution	Up to 1200 x 1200 dpi
Scan Speed	Approx. 3 sec./page color, approx 2 sec./page black & white at 300 dpi

Fax Specifications

Fax Modem	33.6 Kbps Super G3
Transmission Speed	3 seconds/page
Fax Resolution	Up to 200 x 400 dpi

System Memory

Standard Imaging RAM	256 MB
Max Imaging RAM	768 MB
SD Card Storage	4 GB standard; 16 GB optional

Paper Handling

Scanner RADF Capacity	Up to 50 letter/legal sheets
Standard Input	350 sheets (250 sheets via Main Tray + 100 sheets via MPT)
Maximum Input	880 sheets (with optional 530-sheet 2nd Paper Tray)

Environmental Specifications

Size	16.8" x 20" x 17.5" (42.7 cm x 50.9 cm x 44.4 cm)
Weight	63 lb. (29 kg)
Power Consumption	Operating Normal 570W; Max 1170W; Idle 100W; Power Save 20W; Deep Sleep <1.5W
