4.REPLACEMENT OF PARTS

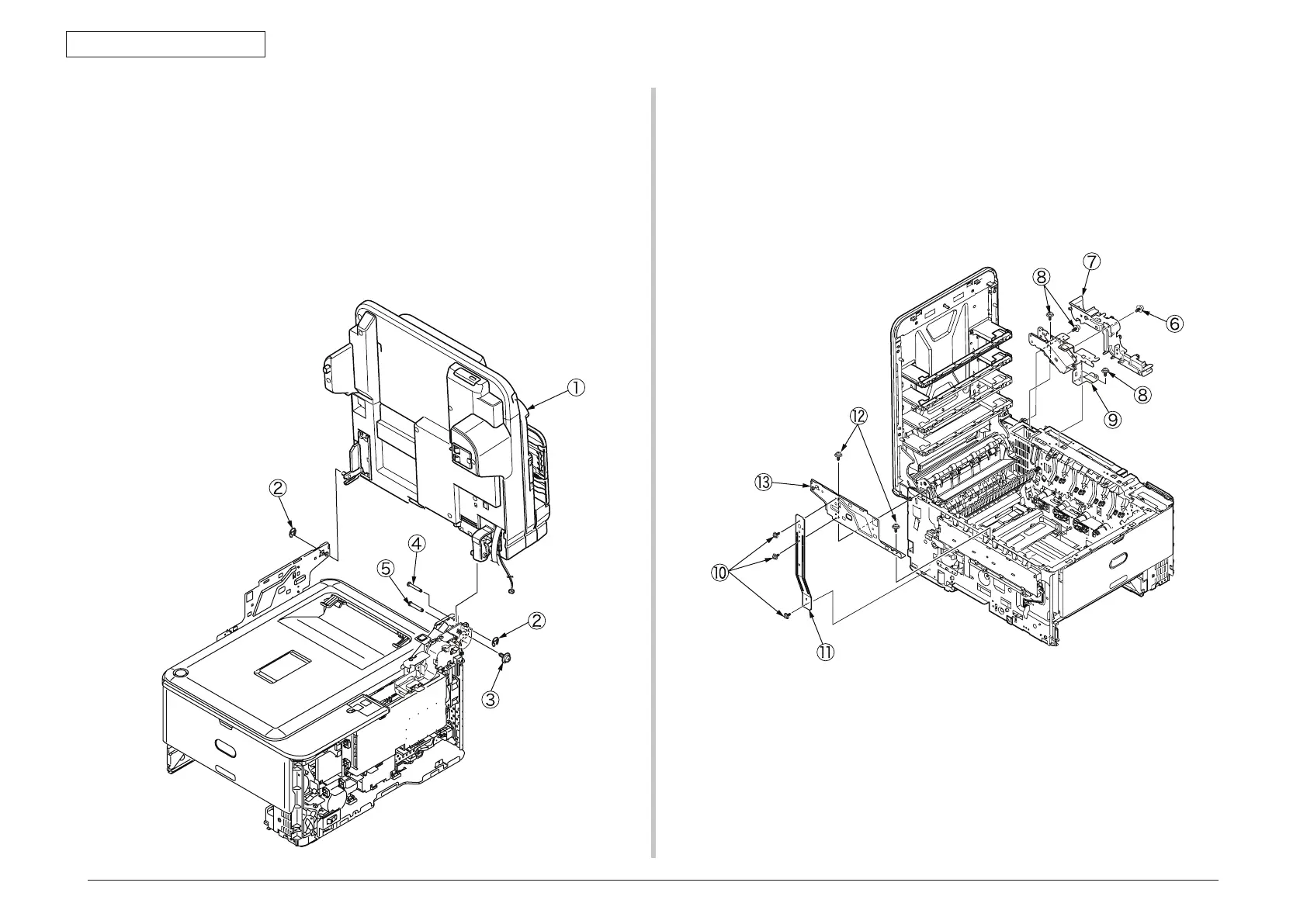

4.2.7 Scanner unit
(1) Remove the left side cover, the right side cover, the PU/CU PCB and the front
cover. (See 4.2.3, 4.2.4, 4.2.5 (4) and 4.2.6.)
(2) Remove the cover-hinge-R, the cover-stay-L and Remove the cover-hinge-RB. (See
4.2.6(2),(3),(4))
(3
) Open the scanner
①
and remove the two E-shaped retainer rings
②
and screw
③
.
(4
) Remove the shaft-stopper (hinge)
④
and remove the shaft-guide (hinge)
⑤
.
(7
) Remove the scanner
①
.
(8
) Remove the screw
⑥
and remove the guide cable
⑦
. Remove the three screws
⑧
and remove the hinge Assy FB
⑨
.
(9
) Remove the three screws
⑩
and remove the plate support R
⑪
. Remove the two
screws
⑫
and remove plate support stay L
⑬
.

Oki MC561 Specifications

Printing Specifications

Print Speed	Up to 27 ppm color, 31 ppm black & white
Time to First Page	As fast as 8 seconds in color, 7.5 seconds in black & white
Print Resolution	Up to 1200 x 600 dpi

Copying Specifications

Copy Speed	Up to 27 cpm color, 31 cpm black & white
First Copy Out	As fast as 14 seconds in color, 12 seconds in black & white
Copy Resolution	Up to 600 x 600 dpi

Scanning Specifications

Scan Type	Color and black & white flatbed
Scan Resolution	Up to 1200 x 1200 dpi
Scan Speed	Approx. 3 sec./page color, approx 2 sec./page black & white at 300 dpi

Fax Specifications

Fax Modem	33.6 Kbps Super G3
Transmission Speed	3 seconds/page
Fax Resolution	Up to 200 x 400 dpi

System Memory

Standard Imaging RAM	256 MB
Max Imaging RAM	768 MB
SD Card Storage	4 GB standard; 16 GB optional

Paper Handling

Scanner RADF Capacity	Up to 50 letter/legal sheets
Standard Input	350 sheets (250 sheets via Main Tray + 100 sheets via MPT)
Maximum Input	880 sheets (with optional 530-sheet 2nd Paper Tray)

Environmental Specifications

Size	16.8" x 20" x 17.5" (42.7 cm x 50.9 cm x 44.4 cm)
Weight	63 lb. (29 kg)
Power Consumption	Operating Normal 570W; Max 1170W; Idle 100W; Power Save 20W; Deep Sleep <1.5W
