2. DESCRIPTION OF OPERATION
2.3.1.5 Jam detection

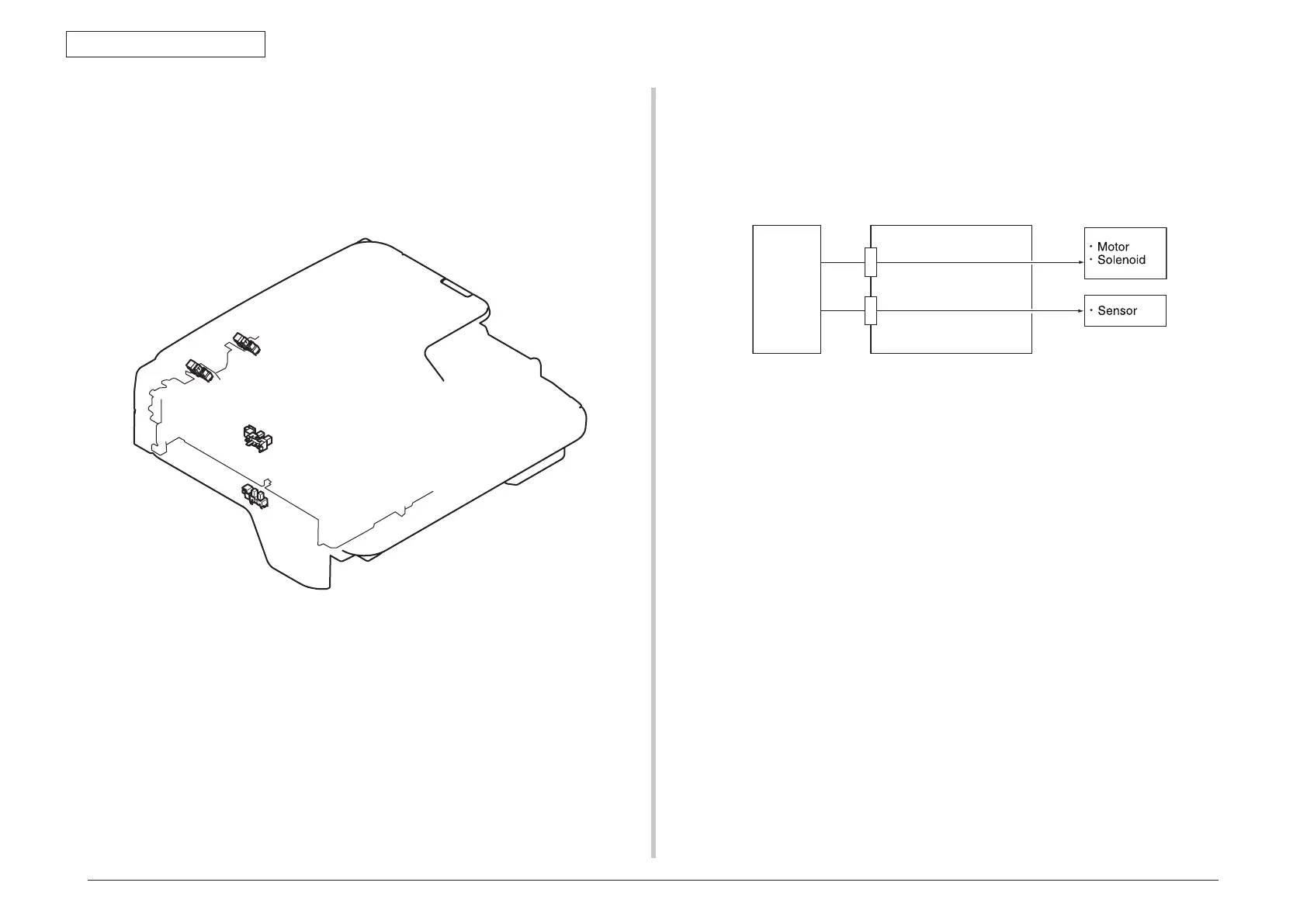

Document jam is detected by the sensors shown in the illustration.Check timing of the
document jam detection has already been memorized in the ROM of the sensor main PCB
beforehand so that jam occurrence can be judged from the information if a document exits or
not, at the corresponding sensor block.
2.3.1.6 Power supply
Overview of the power supply is shown in the illustration below the power supply block of the
MFP receives the power supply of two systems that are 24V power supply and 3.3V power
supply.
PI11
PI12
PI13
PI14
PI11 : Regist paper sensor
PI12 : Reverse paper sensor
PI13 : Cover open/close sensor
PI14 : Document set sensor
MOTIF
SNSIF
3.3V
24V
Connected
equipment
ADF Relay PCB
CN10
CN2

Oki MC561 Specifications

Printing Specifications

Print Speed	Up to 27 ppm color, 31 ppm black & white
Time to First Page	As fast as 8 seconds in color, 7.5 seconds in black & white
Print Resolution	Up to 1200 x 600 dpi

Copying Specifications

Copy Speed	Up to 27 cpm color, 31 cpm black & white
First Copy Out	As fast as 14 seconds in color, 12 seconds in black & white
Copy Resolution	Up to 600 x 600 dpi

Scanning Specifications

Scan Type	Color and black & white flatbed
Scan Resolution	Up to 1200 x 1200 dpi
Scan Speed	Approx. 3 sec./page color, approx 2 sec./page black & white at 300 dpi

Fax Specifications

Fax Modem	33.6 Kbps Super G3
Transmission Speed	3 seconds/page
Fax Resolution	Up to 200 x 400 dpi

System Memory

Standard Imaging RAM	256 MB
Max Imaging RAM	768 MB
SD Card Storage	4 GB standard; 16 GB optional

Paper Handling

Scanner RADF Capacity	Up to 50 letter/legal sheets
Standard Input	350 sheets (250 sheets via Main Tray + 100 sheets via MPT)
Maximum Input	880 sheets (with optional 530-sheet 2nd Paper Tray)

Environmental Specifications

Size	16.8" x 20" x 17.5" (42.7 cm x 50.9 cm x 44.4 cm)
Weight	63 lb. (29 kg)
Power Consumption	Operating Normal 570W; Max 1170W; Idle 100W; Power Save 20W; Deep Sleep <1.5W
