8. CONNECTION DIAGRAMS
8.3.2 Checking and indication of the revision number
(1) Print out MenuMap and check to make sure that the firmware revision number has
been updated.
(2) According to the revision number of the downloaded firmware, fill in the box(s) of an
ROM label attached to the position shown in the picture below.
8.3.3 Stamp of maintenance board indication
A designated article number is stamped in the area for maintenance board indication on the
CU board in accordance with the table below.
MC561/MC361/MC351
1 42 53

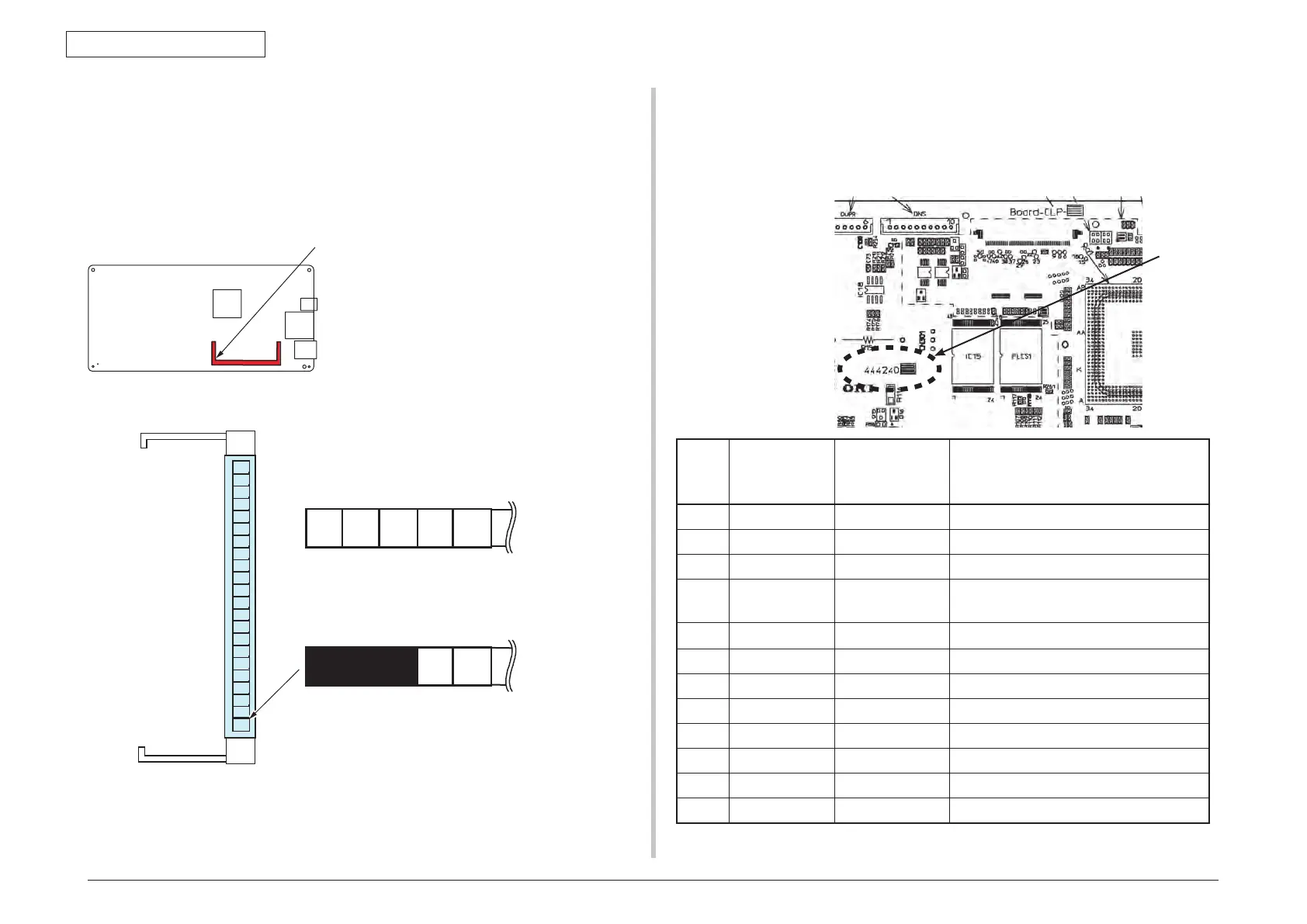

Position of the revision number label
Details of the revision number label
1 2 3
Sample 2 Revision 4
Sample 1 Revision 1
4 5
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
Series
No.
Stamp No.
[Maintenance
Board Series No.]
Board CLP(YU)
Series No.
Use for
21 444240 [21] CLP (44601504) CLP-4 maintenance board for MC561 (ODA)
22 444240 [22] CLP (44601504) CLP-4 maintenance board for MC561 (OEL)
25 444240 [25] CLP (44601504)
CLP-4 maintenance board for CX2731 MFP
(ODA)
31 444240 [31] CLP (44601503) CLP-3 maintenance board for MC361 (ODA)
32 444240 [32] CLP (44601503) CLP-3 maintenance board for MC361 (OEL)
42
444240 [42] CLP (44601503) CLP-3 maintenance board for MC351 (OEL)
Designated
stamping
location

Oki MC561 Specifications

Printing Specifications

Print Speed	Up to 27 ppm color, 31 ppm black & white
Time to First Page	As fast as 8 seconds in color, 7.5 seconds in black & white
Print Resolution	Up to 1200 x 600 dpi

Copying Specifications

Copy Speed	Up to 27 cpm color, 31 cpm black & white
First Copy Out	As fast as 14 seconds in color, 12 seconds in black & white
Copy Resolution	Up to 600 x 600 dpi

Scanning Specifications

Scan Type	Color and black & white flatbed
Scan Resolution	Up to 1200 x 1200 dpi
Scan Speed	Approx. 3 sec./page color, approx 2 sec./page black & white at 300 dpi

Fax Specifications

Fax Modem	33.6 Kbps Super G3
Transmission Speed	3 seconds/page
Fax Resolution	Up to 200 x 400 dpi

System Memory

Standard Imaging RAM	256 MB
Max Imaging RAM	768 MB
SD Card Storage	4 GB standard; 16 GB optional

Paper Handling

Scanner RADF Capacity	Up to 50 letter/legal sheets
Standard Input	350 sheets (250 sheets via Main Tray + 100 sheets via MPT)
Maximum Input	880 sheets (with optional 530-sheet 2nd Paper Tray)

Environmental Specifications

Size	16.8" x 20" x 17.5" (42.7 cm x 50.9 cm x 44.4 cm)
Weight	63 lb. (29 kg)
Power Consumption	Operating Normal 570W; Max 1170W; Idle 100W; Power Save 20W; Deep Sleep <1.5W
