36
Wiring Section 2-4

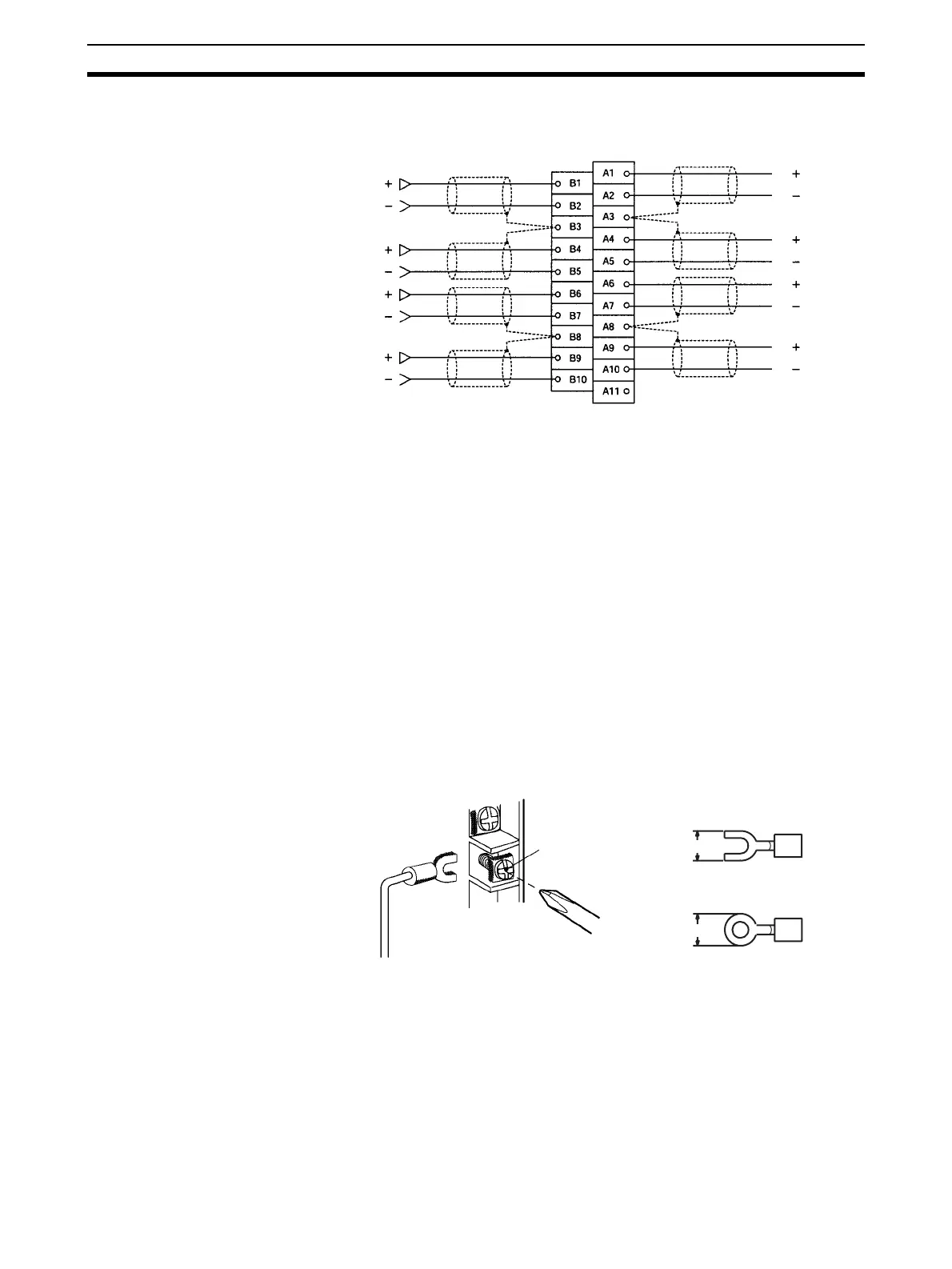

2-4-4 Input Wiring Example
CS1W-AD041-V1/AD081-V1
Note 1. When using current inputs, pins IN1 to IN8 (pins IN1 to IN4 for the CS1W-
AD041-V1) of the voltage/current switch must be set to ON. Refer to 2-3-4
Voltage/Current Switch (CS1W-AD041-V1/AD081-V1) for further details.
2. For inputs that are not used, either set to “0: Not used” in the input number
settings (refer to 2-6-1 Input Settings and Conversion Values) or short-cir-
cuit the voltage input terminals (V+) and (V–). If this is not performed and
the inputs are set for the 1 to 5-V or 4 to 20-mA range, the Line Disconnec-
tion Flag will turn ON.
3. Crimp-type terminals must be used for terminal connections, and the
screws must be tightened securely. Use M3 screws and tighten them to a
torque of 0.5 N·m.
4. When connecting the shield of the analog input cables to the Unit’s AG ter-
minals, as shown in the above diagram, use a wire that is 30 cm max. in
length if possible.
!Caution Do not connect anything to N.C. terminals shown in the wiring diagram on
page 32.
Connecting shielded cable to the Unit’s AG terminals can improve noise resis-
tance.
Input 2
Input 6
Shield
See note 4.
See note 4.
Input 1
Input 4
Input 8
Input 3
Input 5
Input 7
Shield
Shield
Shield
6.0 mm max.
6.0 mm max.
M3 screw
Fork type
Round type
To Next Page
