5-2
Part Names and Functions Section 3-1
Parts, Installa-
tion, and Wiring

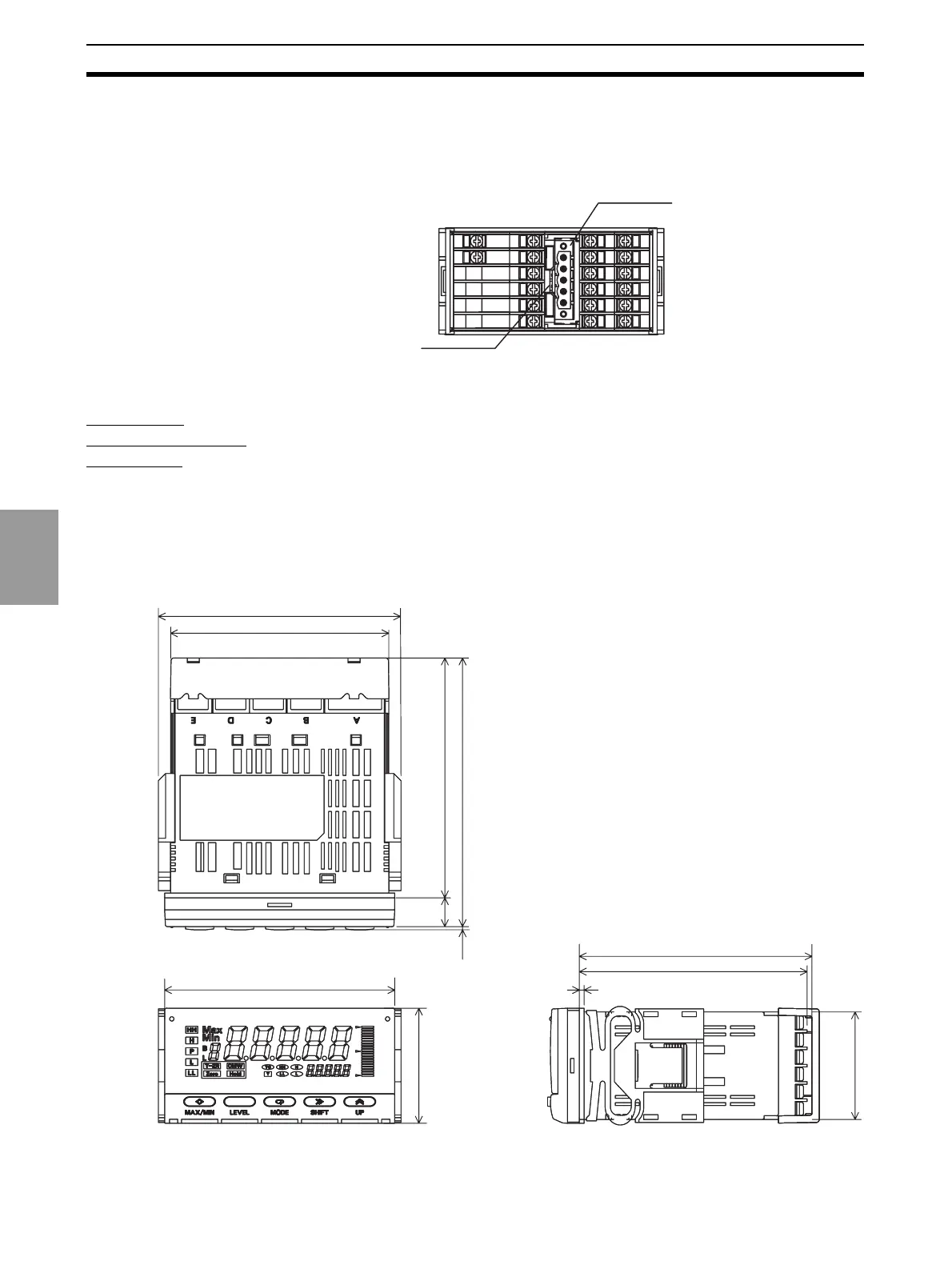

3-1 Part Names and Functions
3-1-1 Part Names
DeviceNet
Communications
Connector
The DeviceNet communications connector is used to connect the communica-
tions cable to the DeviceNet network. The DeviceNet communications power
is also supplied through this connector. The connector provided with the Digi-
tal Indicator is a HR31-5.08P-5SC(01) (Hirose Electric). The provided connec-
tor crimp terminals are HR31-SC-121 (Hirose Electric) and are for Thin
DeviceNet Communications Cables. The K3HB-DRT cannot be used with any
other connector than the DeviceNet one provided.
3-1-2 External Dimensions
DeviceNet connecto
MS/NS indicators
Top: NS
Bottom: MS
M
S
N
S
101.2
91
100
12
(112)
1.3
96
48
97
95
2
44.8
(Unit: mm)
