4-1 Overview
I/O memory in the master can be allocated to data from the K3HB-DRT Digital
Indicator, such as data from the Digital Indicator’s variable area, merely by
specifying what Digital Indicator data is to be transferred to where.
Data is automatically exchanged between the master and Digital Indicator,
allowing the Digital Indicator to be controlled and monitored from the master
without requiring special communications programming.
4-2 I/O Allocation
The Configurator can be used to select any data from the list of allocation
parameters for the Digital Indicator and then allocate the data in a user-set
destination.

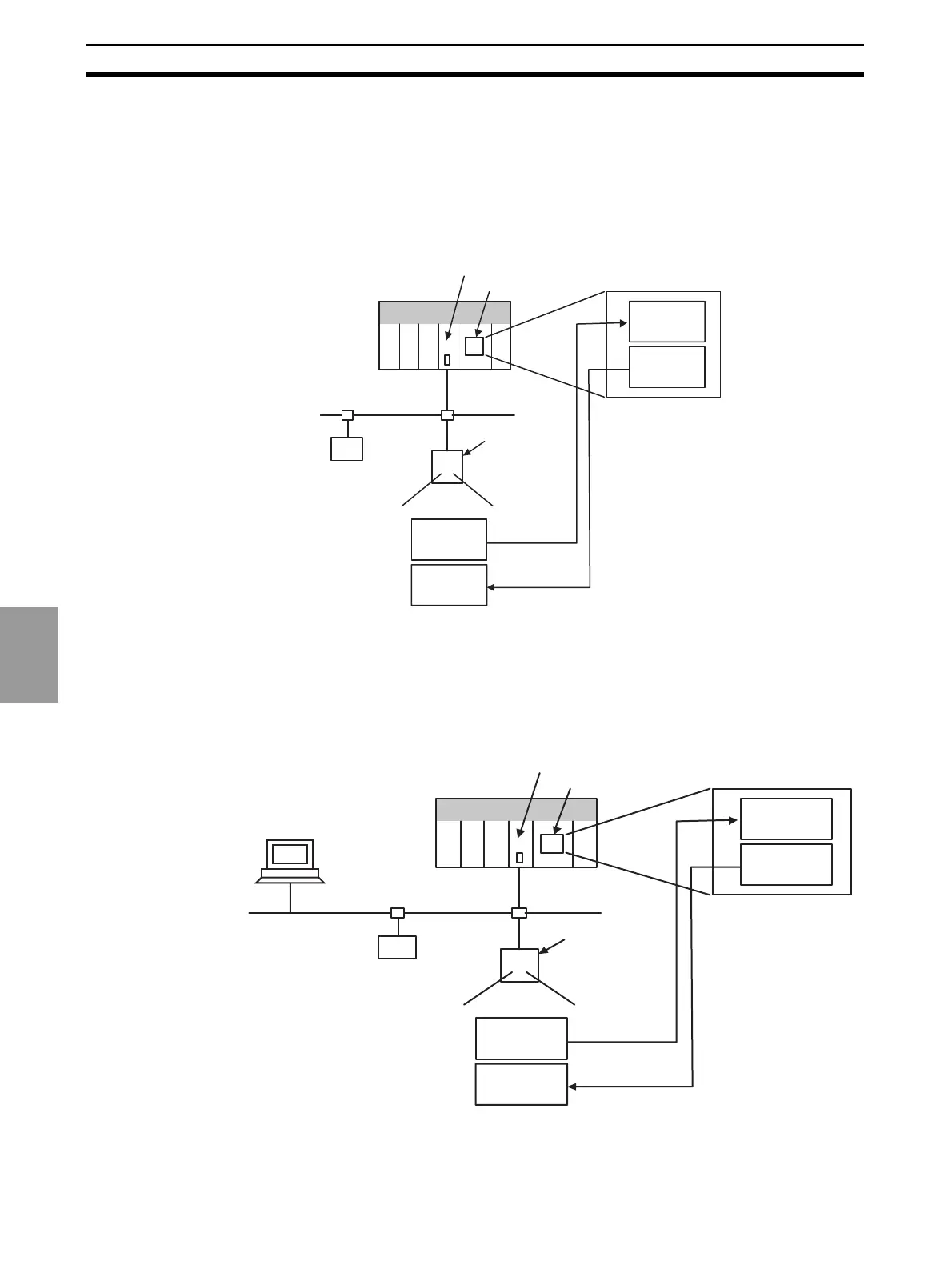

DeviceNet
DeviceNet Master
CPU Unit
K3HB-DRT
Digital Indicator
IN Area
Measurement
values, etc.
Allocated data
IN Area
OUT Area
Master CPU Unit I/O memory
OUT Area
Operation
commands, etc.
DeviceNet
DeviceNet Master
CPU Unit
K3HB-DRT
Digital Indicator
IN Area
Allocated data
OUT Area
IN Area
OUT Area
Master CPU Unit I/O memory
DeviceNet Configurator
