Appendix 5 Preparing Connecting Cables
A-36

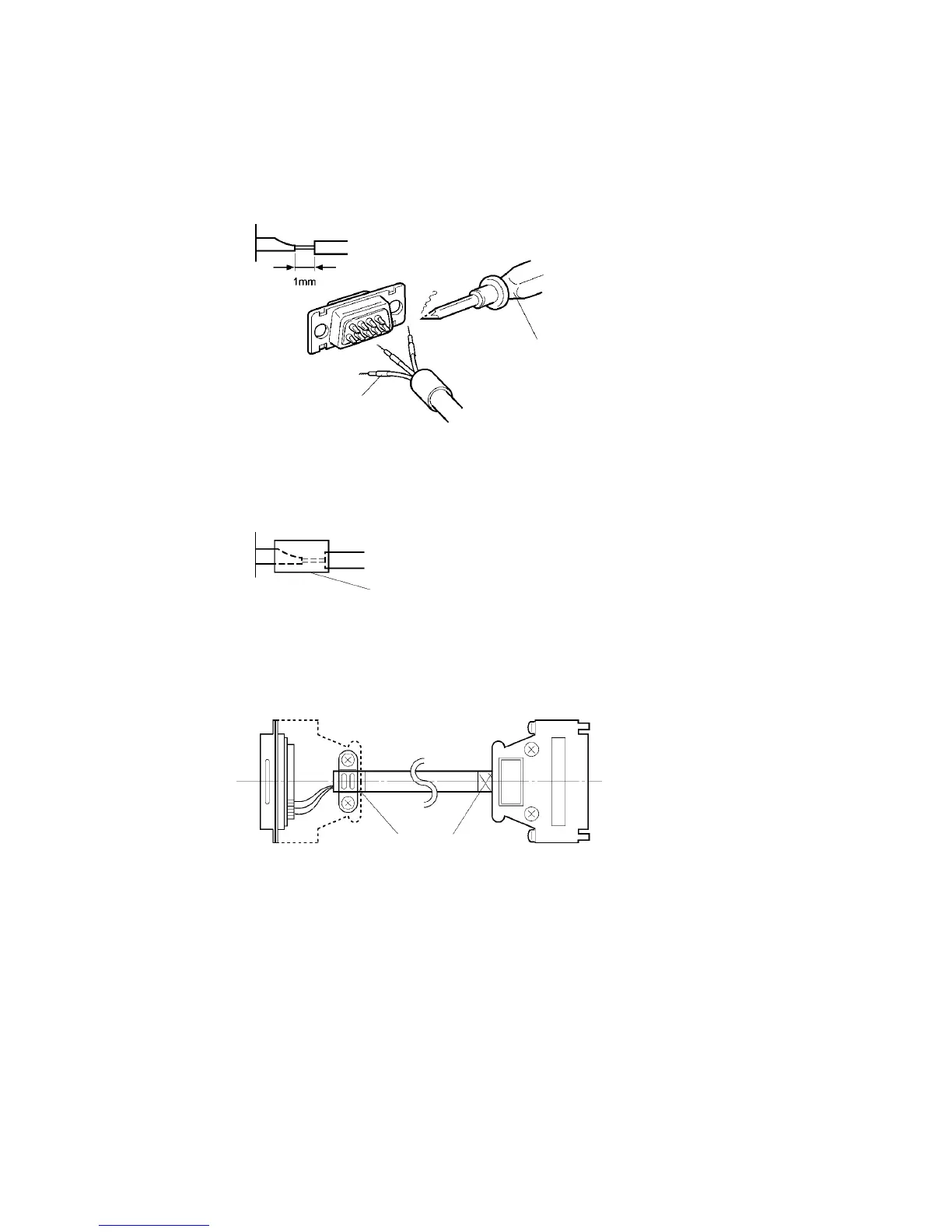

A-5-2 Soldering
1. Pass a heat-shrinking tube over each wire.
2. Pre-solder each wire and connector terminal.
3. Solder each of the wires to the connector terminals.
Heat-shrinking tube
Internal diameter: 1.5
Length = 10
Soldering iron
4. Replace the heat-shrinking tube up to the soldered section, and shrink the tube onto
the wire by applying heat using a soldering gun.
Heat-shrinking tube
A-5-3 Hood Assembly
Assemble the hood as shown in the following diagram.
Aluminum foil tape
End with Connector End without Connector
