1-1 Overview

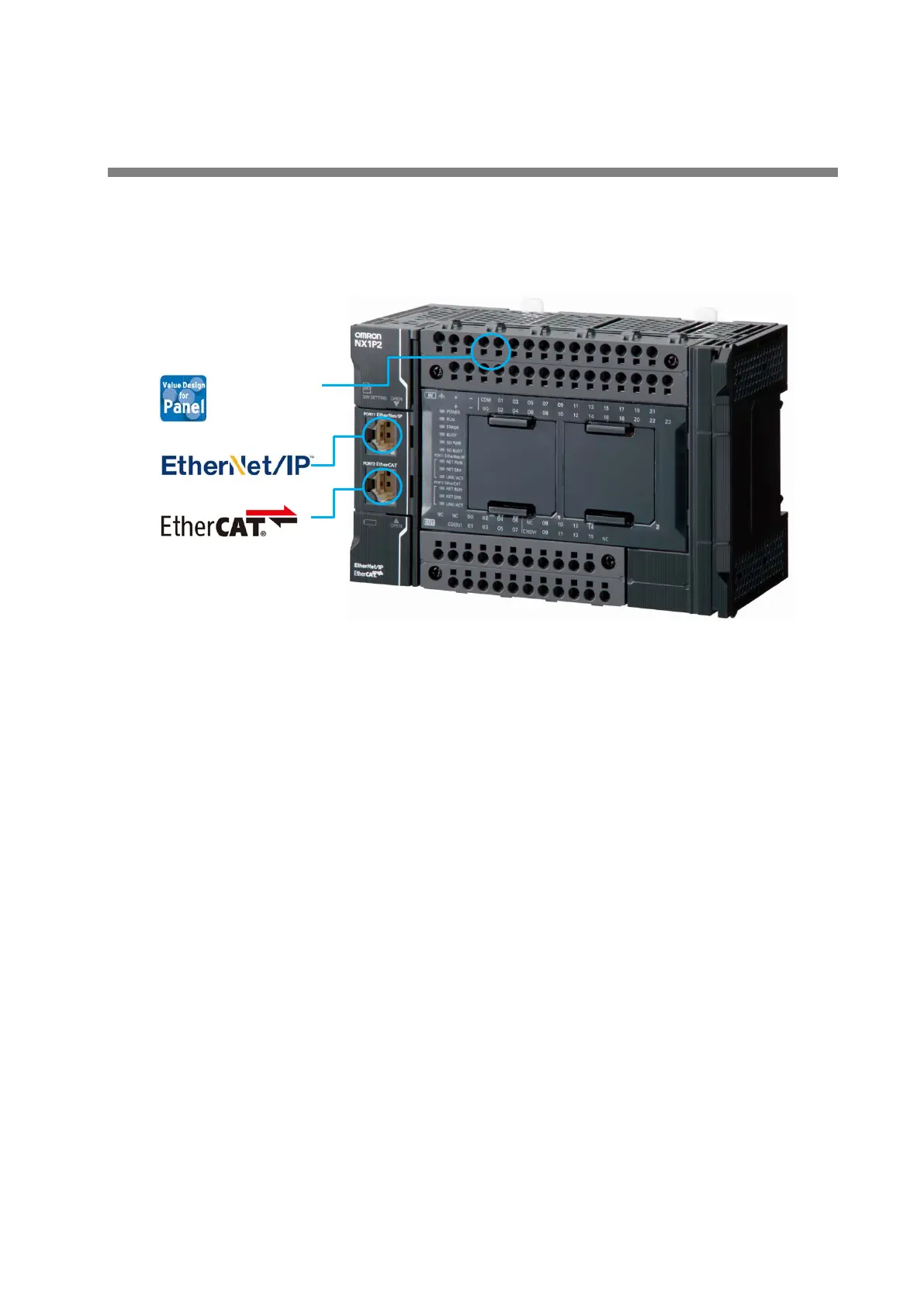

The photo below shows an NX1P2 CPU Unit. Push-In Plus terminal blocks are used to
connect a power supply and I/O devices.
EtherCAT and EtherNet/IP ports are built in.
Features
1. The built-in EtherCAT port and advanced motion control make machines faster and more
precise
• Up to four axes of motion control. Electronic cams and interpolation increase machine
speed and precision
• EtherCAT simplifies the wiring to up to eight servo systems including for single-axis
position control
2. Networks for IoT
• EtherNet/IP enables communications with a host PC and data links between
NJ/NX-series Controllers and CJ-series PLCs
3. Push-In Plus terminal blocks
• Push-In Plus connection reduces wiring time when a control panel is built
The environment for programming the NX1P makes development faster and easier.
This Guide describes the features of NX1P programming and how to program the NX1P
using the Sysmac Studio.
