80

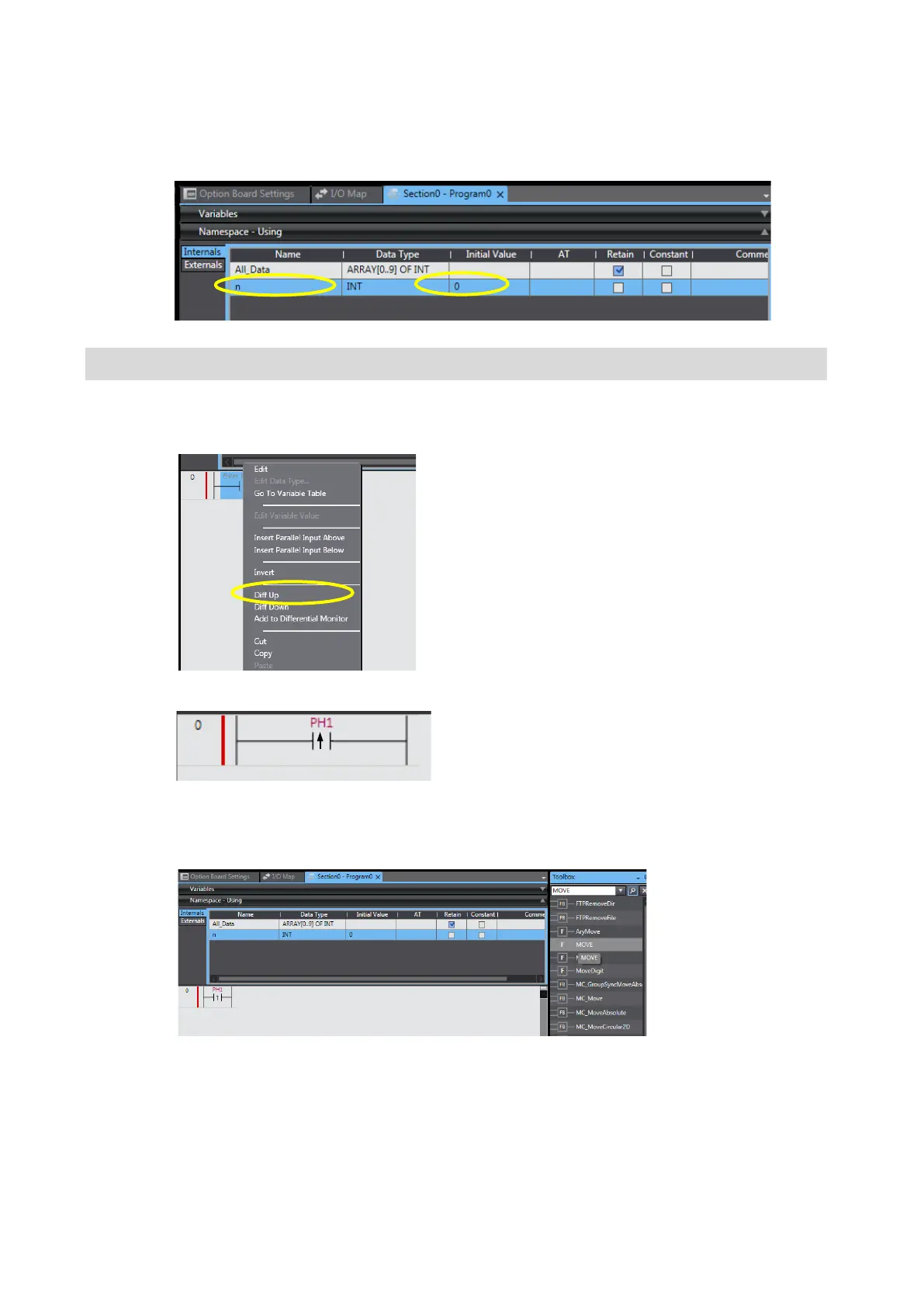

4. Right-click in the internal variable table and select Create New from the menu.
Register INT variable n that is the element number of All_Data[n].
Enter “0” into the Initial Value Column in the variable table.
4-2-8 Entering Programming Code
1. Insert input PH1 and set upward differentiation. Select a connecting line and press the C
Key. Right-click the input and select Diff Up from the menu or press the @ Key.
Click Enter Variable and enter “PH1”.
2. Add the MOVE instruction. Search for “MOVE” in the Toolbox. Add the MOVE function by
dragging it from the Toolbox. (Or press the I Key and enter “MOVE”.)
