5-3 Creating a Program

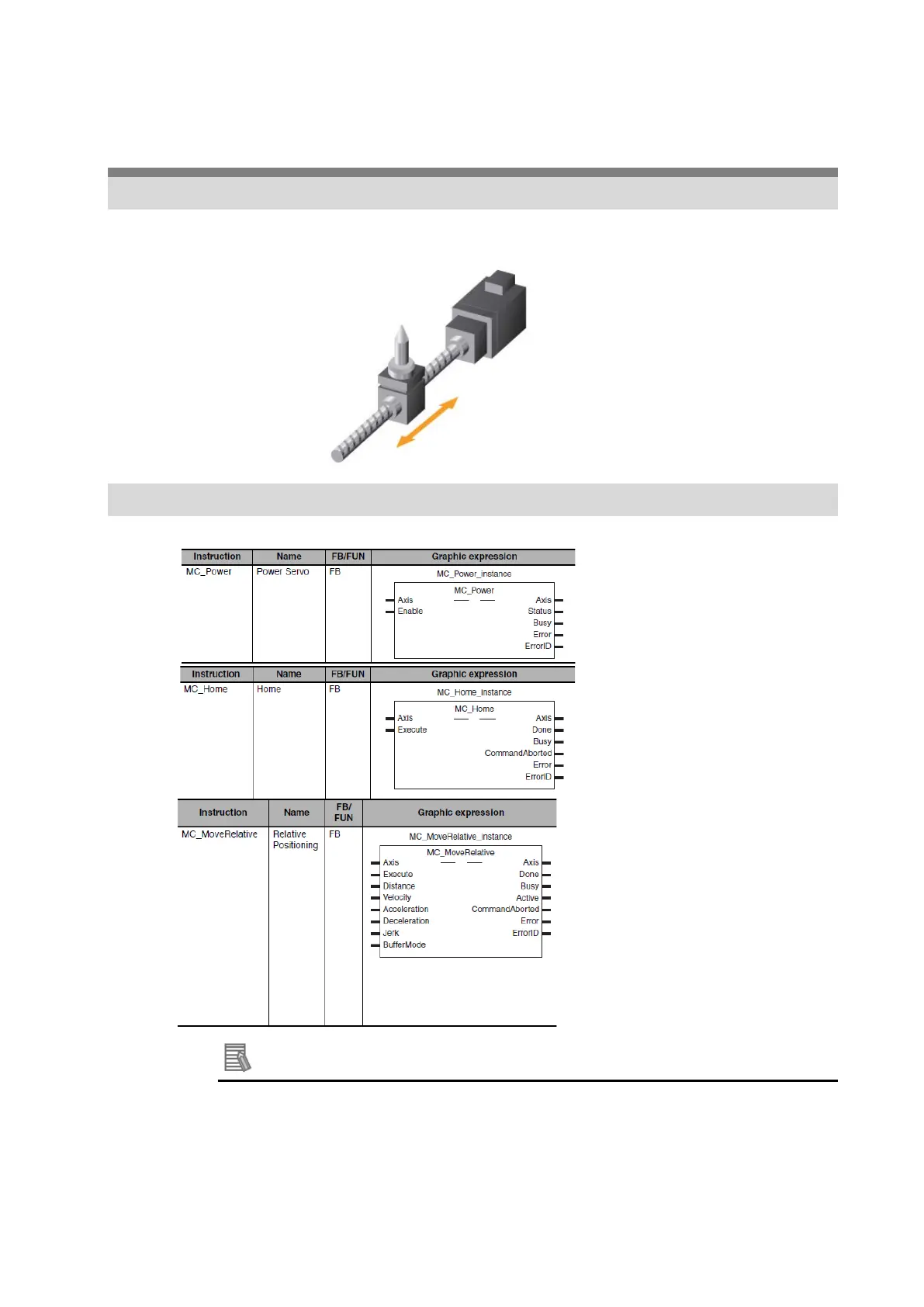

5-3-1 Overview of the Ladder Program
Create a program using single-axis motion FBs to move a ball screw forward and backward
as shown below.
5-3-2 Motion FBs to Use
Three motion FBs are used for this exercise.
Additional Information
MC_Home is the Home instruction. Set the homing operation in the Homing Settings
Tab Page that is displayed by double-clicking Axis Settings - MC_Axis000. Zero
position preset (default) is used for this exercise.
Zero position preset: The present value becomes 0 when the MC_Home
instruction is executed
