7-69
7 Tag Data Link Functions
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-2 Setting Tag Data Links
7
7-2-12 Starting and Stopping Tag Data Links
• Change the Tag Data Link Start Switch to TRUE, while the Tag Data Link Communications
Stop Switch is FALSE. If the Tag Data Link Stop Switch is TRUE, the tag data links do not start
even if the Tag Data Link Start Switch is changed to TRUE. Furthermore, if the Tag Data Link
Start Switch and the Tag Data Link Stop Switch are both TRUE, an error occurs, the Multiple
Switches TRUE Error system-defined variable changes to TRUE, and the event is recorded in
the event log.
• After you start the tag data links, do not force the Tag Data Link Start Switch to change to
FALSE from the user program or from the Sysmac Studio. It will change to FALSE automati-
cally.
Using the Network Configurator
You can select I/O Connection - Start or I/O Connection - Stop from the Network Menu to start
and stop tag data links for individual devices.
Using the Network Configurator

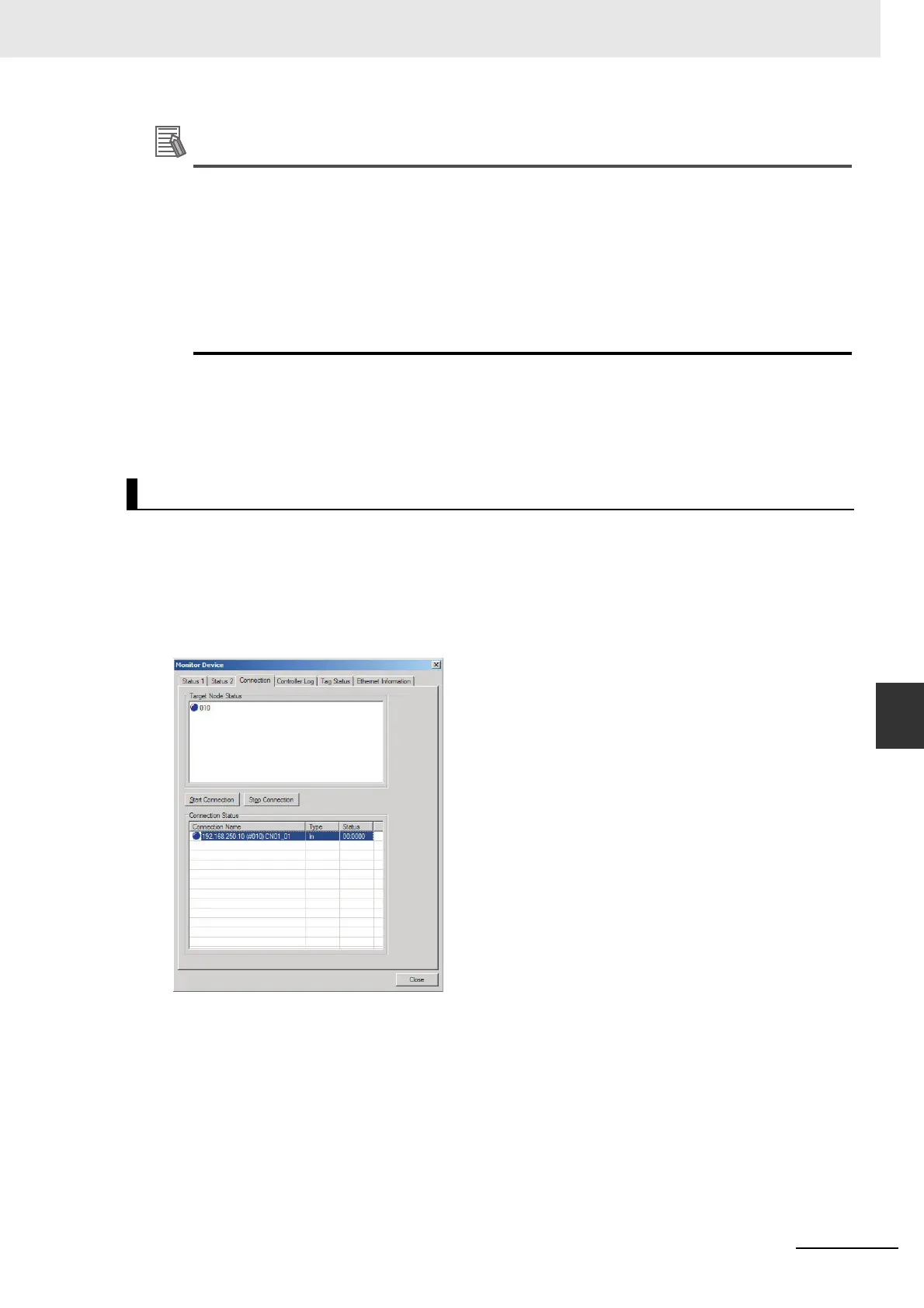

You can start and stop tag data links for individual devices using the Connection Tab Page in the
Monitor Device Dialog Box. This applies only to tag data links for which the device is the originator.
Select Monitor from the Device Menu to access the Monitor Device Dialog Box. When using an
NX701 CPU Unit, you can individually start and stop the tag data links of the built-in EtherNet/IP
ports 1 and 2 connected to the Network Configurator.
Start Connection Button:
Starts all connections for which the device is the originator.
Stop Connection Button:
Stops all connections for which the device is the originator.
Starting and Stopping Tag Data Links for Individual Devices
To Next Page
