Onkyo CR-N7 User Manual

14

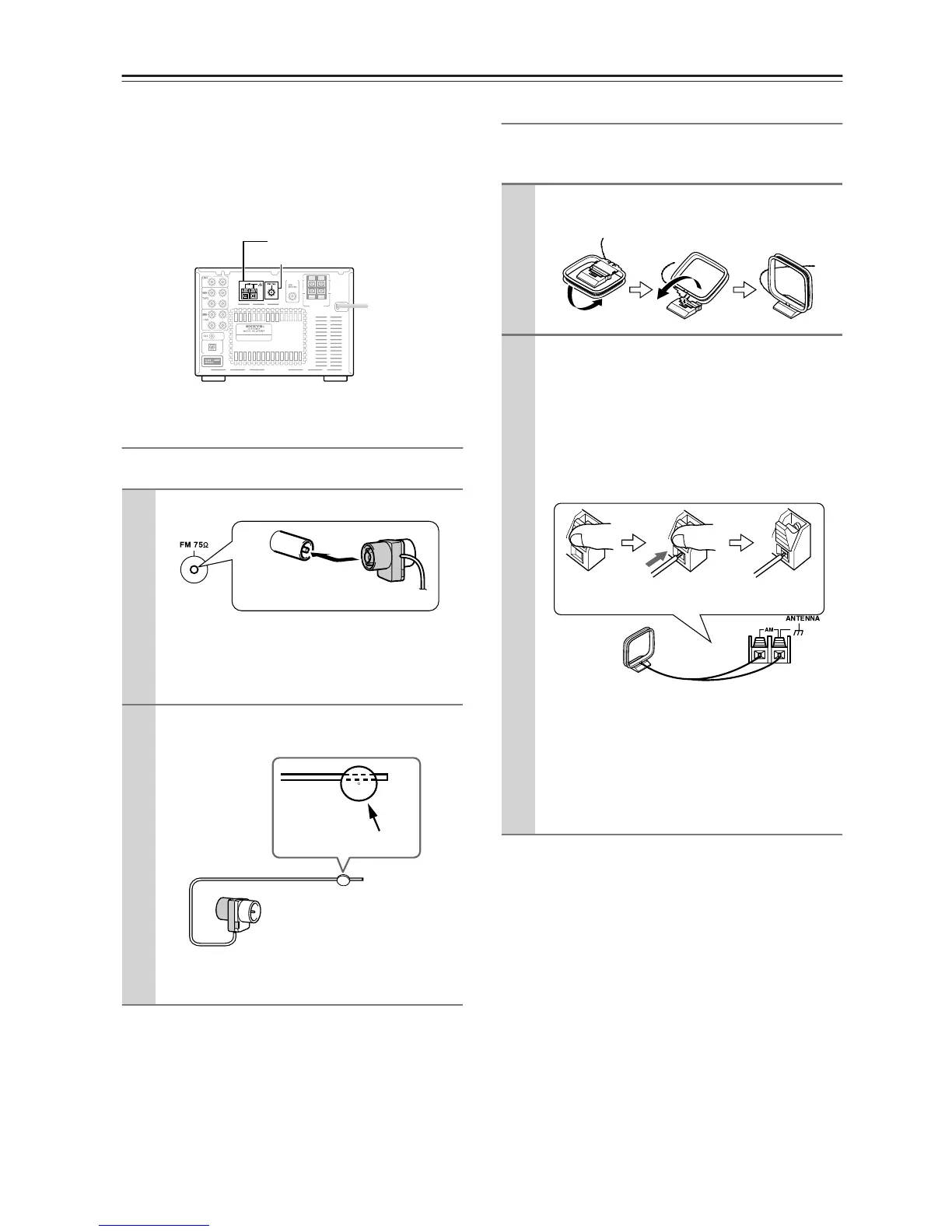

Connecting Antenna
This section explains how to connect the supplied indoor
FM antenna and AM loop antenna, and how to connect
commercially available outdoor FM and AM antennas.
The CD receiver won’t pick up any radio signals without
any antenna connected, so you must connect the antenna
to use the tuner.
Connecting the Indoor FM Antenna
The supplied indoor FM antenna is for indoor use only.
If you cannot achieve good reception with the supplied
indoor FM antenna, try a commercially available out-
door FM antenna instead (see page 15).
Connecting the AM Loop Antenna
The supplied indoor AM loop antenna is for indoor use
only.
If you cannot achieve good reception with the supplied
indoor AM loop antenna, try using it with a commer-
cially available outdoor AM antenna (see page 15).
1
Attach the FM antenna, as shown.
Once your CD receiver is ready for use, you’ll
need to tune into an FM radio station and adjust
the position of the FM antenna to achieve the best
possible reception.
2
Use thumbtacks or something similar to
fix the FM antenna into position.
Caution: Be careful that you don’t injure yourself
when using thumbtacks.
SPEAKERS
PRE
OUT
R
L
REMOTE
CONTROL
OPTICAL
IN
OUT
IN
IN
OUT
R
L
R L
DIGITAL OUT
ANTENNA
AM antenna push terminals
FM antenna connector
Insert the plug fully
into the jack.
Thumbtacks, etc.
1
Assemble the AM loop antenna, inserting
the tabs into the base, as shown.
2
Connect both wires of the AM loop
antenna to the AM push terminals, as
shown.
(The antenna’s wires are not polarity sensitive, so
they can be connected either way around).
Make sure that the wires are attached securely and
that the push terminals are gripping the bare
wires, not the insulation.
Once your CD receiver is ready for use, you’ll
need to tune into an AM radio station and adjust
the position of the AM antenna to achieve the best
possible reception.
Keep the antenna as far away as possible from
your CD receiver, TV, speaker cables, and power
cords.
Push Insert wire Release

Onkyo CR-N7 Specifications

Power

power supply	AC 230–240 V, 50 Hz
power consumption	68 W
stand-by power consumption	0.3 W

Audio Inputs and Outputs

analog inputs	LINE, TAPE, HDD
digital outputs	Optical: 1
analog outputs	TAPE, HDD

Amplifier Specifications

power output	14 W + 14 W (8 Ω, 40 Hz–20 kHz THD, 0.4%)
dynamic power	26 W + 26 W (4 Ω, JEITA)
damping factor	25 (8 Ω)

Tuner Specifications

fm tuning frequency range	87.5 MHz–108 MHz
am tuning frequency range	522 kHz–1611 kHz
stereo separation	40 dB (1 kHz)

CD Specifications

frequency response	10 Hz–20 kHz
audio dynamic range	92 dB
thd (total harmonic distortion)	0.009 %

Weight and Dimensions

dimensions	205 W x 147 H x 356 D mm
weight	4.3 kg
