Connecting External Devices—Continued

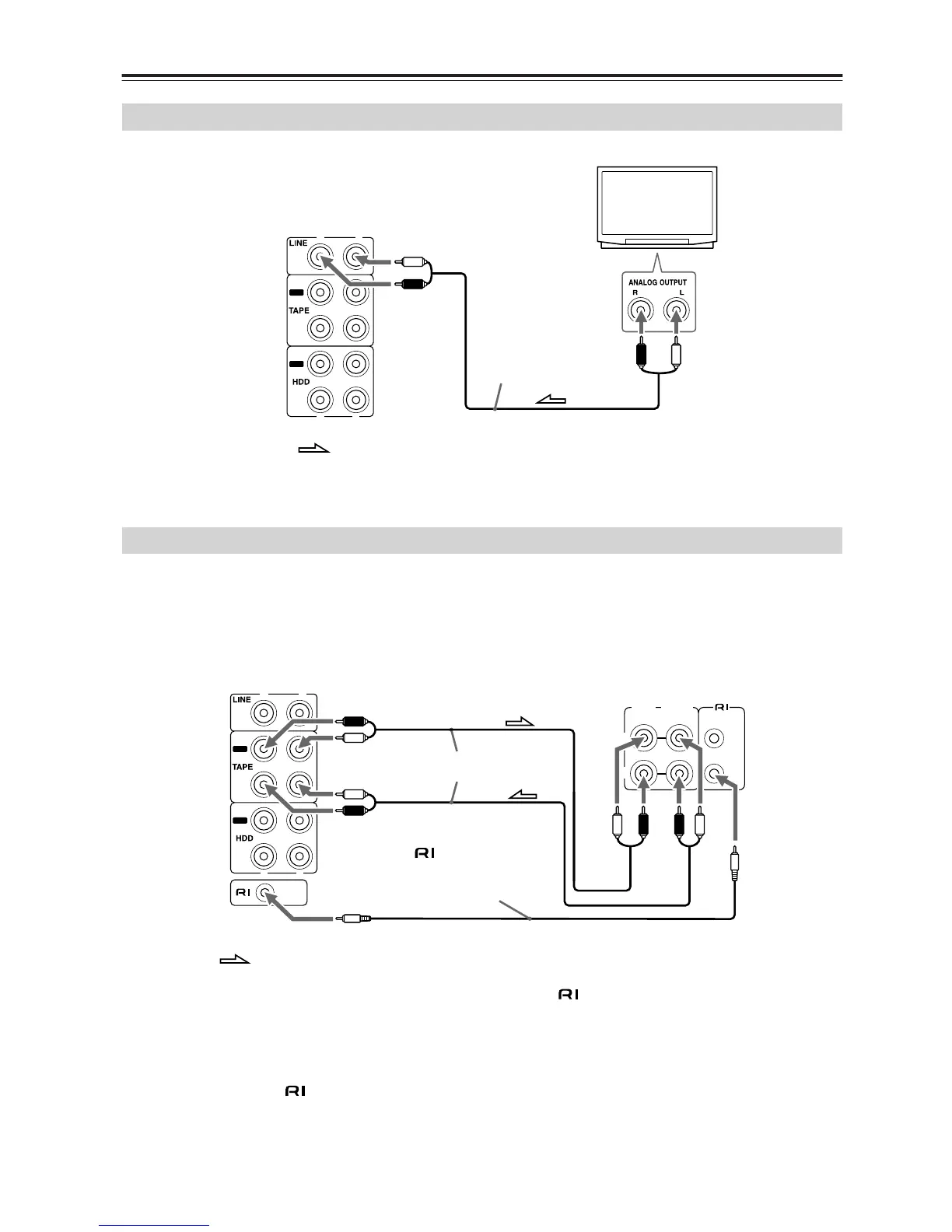

Connect the LINE IN terminal on the CD receiver and an audio output terminal on the TV.
Tip:
To output sound from TV, switch the input selector to LINE.
The following diagram illustrates how to connect an optional Onkyo stereo cassette tape deck.
Connect the CD receiver TAPE OUT jacks to the tape deck’s INPUT (REC) jacks, and the CD receiver TAPE IN jacks
to the tape deck’s OUTPUT (PLAY) jacks.
(The following diagram depicts an example of connection.)
What does connecting an Onkyo stereo cassette tape deck using an cable enable you to do?
• You can control a connected Onkyo stereo cassette tape deck using the supplied remote controller. You also need to
connect the analog audio cable.
• When the connected Onkyo stereo cassette tape deck plays back, the input selector on the CD receiver is automati-
cally switched to TAPE.
• If a component has two terminals, you can use either one to connect to the CD receiver. The other one can be
used to daisy chain with another component.
Connection for TV Audio Signal
IN
OUT
IN
IN
OUT
R
L
R L
: Signal flow
CD receiver’s
rear panel
white
red
red
white
Analog audio cable (RCA)
Connecting an Onkyo Stereo Cassette Tape Deck
IN
OUT
IN
IN
OUT
R
L
R L
REMOTE
CONTROL
(REC) (PLAY)
INPUT OUTPUT
REMOTE
CONTROL
L
R
: Signal flow
CD receiver’s rear panel
Onkyo stereo cassette
tape deck rear panel
Analog audio cable
(RCA)
cable supplied
with the Onkyo stereo
cassette tape deck
white
red
white
red red
red
white white

Onkyo CR-N7 Specifications

Power

power supply	AC 230–240 V, 50 Hz
power consumption	68 W
stand-by power consumption	0.3 W

Audio Inputs and Outputs

analog inputs	LINE, TAPE, HDD
digital outputs	Optical: 1
analog outputs	TAPE, HDD

Amplifier Specifications

power output	14 W + 14 W (8 Ω, 40 Hz–20 kHz THD, 0.4%)
dynamic power	26 W + 26 W (4 Ω, JEITA)
damping factor	25 (8 Ω)

Tuner Specifications

fm tuning frequency range	87.5 MHz–108 MHz
am tuning frequency range	522 kHz–1611 kHz
stereo separation	40 dB (1 kHz)

CD Specifications

frequency response	10 Hz–20 kHz
audio dynamic range	92 dB
thd (total harmonic distortion)	0.009 %

Weight and Dimensions

dimensions	205 W x 147 H x 356 D mm
weight	4.3 kg
