Onkyo CR-N7 User Manual

16

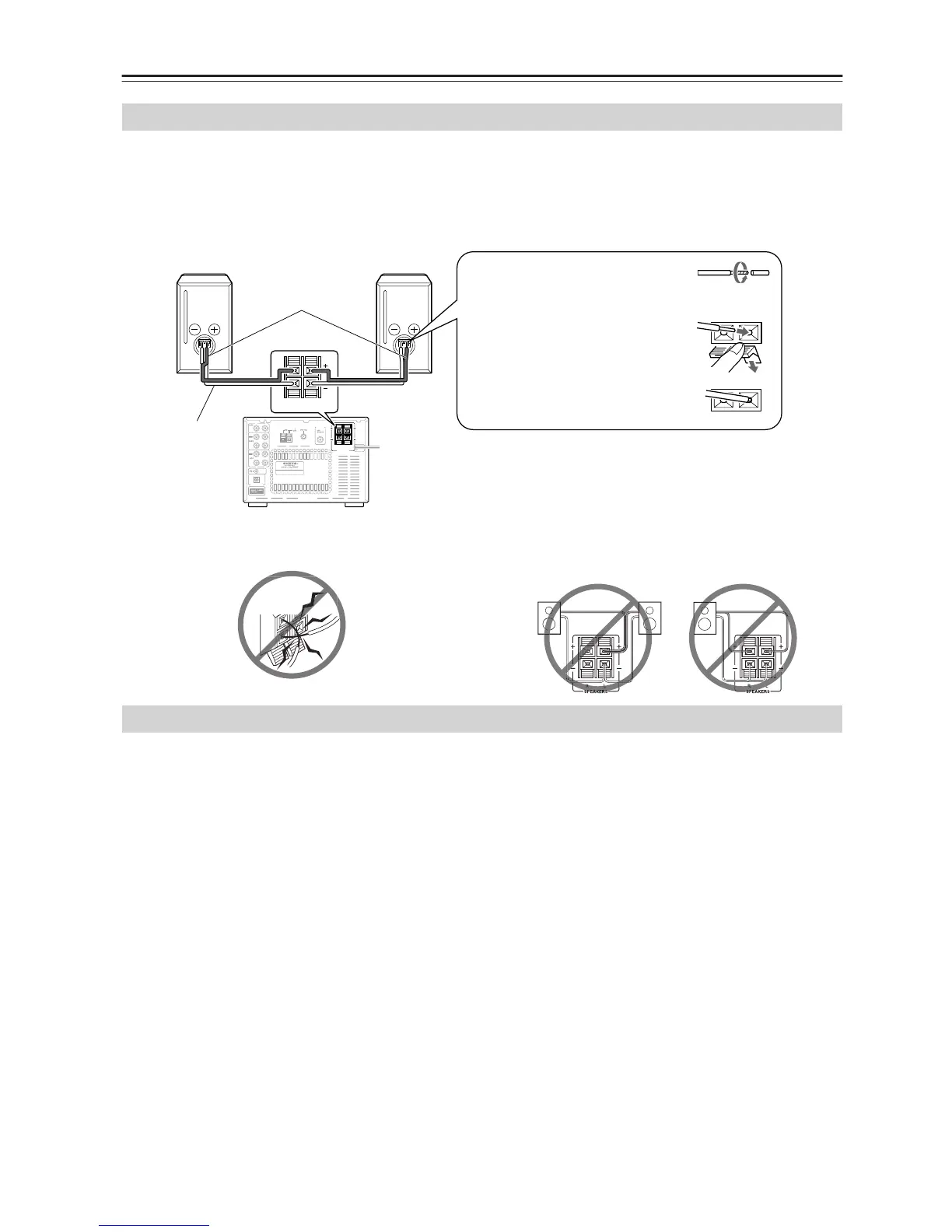

Connecting Speakers
• Connect the right channel speaker to the R speaker connector on the CD receiver, and the left channel speaker to the
L speaker connector.
• Connect the “+” connector on each speaker to the “+” connectors on the CD receiver, and connect the “–” connector
on each speaker to the “–” connectors on the CD receiver. Use the red wires of the speaker cables to connect the “+”
connectors.
• To prevent damage to circuits, never short-circuit the
positive (+) and negative (–) speaker wires.
• Do not connect the speaker cord to the L and R connec-
tors at the same time (i.e., 1). Do not connect more than
two speaker connectors to the same speaker (i.e., 2).
The sound quality a speaker system reproduces varies
greatly depending on room construction and area of the
room in which it is installed, as well as the location and
size of the furniture. For better-quality sound, observe
the following precautions.
• Placing the speaker system directly on the floor can
result in undesirable boom, that is, sound with
extremely heavy bass. Place each speaker on a speaker
stand, concrete blocks, bricks or a rigid bookshelf.
• High-quality bass sound cannot be obtained if the
speakers are not seated on a stable speaker stand or
other base.
• To obtain a deeper bass sound, mount the speakers on
lower speaker stands and place them in front of a wall
of sufficient rigidity.
• In many rooms, the furniture and walls affect the
reproduced sound quality. For stereo sound reproduc-
tion, placing the right and left speakers in the same
relative position produces the best results. If they are
placed in extremely different positions, the right- and
left- channel balance will be adversely affected.
• The ideal placement of the speaker system is as fol-
lows: Imagine an equilateral triangle and position the
right and left speakers on both ends of the base. The
ideal listening position is at or slightly to the rear of
the triangle apex.
• Glazed doors or surrounding walls in front of the
speaker system may resonate specific frequency
ranges due to reflected sound. To eliminate this reso-
nance, place some sound-absorbing material, such as
a thick curtain, in front of the doors or walls.
Tips:
• The speaker cabinet is made of wood and is therefore
sensitive to extreme temperatures and humidity. Avoid
placing the speakers in locations subject to direct sun-
light, or in smoky or humid places.
• Place the unit on a rigid, level surface.
Connecting the Speakers
SPEAKERS
PRE OUT
R
L
REMOTE
CONTROL
OPTICAL
IN
OUT
IN
IN
OUT
R
L
R L
DIGITAL OUT
ANTENNA
SPEAKERS
RL
1. Peel the insulation to expose the
core wire and twist the core wire.
2. Pull down the lever and insert
the tip of the speaker cable.
3. Release the lever to affix the
wire.
• Be sure to connect speakers that have an impedance of
4 ohms to 16 ohms. Connecting a speaker with an
impedance lower than 4 ohms may damage the
speaker.
Red wire
Right channel
speaker
Left channel
speaker
Speaker
cable
i.e., 1 i.e., 2
Placement

Onkyo CR-N7 Specifications

Power

power supply	AC 230–240 V, 50 Hz
power consumption	68 W
stand-by power consumption	0.3 W

Audio Inputs and Outputs

analog inputs	LINE, TAPE, HDD
digital outputs	Optical: 1
analog outputs	TAPE, HDD

Amplifier Specifications

power output	14 W + 14 W (8 Ω, 40 Hz–20 kHz THD, 0.4%)
dynamic power	26 W + 26 W (4 Ω, JEITA)
damping factor	25 (8 Ω)

Tuner Specifications

fm tuning frequency range	87.5 MHz–108 MHz
am tuning frequency range	522 kHz–1611 kHz
stereo separation	40 dB (1 kHz)

CD Specifications

frequency response	10 Hz–20 kHz
audio dynamic range	92 dB
thd (total harmonic distortion)	0.009 %

Weight and Dimensions

dimensions	205 W x 147 H x 356 D mm
weight	4.3 kg
