Onkyo CR-N7 User Manual

4

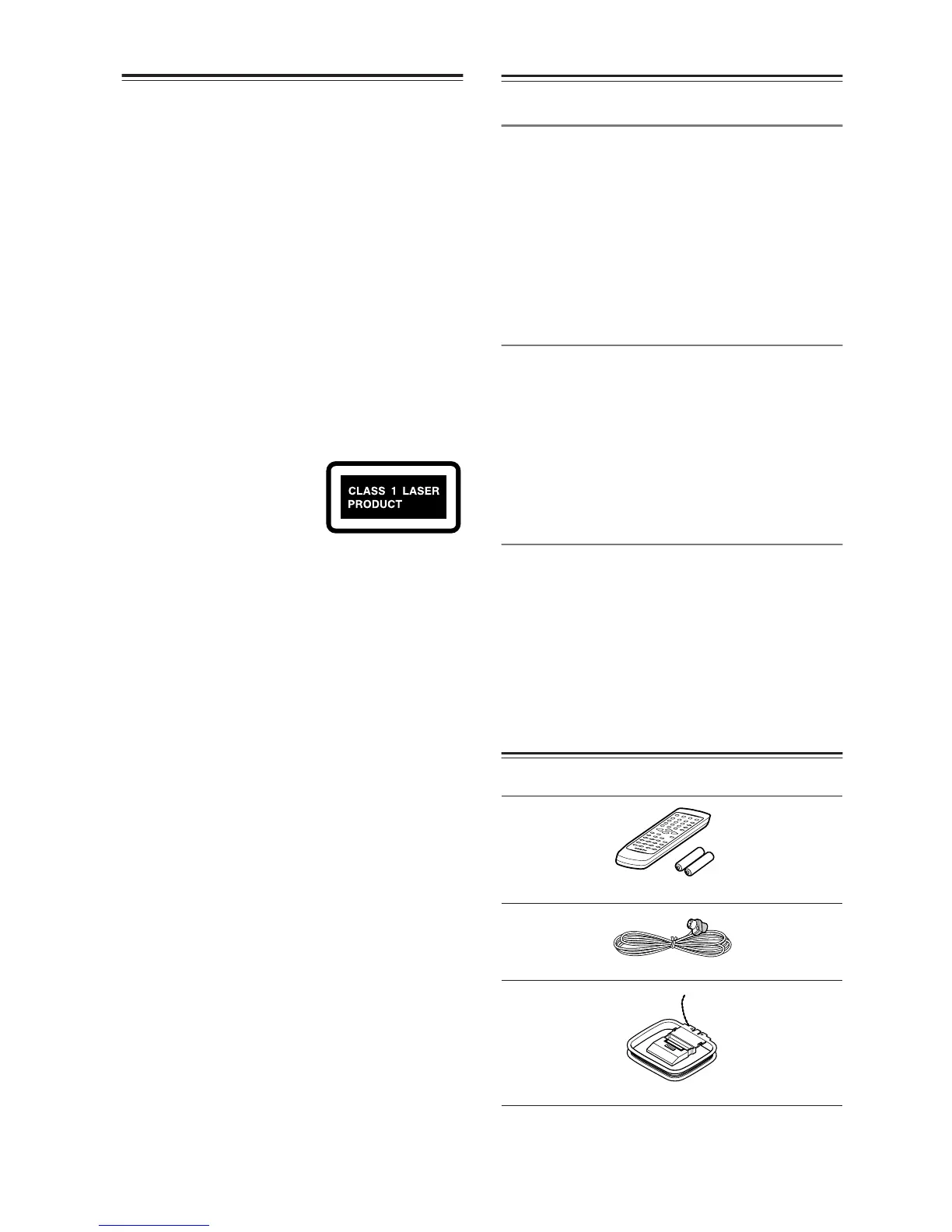

Precautions —Continued
This unit contains a semiconductor laser system and is
classified as a “CLASS 1 LASER PRODUCT”. So, to
use this model properly, read this Instruction Manual
carefully. In case of any trouble, please contact the store
where you purchased the unit.
To prevent being exposed to the laser beam, do not try to
open the enclosure.
DANGER:
VISIBLE AND/OR INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCK FAILED OR
DEFEATED. DO NOT STARE INTO BEAM.
CAUTION:
THIS PRODUCT UTILIZES A LASER. USE OF CON-
TROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECI-
FIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
The label on the right is
applied on the rear panel.
1. This unit is a CLASS 1
LASER PRODUCT and
employs a laser inside the cabinet.
2. To prevent the laser from being exposed, do not remove the
cover. Refer servicing to qualified personnel.
For British models
Replacement and mounting of an AC plug on the power
supply cord of this unit should be performed only by
qualified service personnel.
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this appa-
ratus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as fol-
lows:
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or
coloured red.
IMPORTANT
The plug is fitted with an appropriate fuse. If the fuse
needs to be replaced, the replacement fuse must
approved by ASTA or BSI to BS1362 and have the same
ampere rating as that indicated on the plug. Check for the
ASTA mark or the BSI mark on the body of the fuse.
If the power cord’s plug is not suitable for your socket
outlets, cut it off and fit a suitable plug. Fit a suitable fuse
in the plug.
Features
Amplifier
• 26 W/Ch into 4 ohms, 1kHz
• WRAT (Wide Range Amplifier Technology)
• High Current, Low Impedance Drive
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• 3 Audio Inputs and 2 Outputs
• Tone Control (Bass/Treble)
• 2 Step Super Bass Control
• Subwoofer Pre Out
CD Player
• Plays CDs, MP3 CDs, CD-Rs and CD-RWs
• Optical Digital Output
• Single-Bit D/A Converter
• 25 Track Programming
• CD: 3 Play Modes (Normal/Random/Memory)
• MP3 CD: 4 Play Modes (Normal/Random/Memory/
1 Group)
• Repeat Mode
Tuner & Others
• 4-Programmable Timer (Play or Rec/Once or Every)
• Sleep Timer
• 30 FM/AM Presets
• Automatic FM Scan Tuning
• Battery-Free Memory Backup
• Headphone Jack
• RI-Dock Compatible Remote Control
Supplied Accessories
Make sure you have the following accessories:
* In catalogs and on packaging, the letter at the end of the product
name indicates the color. Specifications and operations are the
same regardless of color.
Remote controller & two batteries (AA/R6)
Indoor FM antenna
AM loop antenna

Onkyo CR-N7 Specifications

Power

power supply	AC 230–240 V, 50 Hz
power consumption	68 W
stand-by power consumption	0.3 W

Audio Inputs and Outputs

analog inputs	LINE, TAPE, HDD
digital outputs	Optical: 1
analog outputs	TAPE, HDD

Amplifier Specifications

power output	14 W + 14 W (8 Ω, 40 Hz–20 kHz THD, 0.4%)
dynamic power	26 W + 26 W (4 Ω, JEITA)
damping factor	25 (8 Ω)

Tuner Specifications

fm tuning frequency range	87.5 MHz–108 MHz
am tuning frequency range	522 kHz–1611 kHz
stereo separation	40 dB (1 kHz)

CD Specifications

frequency response	10 Hz–20 kHz
audio dynamic range	92 dB
thd (total harmonic distortion)	0.009 %

Weight and Dimensions

dimensions	205 W x 147 H x 356 D mm
weight	4.3 kg
