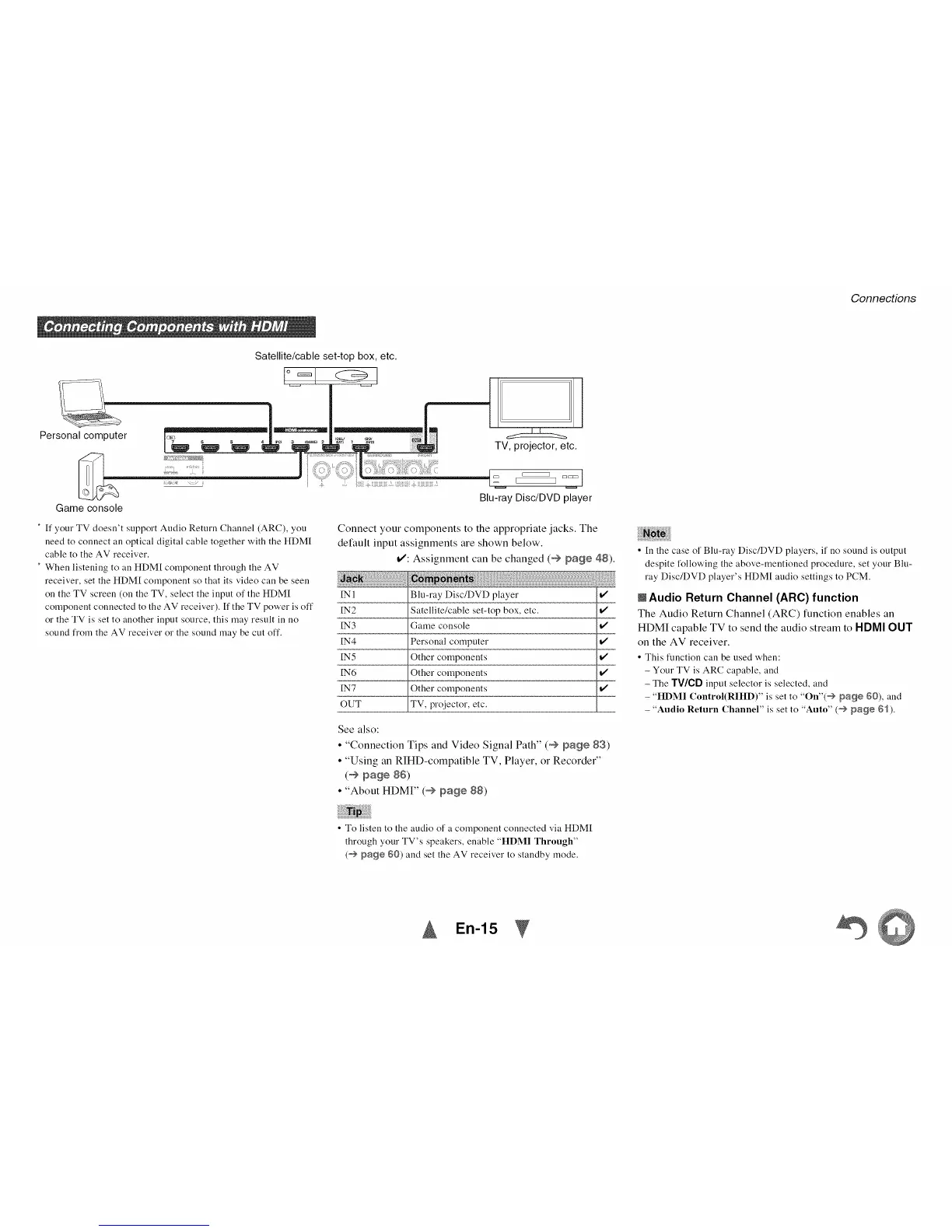

Satellite/cable set-top box, etc.
Personal computer
Game console
[
TV, projector, etc.
Blu-ray Disc/DVD player
* ff your TV doesn't support Audio Return Channel (ARC), you
need to connect all optical digital cable together with the HDM[
cable to the AV receiver.
* When listening to an HDM[ component through the AV
receiver, set the HDM[ component so that its video call be seen
on the TV screen (on the TV, select the input of the HDM[
component connected to the AV receiver), ff the TV power is off
or the TV is set to another input source, this may result in no
sound from the AV receiver or the sound may be cut off.
Connect your components to the appropriate jacks. The
default input assignments are shown below.
_/: Assignment can be changed (_ page 48).
INI
IN2
IN3
IN4
IN5
IN6
IN7
OUT
Blu-ray Disc/DVD player
Satellite/cable set-top box, etc.
Game console
Personal computer
Other components
Other components
Other components
TV, projector, etc.
See also:
• "Connection Tips and Video Signal Path" (_ page 83)
• "Using an RIHD-compatible TV, Player, or Recorder"
(_ page 86)
• "About HDMI" (_ page 88)
Connections
• In the case of Blu-ray Disc/DVD players, if no sound is output
despite following the above-mentioned procedure, set your Blu-
ray Disc/DVD player's HDMI audio settings to PCM.
N Audio Return Channel (ARC) function
The Audio Return Channel (ARC) function enables an
HDMI capable TV to send the audio stream to HDMI OUT
on the AV receiver.
• This function can be used when:
- Your TV is ARC capable, and
- The TV/CD input selector is selected, and
- "HDMI Control(RIHD)" is set to "On"(_ page 60), and
-"Audio Return Channel" is set to "Auto" (_ page 61).
• To listen to the audio of a component connected via HDMI
through your TV's speakers, enable "HDMI Through"
(_ page 60) and set the AV receiver to standby mode.
En-15
©©
