Audio components can be connected by using any of the
following audio connection formats: analog, optical,
coaxial, or HDMI.
When choosing a connection format, bear in mind that the
AV receiver does not convert digital input signals for
analog line outputs and vice versa.
If signals are present at more than one input, the inputs will
be selected automatically in the following order of priority:
HDMI, digital, analog.

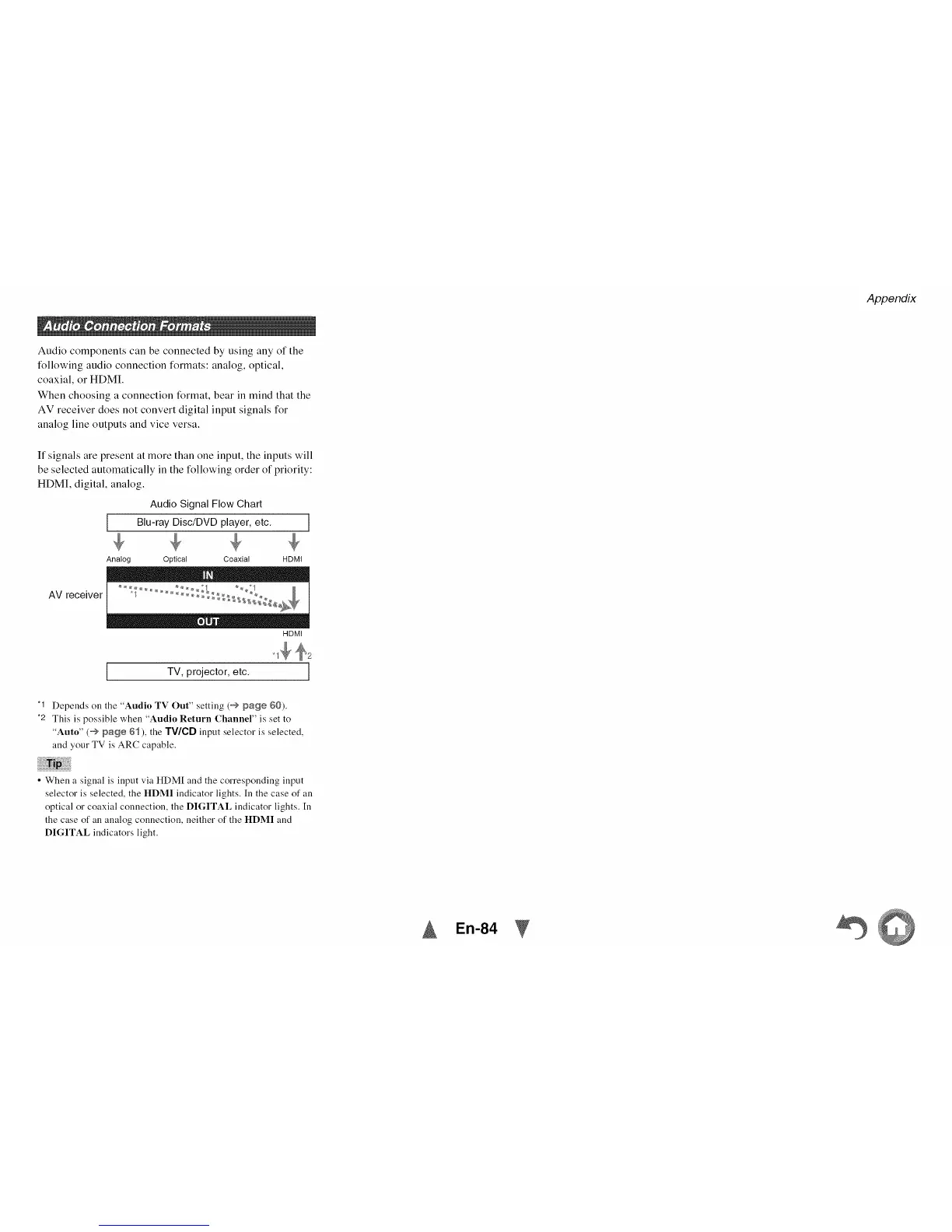

Audio Signal Flow Chart
Blu-ray Disc/DVD player, etc. I
AV receiver
Analog Optical Coaxial HDMI
HDMI
TV, projector, etc.
"1 Depends on the "Audio TV Out" setting (3 page 60).
*2 This is possible when "Audio Return Channel" is set to
"Auto" (3 page 61 ), the TV/CD input selector is selected,
and your TV is ARC capable.
• When a signal is input via HDM[ and the corresponding input
selector is selected, the HDMI indicator lights. In the case of an
optical or coaxial connection, the DI(;ITAL indicator lights. In
the case of all analog connection, neither of the HDMI and
DIGITAL indicators light.
