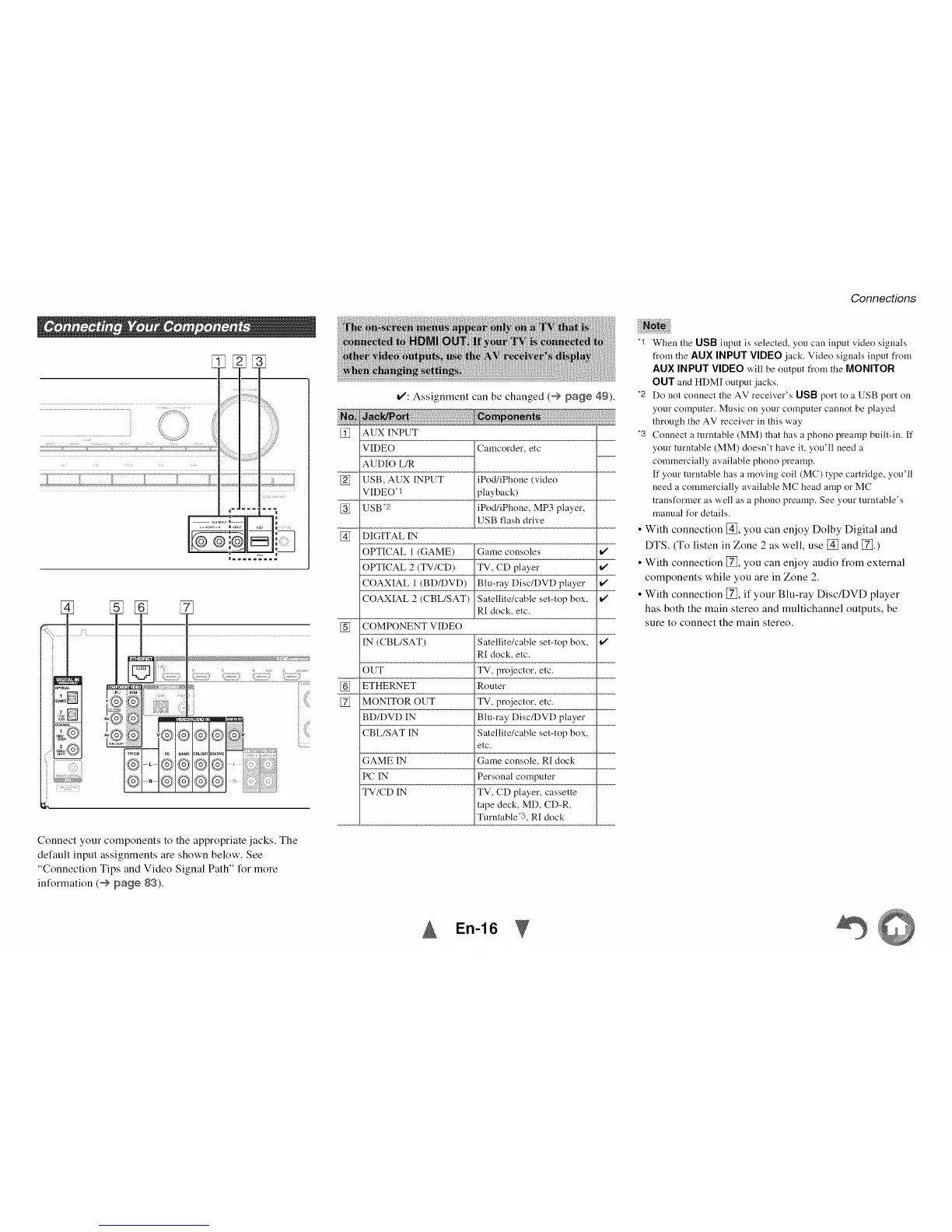

Connect your components to the appropriate jacks. The
default input assignments are shown below. See
"Connection Tips and Video Signal Path" for more
information (o page 83).
[]
_: Assignment can be changed (_ page 49).
AUX INPUT
VIDEO
AUDIO L/R
USB, AUX INPUT
VIDEO _
USB _2
deo
layer,
consoles
aYer
et-top box,
[]
[]
[] DIGITAL IN
OPTICAL 1 (GAME) 7
OPTICAL 2 (TV/CD) 7
COAXIAL 1 (BD/DVD) 7
COAXIAL 2 (CBL/SAT) 7
[] COMPONENT VIDEO
IN (CBL/SAT) Satellite/cable set-top box, .J
R[ dock, etc.
OUT TV, projector, etc.
ETHERNET Router
[] MONITOR OUT TV, projector, etc.
BD/DVD IN Blu-ray Disc/DVD player
CBL/SAT IN Satellite/cable set-top box,
etc.
GAME IN Game console, RI dock
PC IN Personal computer
TV/CD IN TV, CD player, cassette
tape deck, MD, CD-R,
Turntable _3, R[ dock
Connections
"1 When the USB input is selected, you can input video signals
from the AUX INPUT VIDEO jack. Video signals input from
AUX INPUT VIDEO will be output from the MONITOR
OUT and HDMI output jacks.
*2 Do not connect the AV receiver's USB port to a USB port on
your computer. Music on your computer cannot be played
through the AV receiver in this way
*3 Connect a turntable (MM) that has a phono preamp built-in, ff
your turntable (MM) doesn't have it, you'll need a
commercially available phono preamp.
ff your turntable has a moving coil (MC) type cartridge, you'll
need a commercially available MC head amp or MC
transformer as well as a phono preamp. See your turntable's
manual for details.
• With connection [], you can enjoy Dolby Digital and
DTS. (To listen in Zone 2 as well, use [] and [_.)
• With connection [_, you can enjoy audio from external
components while you are in Zone 2.
• With connection [_, if your Blu-ray Disc/DVD player
has both the main stereo and multichannel outputs, be
sure to connect the main stereo.
En-16
©©
